Description

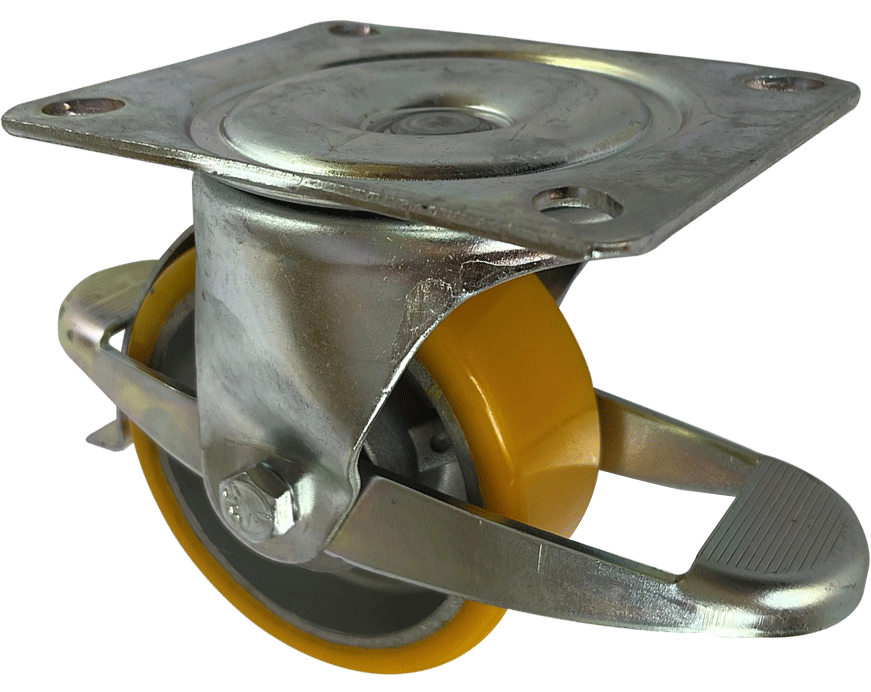

100mm Top Plate Swivel with Brake Castor with 105x80mm Bolt Hole Centres. The Castor wheel has a Polyurethane Tyre (94 Shore A) on an Aluminium Centre with Ball Bearings. The Load Capacity is 300kg using manual propulsion at 4km/h.
Key Specifications:
- Top Plate Size: 128x102mm
- Bolt Hole Centres: 100/105mm x 76/60mm
- Bolt Hole Size: 11.2mm (Suited to M10 Fixing Bolts)
- Overall Height: 125mm
- Castor Offset: 26mm
- Brake Style: Wheel Brake. When applied, the brake locks the castor wheel and the swivel head is still free to rotate
- Wheel Material: Polyurethane Tyre (94 Shore A) / Aluminium Centre
- Bearing Type: Ball Bearings
