Wheels
Keystone Castors & Wheels stocks the widest range of castor wheels suitable for most castor and industrial applications. We have been Castor & Wheel specialists since 1926. Whether you're looking for a replacement caster wheel or a bulk purchase of industrial wheels we have the knowledge, experience and stock availability to assis...t you in making the best choice.Browse Keystone wheels online for a Industrial wheel suitable for Material Handling Trolleys , Industrial carts, Sack Trucks , Pneumatic Wheel applications, V Groove Rail wheels, Flange Rail wheels, Machine Wheels and Drive Wheels or call one our our experienced Technical Sales team for help you make your selection.
Because we carry vast stock of caster and trolley wheels we can handle large orders and small orders from both domestic and business customers. Our UK Castor & Wheel stocks include many models. Including nylon, rubber tyre, polyurethane, cast iron, polypropylene tyre , pneumatic (inflatable), puncture proof wheels (flat free wheels). All these castor wheels can have various options for bearings: Roller, Ball or Plain Bearings.
About Caster Wheel Bearings
The type of bearing used in a castor wheel affects the running properties of it and therefore the mobility of the unit they are fitted to:
Plain Bore Bearings (Plain Bore)
This is the most economical type of bearing. In fact, there isn't one. The wheel turns around an axle tube. They are great if the equipment they are attached to does not have to move much and when it does without a great deal of weight on it. Under normal circumstances, they are maintenance free and corrosion resistant.
Revvo PT Designer industrial wheels are available with a keyway.
Roller Bearings
This type has a series of steel rollers within a cage. The rollers rotate between the axle tube and the wheel hub. Using these bearings means that the rolling resistance of the bearing is very small, even under heavy load. This type of bearing is the most commonly used especially for transportation equipment. They are robust and generally maintenance free. Please note, in stainless steel castors the rollers are stainless steel and in high temperature wheels, the cage is made from steel.
Ball Bearings
Castor wheel ball bearings consist of a stamped sheet metal housing enclosing an inner and outer ring. The ball bearings run between these two rings. This type of bearing has excellent running properties even under very heavy loads and at high speeds. Because the bearings are sealed, these bearings do not need to be lubricated. This is the engineers choice for apparatus castors and heavy duty casters in most applications. Read More
- Display 15 Products per page

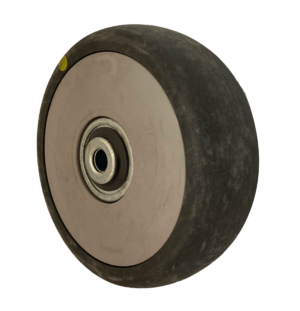

In Stock100mm Dark Grey Electro-Conductive Thermoplastic Wheel, 80kg (HPP100308X377012)
£5.78Sale!100mm dark grey electroconductive thermoplastic wh... Read Moreeel with 8mm precision ball bearings and a load capacity of 80kg. The tread width is 30mm and the hub length (the distance through the castor wheel's central bore) is 37mm.These castor wheels have an electric resistivity of <100.000 OhmBore: 8mmHub Length: 37mmLoad Capacity: 80kgWheel Diameter: 100mmWheel Tread Material: Electroconductive Thermoplastic RubberWheel Tread Width: 30mmWheel Type: Electroconductive Thermoplastic Rubber- In Stock
100mm Grey Electro-Conductive Thermoplastic Wheel, 80kg (100TPREC378)
£5.78Sale!100mm grey electroconductive thermoplastic polyure... Read Morethane wheel with 8mm precision ball bearing complete with thread guards. The load capacity of the wheel is 80kg and the tread width is 30mm.The tread has a 95 Shore A hardness and the hub length (the distance through the castor wheel's central bore) is 37mm. These castor wheels have an electric resistivity of 100.000 Ohm.Bearing Type: Roller BearingBore: 8mmLoad Capacity: 80kgWheel Diameter: 100mmWheel Tread Material: Electro conductive injected polyurethaneWheel Tread Width: 30mmWheel Type: Electroconductive Thermoplastic Polyurethane - In Stock
100mm Polyurethane Tyre / Cast Iron Castor Wheel, 20mm Ball bearing, 350kg (KMW100PCBJ)
£32.76100mm Polyurethane Tyre Castor Wheel with a Cast I... Read Moreron Centre and 20mm Ball Bearings (6204-2RS), 40mm Tread width and 50mm Hub Length (the distance through the central bore). This wheel is rated to 350kgBearing Type: Roller BearingBore: 20mmLoad Capacity: 350kgWheel Diameter: 80mmWheel Tread Material: Polyurethane TyreWheel Tread Width: 30mmWheel Type: Polyurethane Tyre / Cast Iron Centre - In Stock
100mm White Nylon Wheel, 12mm Roller Bearing, 150kg (MVW100NY1B)
£6.24100mm Nylon Castor Wheel with 12mm Roller Bearing,... Read More 36mm Tread Width and 40mm Hub Length (the distance through the central bore). The load Load Capacity is 150kg.The wheel comes with thread guards, an M12x36mm Needle Roller Bearing, a Steel Tube (12mm OD X 8mm ID x 40mm Length) and a 8mm x 59mm Bolt & nut.Without the castor wheel's fittings, the plain bore is 20mm.Bearing Type: Roller BearingBore: 12mmLoad Capacity: 150kgWheel Diameter: 100mmWheel Tread Material: NylonWheel Tread Width: 36mmWheel Type: Nylon - In Stock
100mm White Nylon Wheel, 20mm Plain Bore, 150kg (MVW100NY0B)
£6.46100mm Nylon Castor Wheel with 20mm Smooth Plain Bo... Read Morere, 36mm Tread Width and 40mm Hub Length (the distance through the central bore). The load Load Capacity is 150kg.Bearing Type: Plain BoreBore: 20mmLoad Capacity: 150kgWheel Diameter: 100mmWheel Tread Material: NylonWheel Tread Width: 36mmWheel Type: Nylon - In Stock
125mm Blue Rubber Tyre / Nylon Centre Wheel, 8mm ball bearing, 150kg (7335940)
£13.81125mm Blue Rubber Tyre on a Black Nylon Centre Cas... Read Moretor Wheel (Colson Performa) with a 32mm Tread Width, 45mm Hub Length and single 8mm Ball Bearing.This wheel comes with 2 plastic thread guards to fit the 6202RS precision bearing. Load Capacity = 150kgBearing Type: Roller BearingBore: 8mmLoad Capacity: 150kgWheel Diameter: 125mmWheel Tread Material: Rubber TyreWheel Tread Width: 32mmWheel Type: Blue Rubber Tyre / Nylon Centre - In Stock
150mm Polyurethane Tyre / Nylon Centre Wheel, 20mm Roller Bearing, 600kg (WPN6KRB20)
£24.29150mm Red Polyurethane Tyre on a White Nylon Centr... Read Moree wheel (Flexello). This castor wheel has a tread width of 45mm and a hub length (the distance through the central bore) of 58mm.The wheel is fitted with a 20mm Needle Roller Bearing to reduce the rolling resistance.With a load capacity of 600kg at 4km/h (walking speed) using manual propulsion, this is one of the strongest polyurethane tyre / nylon centre wheels available.Bearing Type: Roller BearingBore: 20mmLoad Capacity: 600kgWheel Diameter: 150mmWheel Tread Material: Polyurethane TyreWheel Tread Width: 45mmWheel Type: Polyurethane Tyre / Nylon Centre - In Stock
150mm Stair Climber with Rubber Tyre / Metal Centre Wheels, 140kg Load (STAIRCLIMBER150)
£20.80Stair Climber Castor Units are made up of three ru... Read Morebber tyre, metal centre wheels in a triangular formation housed in a 3 point 'star' shaped steel frame with a central bore fitted with a quality 20mm needle roller bearing. They can replace existing wheels on a sack truck with a 20mm axle. The hub length (distance through the central bore) of the unit is 60mm.Stair climbers are used on sack trucks to help move heavy loads up and down stairs. The load capacity of this product is 140kg.Bearing Type: Roller BearingBore: 20mmLoad Capacity: 140kgWheel Diameter: 3 x 150mmWheel Tread Material: Rubber TyreWheel Tread Width: 40mmWheel Type: Rubber Tyre / Metal Centre - In Stock

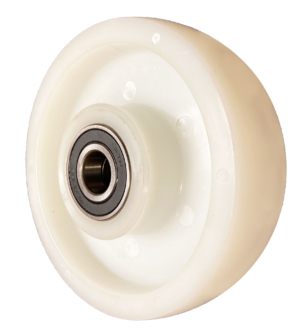

150mm White Nylon Wheel, 20mm Ball Bearing, 750kg (HPWH150NY2)
£40.69150mm White Nylon Caster Wheel with a 45mm Tread W... Read Moreidth, 58mm Bore (the distance through the central hole) and 20mm Ball Bearings. Load Capacity = 750kgBearing Type: Roller BearingBore: 20mmHub Length: 58mmLoad Capacity: 750kgWheel Diameter: 150mmWheel Tread Material: NylonWheel Tread Width: 45mmWheel Type: Nylon - In Stock
200mm Flexello Polyurethane Tyre Wheel, 20mm Roller Bearing, 650kg (WPN8KRB20)
£36.29200mm Castor Wheel with Red Polyurethane Tyre on a... Read More White Nylon centre. 50mm Tread Width, 58mm Hub Length and 20mm Roller Bearing. Load Capacity = 650KgBearing Type: Ball bearingBore: 20mmLoad Capacity: 650kgWheel Diameter: 200mmWheel Tread Material: Polyurethane TyreWheel Tread Width: 50mmWheel Type: Polyurethane Tyre / Nylon Centre - In Stock

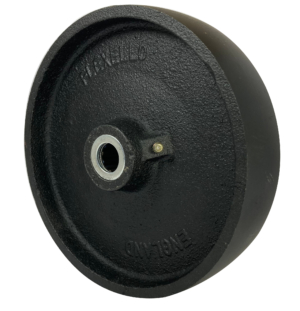

200mm High Temperature Cast Iron Wheel, 20mm Steel Roller Bearing, 1270kg (WCI8RBM20HT)
£37.97200mm High Temperature Cast Iron Castor Wheel with... Read More 45mm Tread width, 20mm Steel Roller Bearing and 60mm Hub Length (the distance through the central bore). This wheel has a steel caged roller bearing and bearing retainer enabling the wheel to withstand high temperatures of up to 200 degrees Celsius. This is a heavy duty wheel with a load capacity of this wheel is 1,270kg.Cast Iron Castor Wheels are a great choice for many rough service applications because they are strong, shock resistant and have a long working life. They have a very low tractive resistance which aids in the ease of movement and are not susceptible to picking up swarf and other floor debris which may hamper the performance of other Castor Wheel materials.Bearing Type: Roller BearingBore: 20mmLoad Capacity: 1270kgWheel Diameter: 200mmWheel Tread Material: Cast IronWheel Tread Width: 45mmWheel Type: High Temperature Cast Iron (200 degree Celsius) - In Stock

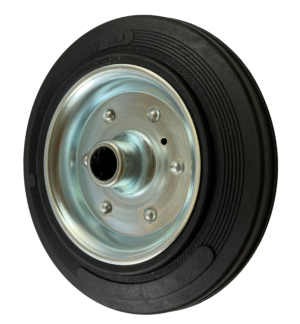

250mm Black Rubber Tyre / Pressed Steel Centre Wheel, 25mm Roller Bearing, 300kg (AW250RMB25)
£25.43250mm Black Solid Rubber Tyre on a Pressed Steel C... Read Moreentre Wheel with 25mm Roller Bearing, 60mm Tread Width and 75mm Hub length. Load Capacity = 300kgBearing Type: Roller BearingBore: 25mmLoad Capacity: 300kgWheel Diameter: 250mmWheel Tread Material: Rubber TyreWheel Tread Width: 60mmWheel Type: Black Rubber Tyre / Pressed Steel Centre - In Stock

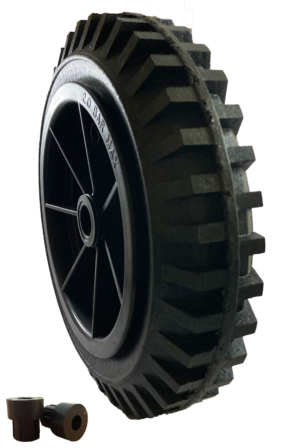

330mm Solid Rubber Tyre Wheelbarrow Wheel | Black Polypropylene Centre, 250kg, 25.4mm – 13mm Bore (WBSW330P13)
£23.05330mm diameter solid rubber wheelbarrow wheel with... Read More a black polypropylene (Plastic) centre for heavy duty applications. This heavy duty wheel is supplied with two reducing bushes that can be inserted into the 25.4 (1 inch) smooth plain bore to reduce the 25.4mm bore to 13mm. These bushes extend the wheel's hub length (distance through the wheel's central bore) from 66mm to 98mm.The tyre is made from solid rubber and has a much harder feel than a pneumatic wheel. Being solid rubber, it cannot puncture making it a great choice for environments where nails or other sharp objects are present.When replacing your wheelbarrow's front wheel, it is advised that you remove the wheel from the wheelbarrow and check the shaft size and the hub length (the distance through the central bore) before purchasing. If you have any doubts, please do not hesitate to call us or send us an email for assistance.Bore: 25.4mm to 13mmHub Length: 66mm to 98mmLoad Capacity: 250kgWheel Diameter: 330mmWheel Tread Material: Solid Rubber TyreWheel Tread Width: 70mmWheel Type: Black Rubber tyre / Black Polypropylene Centre - In Stock
Castor Wheel 100mm | Black Elastic Rubber Tyre / Aluminium Centre, 160kg, 15mm Ball bearing (AW100EAB)
£12.79100mm Rubber Tyre (Black Elastic Rubber) Castor... Read More Wheel on a Aluminium Core with 15mm Ball bearing, 40mm Tread Width and 40mm Hub Length (the distance through the central bore). Load Capacity = 160kg
Elastic Rubber is a special rubber compound that offers a higher load capacity than standard rubber tyres.
Bearing Type: Ball bearingBore: 15mmHub Length: 40mmLoad Capacity: 160kgWheel Diameter: 100mmWheel Tread Material: Rubber TyreWheel Tread Width: 40mmWheel Type: Black Elastic Rubber Tyre / Aluminium Centre - In Stock
Castor Wheel 100mm | Black Rubber Tyre / Metal Centre Centre, 70kg, 12mm Roller Bearing (KW100RMB)
£4.48100mm Black Rubber Tyred Wheel on a Pressed Steel ... Read MoreCentre with 12mm Roller Bearing. Load Capacity =70kgBore: 12mmHub Length: 44.4mmLoad Capacity: 70kgWheel Diameter: 100mmWheel Tread Material: Rubber TyreWheel Tread Width: 37mmWheel Type: Black Rubber Tyre / Metal Centre Centre
