- Display 15 Products per page
-
In Stock100mm Shock Absorbing Fixed Castor, 100kg Capacity | Polyurethane Tyre Wheel (GDS10075RF)
£82.73100mm Shock Absorbing Fixed Castor with 78mm x 78m ... Read Morem 4-hole Top Plate with 58mm x 58mm Bolt Hole spacings each fixing hole drilled to 7mm, The Polyurethane tyre on Aluminium Centre is fitted with precision ball bearings, This caster has a load capacity of 100kg.The shock absorbing function of this castor means that the overall height can vary by 20mm. The casters height without load is 160mm and this reduces incrementally by up to 20mm as load increases (see image 2 - GDS100 Curve) and fully compressed with a load of 75kg. -
In Stock100mm Shock Absorbing Swivel Castor With Brake, 100kg Capacity | Polyurethane Tyre Wheel, Ball bearing (GDS100B75SF)
£92.28100mm Shock Absorbing Swivel with Wheel Brake Cast ... Read Moreor which locks only the wheel when applied allowing the swivel head to rotate freely. The Top Plate measures 78mm x 78mm with 58mm x 58mm Bolt Hole spacings each fixing hole drilled to 7mm (to suit a 6mm fixing bolt). The Polyurethane tyre on Aluminium Centre is fitted with precision ball bearings. This caster has a load capacity of 100kg. The shock absorbing function of this castor means that the overall height can vary by 20mm. The casters height without load is 160mm and this reduces incrementally by up to 20mm as load increases (see image 2 - GDS100 Curve) and fully compressed with a load of 75kg. Furthermore, the castor's offset will also vary from 45mm (at its full height of 160mm) to 53mm as the load increases. -
In Stock100mm Shock Absorbing Swivel Castor, 100kg Capacity | Polyurethane Tyre Wheel (GDS10075SF)
£88.42100mm Shock Absorbing Swivel Castor with 78mm x 78 ... Read Moremm 4-hole Top Plate with 58mm x 58mm Bolt Hole spacings each fixing hole drilled to 7mm, The Polyurethane tyre on Aluminium Centre is fitted with precision ball bearings, This caster has a load capacity of 100kg. The shock absorbing function of this castor means that the overall height can vary by 20mm. The casters height without load is 160mm and this reduces incrementally by up to 20mm as load increases (see image 2 - GDS100 Curve) and fully compressed with a load of 75kg. Furthermore, the castor's offset will also vary from 45mm (at its full height of 160mm) to 53mm as the load increases. -
In Stock130mm Shock Absorbing Fixed Castor, 350kg Capacity | 130mm Polyurethane Tyre Wheel (GDS13075RF)
£143.51130mm Shock Absorbing Fixed Castor (GDS130ARFHUD) ... Read Morewith special rubber shock absorbing pad. Key Specifications: Top Plate Size: 95x95mm Bolt Hole Centres: 70x70mm Overall Height: 200mm - 30mm Spring Compression Castor Offset: 36 ~ 50mm Wheel Material: Polyurethane tyre on an aluminium centre Bearing Type: Precision Ball Bearings Tyre Hardness: 95 Shore A Surface Treatment: Powder coating Load Rating: 350kg Note: Because of the spring in the rubber shock absorbing pad, the overall height unloaded is 200mm as the load increases, the compression of the rubber pad incrementally reduces the overall height by up to 30mm (see image 2 - GDS130 Compression Curve). The castor is fully compressed at 120kg. The shock absorbing movement also means that the castors off set can range from 36mm to 50mm. -

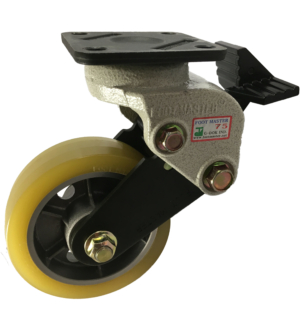

In Stock130mm Shock Absorbing Swivel Castor With Brake, 350kg Capacity | 130mm Polyurethane Tyre Wheel (GDS130B75SF)
£152.68130mm Shock Absorbing Swivel Castor with Brake (GD ... Read MoreS130BSFHUD) with special rubber shock absorbing pad. This castor has a double ball race swivel head with specially hardened bearing seat for durability. Key Specifications: Top Plate Size: 95x95mm Bolt Hole Centres: 70x70mm Overall Height: 200mm - 30mm Spring Compression Brake Style: Wheel Brake (When applied, the wheel is locked while the swivel head is free to rotate) Castor Offset: 36 ~ 50mm Wheel Material: Polyurethane tyre on an aluminium centre Bearing Type: Precision Ball Bearings Tyre Hardness: 95 Shore A Surface Treatment: Powder coating Load Rating: 350kg Note: Because of the spring in the rubber shock absorbing pad, the overall height unloaded is 200mm as the load increases, the compression of the rubber pad incrementally reduces the overall height by up to 30mm (see image 2 - GDS130 Compression Curve). The castor is fully compressed at 120kg. The shock absorbing movement also means that the castors off set can range from 36mm to 50mm. -
In Stock130mm Shock Absorbing Swivel Castor, 350kg Capacity | 130mm Polyurethane Tyre Wheel (GDS13075SF)
£147.49130mm Shock Absorbing Swivel Castor (GDS130ASFHUD) ... Read More with special rubber shock absorbing pad. This castor has a double ball race swivel head with specially hardened bearing seat for durability. Key Specifications: Top Plate Size: 95x95mm Bolt Hole Centres: 70x70mm Overall Height: 200mm - 30mm Spring Compression Castor Offset: 36 ~ 50mm Wheel Material: Polyurethane tyre on an aluminium centre Bearing Type: Precision Ball Bearings Tyre Hardness: 95 Shore A Surface Treatment: Powder coating Load Rating: 350kg Note: Because of the spring in the rubber shock absorbing pad, the overall height unloaded is 200mm as the load increases, the compression of the rubber pad incrementally reduces the overall height by up to 30mm (see image 2 - GDS130 Compression Curve). The castor is fully compressed at 120kg. The shock absorbing movement also means that the castors off set can range from 36mm to 50mm. -
In Stock150mm Shock Absorbing Fixed Castor With Brake, 360kg Capacity | Polyurethane Tyre Wheel, Ball bearing (KGDSP150BRFMUD)
Original price was: £119.80.£63.98Current price is: £63.98. Sale!150mm Shock absorbing (14mm Compression) fixed cas ... Read Moretor with Brake and Polyurethane Tyred Aluminium Wheel. Load Capacity = 360kgFor the compression performance, please see the image for the curve by clicking on the thumbnail image above. To use this curve, please calculate the weight being carried by this castor and divide that by the one less than the number of castors on your equipment, So if you have a trolley using 4 of these castors and the total weight being carried is 500kg, then the compression of the rubber pad is the reading given on the y axis at 167kg (500kg / 3 = 167kg) which is between 11 and 12mm. -
In Stock150mm Shock Absorbing Fixed Castor, 360kg Capacity | Polyurethane Tyre Wheel, Ball bearing (KGDSP150ARFMUD)
Original price was: £105.79.£56.50Current price is: £56.50. Sale!150mm Shock absorbing (14mm Compression) fixed cas ... Read Moretor and Polyurethane Tyred Aluminium Wheel. Load Capacity = 360kgFor the compression performance, please see the image for the curve by clicking on the thumbnail image above. To use this curve, please calculate the weight being carried by this castor and divide that by the one less than the number of castors on your equipment, So if you have a trolley using 4 of these castors and the total weight being carried is 500kg, then the compression of the rubber pad is the reading given on the y axis at 167kg (500kg / 3 = 167kg) which is between 11 and 12mm. -

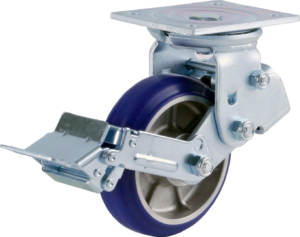

In Stock150mm Shock Absorbing Swivel Castor With Brake, 360kg Capacity | Polyurethane Tyre Wheel, Ball bearing (KGDSP150BSFMUD-USA)
Original price was: £142.93.£67.49Current price is: £67.49. Sale!150mm Shock absorbing (14mm Compression) Swivel an ... Read Mored Brake castor with Imperial (USA) measurements and Polyurethane Tyred Aluminium Wheel. Load Capacity = 360kg For the compression performance, please see the image for the curve by clicking on the thumbnail image above. To use this curve, please calculate the weight being carried by this castor and divide that by the one less than the number of castors on your equipment, So if you have a trolley using 4 of these castors and the total weight being carried is 500kg, then the compression of the rubber pad is the reading given on the y axis at 167kg (500kg / 3 = 167kg) which is between 11 and 12mm. Key Specifications: Top Plate Size: 158x114mm Bolt Hole Centres: 133x86mm / 125x62mm Bolt Hole Size: 13mm Overall Height: 202mm - 14mm (compression) Brake Style: Wheel Brake (swivel head is free to rotate when applied) Castor Offset: 45mm ~ 53mm Wheel Material: Blue Polyurethane Tyre on an Aluminium Centre Tyre Hardness: 95 Shore A Bearings: Precision Ball Bearings Load Rating: 360kg (using manual propulsion at 4km/h) -
In Stock
150mm Shock Absorbing Swivel Castor With Brake, 360kg Capacity | Polyurethane Tyre Wheel, Ball bearing (KGDSP150BSFMUD)
Original price was: £142.93.£76.33Current price is: £76.33. Sale!150mm Shock absorbing (14mm Compression) Swivel ca ... Read Morestor with Brake and Polyurethane Tyred Aluminium Wheel. Load Capacity = 360kgFor the compression performance, please see the image for the curve by clicking on the thumbnail image above. To use this curve, please calculate the weight being carried by this castor and divide that by the one less than the number of castors on your equipment, So if you have a trolley using 4 of these castors and the total weight being carried is 500kg, then the compression of the rubber pad is the reading given on the y axis at 167kg (500kg / 3 = 167kg) which is between 11 and 12mm. -
In Stock150mm Shock Absorbing Swivel Castor, 360kg Capacity | Polyurethane Tyre Wheel, Ball bearing (KGDSP150ASFMUD-USA)
Original price was: £122.63.£57.89Current price is: £57.89. Sale!150mm Shock absorbing (14mm Compression) Swivel ca ... Read Morestor with imperial (USA) measurements and Polyurethane Tyred Aluminium Wheel. Load Capacity = 360kg For the compression performance, please see the image for the curve by clicking on the thumbnail image above. To use this curve, please calculate the weight being carried by this castor and divide that by the one less than the number of castors on your equipment, So if you have a trolley using 4 of these castors and the total weight being carried is 500kg, then the compression of the rubber pad is the reading given on the y axis at 167kg (500kg / 3 = 167kg) which is between 11 and 12mm. Key Specifications: Top Plate Size: 158x114mm Bolt Hole Centres: 133x86mm / 125x62mm Bolt Hole Size: 13mm Overall Height: 202mm - 14mm (compression) Castor Offset: 45mm ~ 53mm Wheel Material: Blue Polyurethane Tyre on an Aluminium Centre Tyre Hardness: 95 Shore A Bearings: Precision Ball Bearings Load Rating: 360kg (using manual propulsion at 4km/h) -
In Stock
150mm Shock Absorbing Swivel Castor, 360kg Capacity | Polyurethane Tyre Wheel, Ball bearing (KGDSP150ASFMUD)
Original price was: £122.63.£65.49Current price is: £65.49. Sale!150mm Shock absorbing (14mm Compression) Swivel ca ... Read Morestor and Polyurethane Tyred Aluminium Wheel. Load Capacity = 360kgFor the compression performance, please see the image for the curve by clicking on the thumbnail image above. To use this curve, please calculate the weight being carried by this castor and divide that by the one less than the number of castors on your equipment, So if you have a trolley using 4 of these castors and the total weight being carried is 500kg, then the compression of the rubber pad is the reading given on the y axis at 167kg (500kg / 3 = 167kg) which is between 11 and 12mm. -

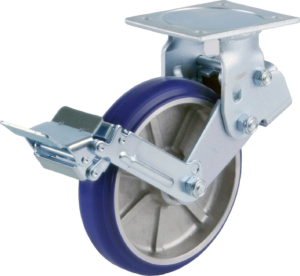

In Stock200mm Shock Absorbing Fixed Castor With Brake, 450kg Capacity | Polyurethane Tyre Wheel, Ball bearing (KGDSP200BRFMUD)
Original price was: £135.58.£72.40Current price is: £72.40. Sale!200mm Shock absorbing (15mm Compression) fixed cas ... Read Moretor with Brake and Polyurethane Tyre on an Aluminium Centre Wheel. Load Capacity = 450kgFor the compression performance, please see the image for the curve by clicking on the thumbnail image above. To use this curve, calculate the weight being carried by this castor and divide that by the one less than the number of castors on your equipment.For a typical example, with a trolley or machinery using 4 of these castors please divide the total weight by 3. If the total weight being carried is 500kg then the relevant reading for the compression of the rubber pad on the chart's 'Y' axis is given at 167kg (500kg / 3 = 167kg) along the 'X' axis, which is just over 10mm. -
In Stock200mm Shock Absorbing Fixed Castor, 400kg Capacity | Polyurethane Tyre Wheel, Ball bearing (GSST200WRF)
Original price was: £551.88.£214.33Current price is: £214.33. Sale!200mm Shock Absorbing Fixed Castor with 30mm compr ... Read Moreession. 160x120mm Top Plate with 140/110x105/80mm slotted bolt holes. Polyurethane Tyre on an Aluminium Centre Wheel fitted with Ball Bearings. Power Towable: Max Load at 10km/h = 500kg Max Load at 20km/h = 400kg The special rubber pad absorbs shocks like a sponge to largely reduce external shocks coming from uneven floors to prevent damage to the products and allows for 30mm compression / shock absorption. The castor's overall height given is when the castor is not under any load. -

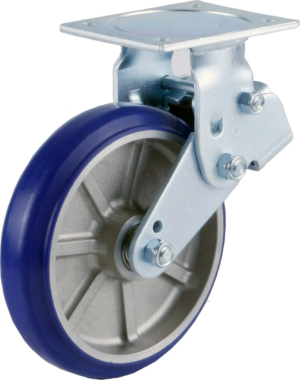

In Stock200mm Shock Absorbing Fixed Castor, 450kg Capacity | Polyurethane Tyre Wheel, Ball bearing (KGDSP200ARFMUD)
Original price was: £121.89.£65.09Current price is: £65.09. Sale!200mm Shock absorbing (15mm Compression) fixed cas ... Read Moretor and Polyurethane Tyred Aluminium Wheel. Load Capacity = 450kgFor the compression performance, please see the image for the curve by clicking on the thumbnail image above. To use this curve, please calculate the weight being carried by this castor and divide that by the one less than the number of castors on your equipment, So if you have a trolley using 4 of these castors and the total weight being carried is 500kg, then the compression of the rubber pad is the reading given on the y axis at 167kg which is just over 10mm.
