Flanged WheelsFlanged wheel range of single flange cast iron wheels for use on rails. Keystone Castors & Wheels offer a premium range and a standard range of Flanged wheel.
The premium range uses very high quality, close grained casting of grey iron material that is often described as 'semi-steel' to BSEN1561. Our standard range uses... standard cast iron.
Both ranges of flanged wheels are coated with a clear resin shellac for protection against the elements.
Cast iron single flange wheels combine strength and shock resistance with long life and economy. Read More

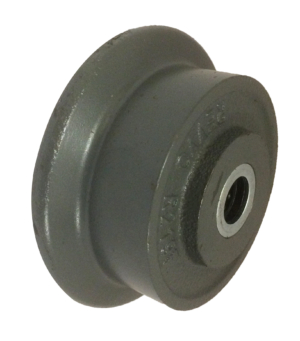

- In Stock£35.11100mm Single Flanged Cast Iron Wheel with 20mm Bal... Read Morel Bearings, 29mm Tread Width and 58mm Hub Length . Load Capacity = 250kgBore: 20mmHub Length: 57mmLoad Capacity: 250kgWheel Diameter: 100mmWheel Tread Material: Cast IronWheel Tread Width: 29mmWheel Type: Cast Iron

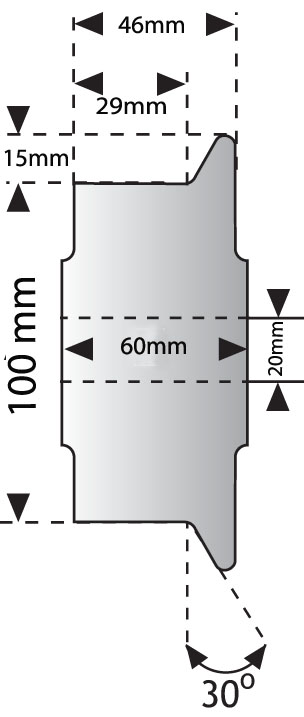

- In Stock£57.97100mm Revvo Heavy Duty Single Flanged Cast Iron Wh... Read Moreeel With 20mm Roller Bearing. The flange has a 30o angle and its height is 14mm and the tread width measures 29mm. The total width of the wheel (including the flange) is 46mm. The hub length (distance through the central bore) is 60mm. The wheel is rated to 800kg.Revvo cast iron Flanged and Grooved wheels are manufactured from close grained casting to BSEN1561 and sometimes described as 'semi-steel'. This gives this wheel an exception load capacity.Bearing Type: Roller BearingBore: 20mmDuty: HeavyHub Length: 60mmLoad Capacity: 800kgWheel Diameter: 100mmWheel Tread Material: Cast IronWheel Tread Width: 29mmWheel Type: Flanged Cast Iron
- In Stock£44.28150mm Flanged (90 degree parallel tread) Cast Iron... Read More Wheel with 20mm Ball Bearing. Load Capacity = 900kgBore: 20mmHub Length: 57mmLoad Capacity: 900kgWheel Diameter: 150mmWheel Tread Material: Cast IronWheel Tread Width: 45mmWheel Type: Cast Iron
- In Stock£54.22150mm Revvo Cast Iron Flanged wheel with 90parallel tread and 20mm Ball Bearings. Revvo Cast Iron wheels are manufactured from close grain casting sometime described as 'semi steel' to BSEN1561, This enables a very high load capacity of 1,000kg per wheel.The Hub Length (distance through the central bore) is 57mm and the tread width is 35mm with a flange groove of 14mm. The wheel is finished with a clear resin shellac coating. Ideal for rail use.Revvo Cast iron Flanged wheels share the same characteristics of other cast iron wheels combining strength and shock resistance with long life and economy. They have a very low tractive resistance are are a great choice when ease of movement is required.Bearing Type: Ball bearingBore: 20mmDuty: HeavyHub Length: 57mmLoad Capacity: 1000kgWheel Diameter: 150mmWheel Tread Material: Cast IronWheel Tread Width: 35mmWheel Type: Parallel Tread
- In Stock£30.59150mm Single Flange Heavy Duty Cast Iron Wheel (Re... Read Morevvo Brand) with a Load Capacity of 1,000kg. This wheel has a 90o Flange that is 14mm high. The tread is 35mm with the total width (including the flange) being 45mm. The hub length (the distance through the central bore) is 60mm and houses a 20mm roller bearing. It is finished with a clear resin shellac.The single flanged wheel is for rail used. Cast Iron combine strength, durability and shock resistance with long life and economy. It has very very low tractive resistance and is a great choice where ease of movement in needed.Bearing Type: Roller BearingBore: 20mmDuty: HeavyHub Length: 60mmLoad Capacity: 1000kgWheel Diameter: 150mmWheel Tread Material: Cast IronWheel Tread Width: 35mmWheel Type: Parallel Tread
- In Stock£45.86
55mm Single Flanged Steel Wheel With M16 Stub A... Read Morexle made from Mild Steel Grade 2062 . Load Capacity = 130KgLoad Capacity: 130kgWheel Diameter: 55mmWheel Type: Single Flanged Steel Wheel with Steel Stub Axle
