V-Grooved Wheels
V-grooved cast iron wheels are specialised industrial components. They are designed primarily for applications requiring precise directional control and stability. The "V" groove allows it to run on a corresponding track or rail. Common uses include:- Guided Material Handling: The V-grooved cast ir...on wheels are often used in material handling systems; particularly, where heavy loads need to be guided along a fixed path. The V-groove fits over a corresponding track, ensuring the wheel stays aligned.
- Sliding Doors and Gates: These wheels are used in systems where sliding doors or gates need to move smoothly along a track. The V-groove provides stability, preventing the door or gate from derailing.
- Overhead Trolleys: In overhead conveyor systems, V-grooved cast iron wheels are used to guide trolleys along a track. This ensures consistent and reliable movement.
- Industrial Carts and Dollies: For heavy-duty carts and dollies that must move along a specific route, V-grooved wheels offer the necessary precision and durability.
- Crane and Hoist Systems: These wheels are sometimes used in crane systems where the crane must move along a fixed track.
- Heavy-Duty Machinery: In certain types of heavy machinery, V-grooved wheels help in maintaining alignment and stability during operation.
Cast iron is chosen for these applications because of its strength, durability, and ability to withstand heavy loads and harsh conditions. These wheels ideal for industrial settings where guided movement is critical.
Can't find it? We'll probably have it...call us on 0121 772 1010 for support. Read More
- Display 15 Products per page
- In Stock
Castor Wheel 200mm | Cast Iron, 910kg, 20mm Ball bearing (KW200CV2H)
Original price was: £62.50.£60.68Current price is: £60.68. Sale!200mm V-Groove (92 Degree) Cast Iron Wheel with 20... Read Moremm Ball Beaing. Load Capacity = 910kg - In Stock
Castor Wheel 75mm | V Grooved Cast Iron, 205kg, 19mm Roller Bearing (075CVRA)
£32.6975mm Cast Iron V-Groove Wheel (Revvo) with 19mm (3... Read More/4 inch) Roller Bearing and 45mm hub length. Load Capacity = 205kgThis caster wheel has a clear resin shellac finish and in ideal for use on inverted angle iron rail. It combines strength and shock resistance with long life and economy and a very low tractive resistance which translates to ease of movement.This cast iron wheel is made from close grained castings sometimes described as semi-steel. - In Stock
Castor Wheel 75mm | V Grooved Cast Iron, 225kg, 20mm Roller Bearing (075CV1B)
£32.8475mm Cast Iron Wheel (Wheel - V Grooved) with 20m... Read Morem Roller Bearing. Load Capacity = 225kg - In Stock
V Grooved Wheel 100mm | Cast Iron, 250kg, 20mm Ball bearing (KW100CV2H)
Original price was: £53.87.£38.08Current price is: £38.08. Sale!100mm Cast Iron V-Groove Wheel with 20mm Ball Bear... Read Moreing. This wheel has a 46mm tread width with a 25mm flange groove, 57mm hub length and the load capacity of is 250kg. - In Stock
V Grooved Wheel 100mm | V Grooved Cast Iron, 300kg, 20mm Ball Bearing (100CV2H)
Original price was: £56.99.£42.31Current price is: £42.31. Sale!100mm Revvo Cast Iron V-Groove Wheel with 20mm Bal... Read Morel Bearing. This wheel has a 46mm tread width with a 25mm flange groove, 57mm hub length and the load capacity of is 300kg.Revvo Cast Iron wheels are manufactured from premium close grained casting of grey iron material which is sometimes described as 'semi-steel' to BSEN1561, This wheel combines strength and shock resistance with long life and economy. - In Stock

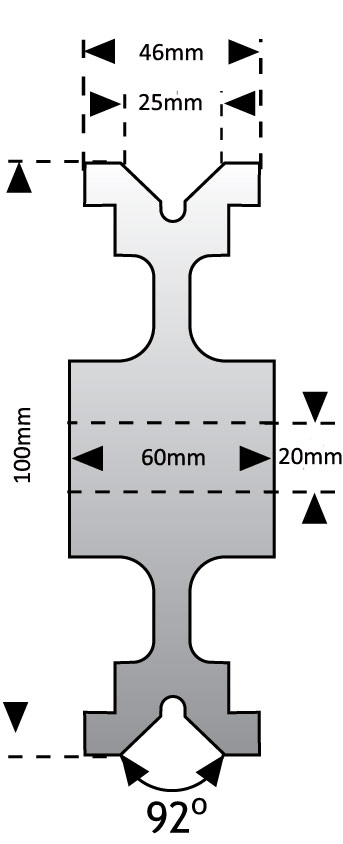

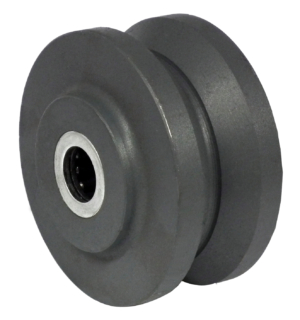

V Grooved Wheel 100mm | V Grooved Cast Iron, 300kg, 20mm Roller Bearing (100CV1H)
£36.76100mm Revvo Cast Iron V Groove Wheel with 20mm Rol... Read Moreler Bearing. This wheel has 46mm Tread Width, 25mm Flange Groove with 92 degree angle, 60mm Hub Length (distance through the central bore) and a load capacity of 300kg.Revvo Cast Iron wheels are manufactured from premium close grained casting of grey iron material which is sometimes described as 'semi-steel' to BSEN1561, This wheel combines strength and shock resistance with long life and economy. - In Stock
V Grooved Wheel 200mm | V Grooved Cast Iron, 1000kg, 25mm Roller Bearing (200CV1H)
£91.75200mm V-Groove Cast Iron Wheel (Genuine Revvo bran... Read Mored) with a clear resin shellac finish and a 25mm Roller Bearing. The wheel's load capacity is 1,000kg and is ideal for use on inverted angle iron rail. - In Stock

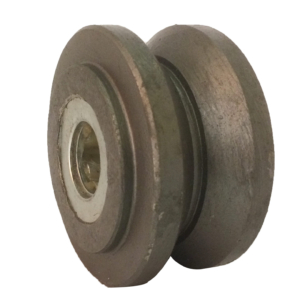

V Grooved Wheel 75mm | Cast Iron, 205kg, 19mm Roller Bearing (KW075CVRA)
£26.6275mm V-Grooved (92 Degree Angle) Cast Iron Wheel w... Read Moreith 35mm Tread Width, 21mm Vee Groove, 19mm Roller Bearing and 45mm Hub Length (the distance through the central bore). Load Capacity = 205kg
