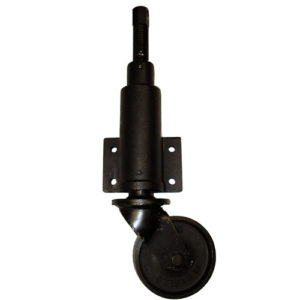

Jacking Castors
Side mounted jacking castors are also called Castor Jacks. They are independently raised or lower to enable to movement and vertical adjustments of equipment. It is important to understand the the maximum total load a Jacking Castor can carry is determined differently to a typical castor. This is because of the way Jacking Castors work to... raise and lower loads. Each castor may have have to HALF the total weight placed on it. Total weight is the weight of the unladen unit plus the weight of the additional load.To work out the minimum load capacity you need add the weight of the unit and the maximum load the unit will carry together then divide this number by 2.
Jacking castors are heavy duty height adjustable castors. They help the movement and quick and accurate vertical adjustments for levelling working platforms, machines and other heavy duty applications. They provide users with the ability to raise and lower heavy equipment to enable its safe movement. Read More
- In Stock
Jacking Castor, 150mm, Polyurethane Tyre / Cast Iron Centre Wheel, Roller Bearing, 700kg (KJD150SUB)
£284.98 Compare150mm Jacking Castor with 75mm lift and 114.3mm... Read More x 63.5mm Hole Centres. The cast iron wheel centre has a Polyurethane Tyre and fitted with a Roller Bearing. Load Capacity = 700kg.
It is important to note that the minimum Jacking Castor load capacity is obtained by calculating the total weight to be carried (unladen unit weight + maximum load) and dividing that by 2. This is because the operation of Jacking Castors means that each castor can be subjected to half the total weight.
Most applications require 4 Jacking Castors and in this situation, the recommended total maximum load that can be carried by 4 Jacking Castors is 1,400kg.
Bearing Type: Roller BearingBolt Hole Size: 12mmBracket Material: Fabricated SteelBrake: Without BrakeDuty: HeavyFixing Centres: 114.3x63.5mmFixing Type: Side Mounted PlateLoad Capacity: 700kgOverall Height: 556mmWheel Diameter: 150mmWheel Tread Material: Polyurethane TyreWheel Tread Width: 45mmWheel Type: Polyurethane Tyre / Cast Iron CentreQty - In Stock
Jacking Castor, 200mm, Cast Iron Wheel, Roller Bearing, 1090kg (JA8CIB)
200mm Jacking Castor (Genuine Flexello) has 76mm l... Read Moreift with 114.3mm x 63.5mm Hole Centres. The solid cast iron wheel is fitted with a Roller Bearing. Load Capacity = 1090kg.It is important to note that the minimum Jacking Castor load capacity is obtained by calculating the total weight to be carried (unladen unit weight + maximum load) and dividing that by 2. This is because the operation of Jacking Castors means that each castor can be subjected to half the total weight.Most applications require 4 Jacking Castors and in this situation, the recommended total maximum load that can be carried by 4 Jacking Castors is 2,180kg.Bearing Type: Roller BearingBolt Hole Size: 12mmBracket Type: SwivelBrake: Without BrakeDuty: HeavyFixing Centres: 114.3x63.5mmFixing Type: Side Mounted PlateLoad Capacity: 1090kgManufacturer: FlexelloOverall Height: 607mmWheel Diameter: 200mmWheel Tread Material: Cast IronWheel Tread Width: 51mmWheel Type: Cast Iron£496.61£422.12Sale! CompareQty - In Stock
Jacking Castor, 200mm, Polyurethane Tyre / Cast Iron Centre Wheel, Ball bearing, 850kg (KJD200PCB)
£242.08 Compare200mm Jacking Castor with 76mm lift and 114.3mm x ... Read More63.5mm Hole Centres. The cast iron wheel centre has a Polyurethane Tyre and is fitted with a Ball Bearing. Load Capacity = 850kg.It is important to note that the load Capacity of a Jacking Castor or Castor Jack is obtained by calculating the total weight to be carried (unladen unit weight + maximum load) and dividing that by 2. This is because the operation of Jacking Castors means that each castor can be subjected to half the total weight.Most applications require 4 Jacking Castors and in this situation, the recommended total maximum load that can be carried by 4 Jacking Castors is 1,700kg.Bearing Type: Ball bearingBolt Hole Size: 12mmHeight to Lower Bolt When Extended: 342mmBracket Material: Fabricated SteelBrake: Without BrakeDuty: HeavyFixing Centres: 114.3x63.5mmFixing Type: Side Mounted PlateLoad Capacity: 850kgOverall Height: 607mmWheel Diameter: 200mmWheel Tread Material: Polyurethane TyreWheel Tread Width: 50mmWheel Type: Polyurethane Tyre / Cast Iron CentreQty - In Stock
Jacking Castor, 200mm, Polyurethane Tyre / Cast Iron Centre Wheel, Roller Bearing, 1045kg (JA8SUB)
200mm Jacking Castor (Flexello) has 76mm lift with... Read More 114.3mm x 63.5mm Hole Centres. The cast iron wheel centre has a Flexello Superthane Polyurethane Tyre and fitted with a Roller Bearing. Load Capacity = 1045kg.It is important to note that the minimum Jacking Castor load capacity is obtained by calculating the total weight to be carried (unladen unit weight + maximum load) and dividing that by 2. This is because the operation of Jacking Castors means that each castor can be subjected to half the total weight.Most applications require 4 Jacking Castors and in this situation, the recommended total maximum load that can be carried by 4 of these Jacking Castors is 2,090kg.Bearing Type: Roller BearingBolt Hole Size: 12mmBracket Type: SwivelBrake: Without BrakeDuty: HeavyFixing Centres: 114.3x63.5mmFixing Type: Side Mounted PlateLoad Capacity: 1045kgManufacturer: FlexelloOverall Height: 607mmWheel Diameter: 200mmWheel Tread Material: PolyurethaneWheel Tread Width: 51mmWheel Type: Polyurethane Tyre / Cast Iron Centre£527.24£448.16Sale! CompareQty - In Stock
Jacking Castor, 150mm, Polyurethane Tyre / Cast Iron Centre Wheel, Roller Bearing, 725kg (JA6SUB)
150mm Jacking Castor (Genuine Flexello) has 76mm l... Read Moreift with 114.3mm x 63.5mm Bolt Hole Centres on a side mounting plate. The cast iron wheel centre is tyred in Flexello Superthane Red Polyurethane and fitted with a Roller Bearing. Load Capacity = 725kg.Jacking Castors help with the movement and quick and accurate vertical adjustments of working platforms, machines and other heavy duty applications. This enables users to raise and lower equipment for its safe movement.It is important to note that the minimum Jacking Castor load capacity is obtained by calculating the total weight to be carried (unladen unit weight + maximum load) and dividing that by 2. This is because the operation of Jacking Castors means that each castor can be subjected to half the total weight.Most applications require 4 Jacking Castors and in this situation, the recommended total maximum load that can be carried by 4 Jacking Castors is 1,450kg.Bearing Type: Roller BearingBolt Hole Size: 12mmBracket Type: SwivelBrake: Without BrakeDuty: HeavyFixing Centres: 114.3x63.5mmFixing Type: Side Mounted PlateLoad Capacity: 725kgOverall Height: 556mmWheel Diameter: 150mmWheel Tread Material: Polyurethane TyreWheel Tread Width: 45mmWheel Type: Polyurethane Tyre / Cast Iron Centre£442.94£332.21Sale! CompareQty - In Stock
Jacking Castor, 150mm, Cast Iron Wheel, Roller Bearing, 1020kg (JA6CIB)
150mm Jacking Castor (Genuine Flexello) has 76mm l... Read Moreift with 114.3mm x63.5mm Hole Centres. The solid cast iron wheel is fitted with a Roller Bearing. Load Capacity = 1020kg.It is important to note that the minimum Jacking Castor load capacity is obtained by calculating the total weight to be carried (unladen unit weight + maximum load) and dividing that by 2. This is because the operation of Jacking Castors means that each castor can be subjected to half the total weight.Most applications require 4 Jacking Castors and in this situation, the recommended total maximum load that can be carried by 4 Jacking Castors is 2,040kg.Bearing Type: Roller BearingBolt Hole Size: 12mmBracket Type: SwivelBrake: Without BrakeDuty: HeavyFixing Centres: 114.3x63.5mmFixing Type: Side Mounted PlateLoad Capacity: 1020kgManufacturer: FlexelloOverall Height: 556mmWheel Diameter: 150mmWheel Tread Material: Cast IronWheel Tread Width: 45mmWheel Type: Cast Iron£497.01£347.91Sale! CompareQty - In Stock
Jacking Castor, 150mm, Rubber Tyre / Cast Iron Centre Wheel, Roller Bearing, 400kg (JA6RTB)
150mm Jacking Castor (Genuine Flexello) has 76mm l... Read Moreift with 114.3mm x 63.5mm Hole Centres. The cast iron wheel centre has a rubber tyre and is fitted with a Roller Bearing. Load Capacity = 400kg.It is important to note that the minimum Jacking Castor load capacity is obtained by calculating the total weight to be carried (unladen unit weight + maximum load) and dividing that by 2. This is because the operation of Jacking Castors means that each castor can be subjected to half the total weight.Most applications require 4 Jacking Castors and in this situation, the recommended total maximum load that can be carried by 4 Jacking Castors is 800kg.Bearing Type: Roller BearingBolt Hole Size: 12mmBracket Type: SwivelBrake: Without BrakeDuty: HeavyFixing Centres: 114.3x63.5mmFixing Type: Side Mounted PlateLoad Capacity: 400kgManufacturer: FlexelloOverall Height: 556mmWheel Diameter: 150mmWheel Tread Material: Rubber TyreWheel Tread Width: 45mmWheel Type: Rubber Tyre / Cast Iron Centre£478.89£344.81Sale! CompareQty
