Description

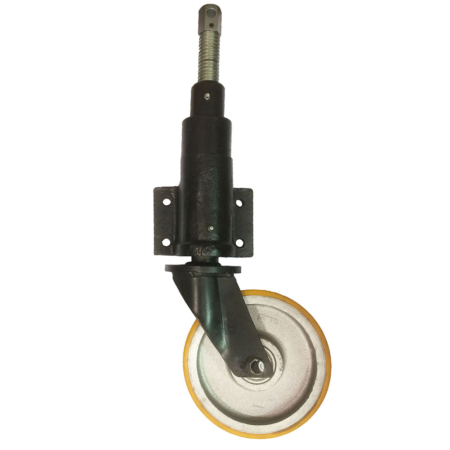

200mm Jacking Castor with 76mm Lift – Polyurethane Wheel
Heavy-duty jacking castor designed for applications requiring both mobility and adjustable lifting. The castor features a robust cast iron wheel centre with a polyurethane tyre and precision ball bearing for smooth movement, high load capacity and reduced rolling resistance.
Key Specifications
- Wheel Diameter: 200mm
- Lift Height: 76mm
- Wheel Material: Polyurethane Tyre on Cast Iron Centre
- Bearing Type: Ball Bearing

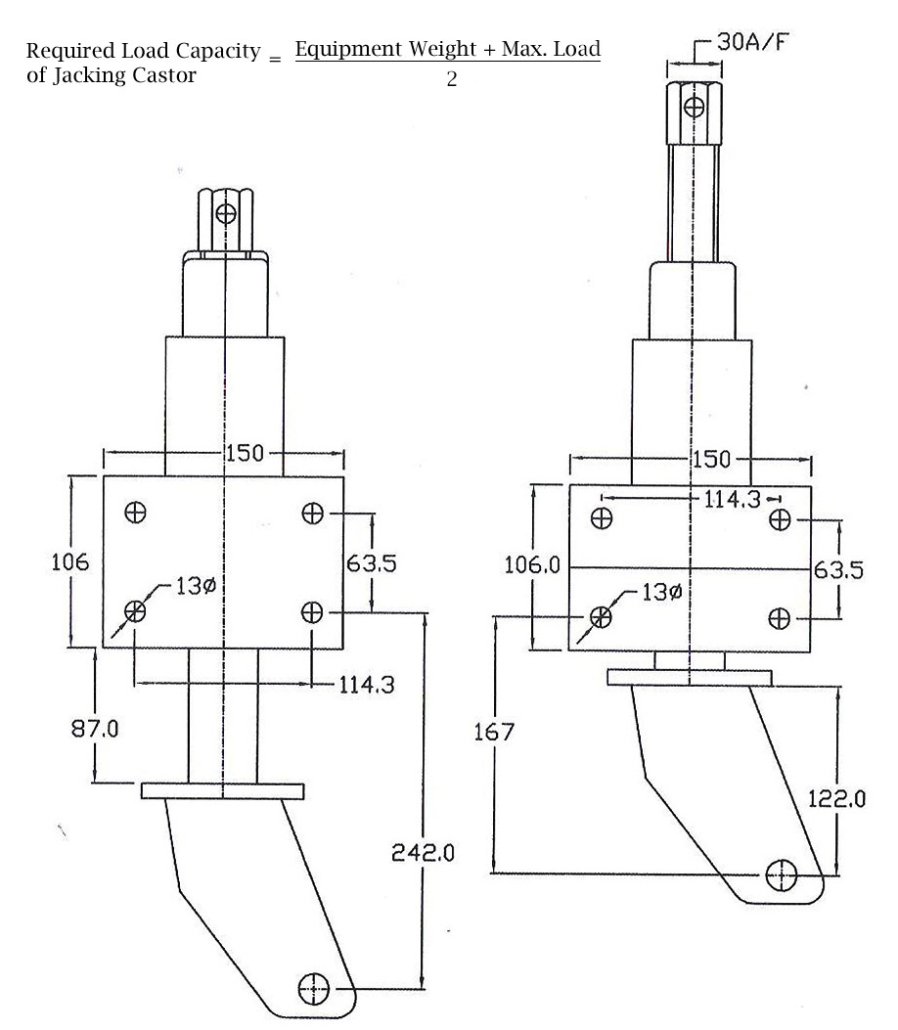

- Fixing Hole Centres: 114.3mm x 63.5mm
- Individual Castor Load Capacity: 850kg
- Maximum Recommended Equipment Weight Using 4 Castors: 1,700kg
The integrated jacking mechanism allows equipment to be raised, positioned and stabilised during use.
Suitable applications include:
- industrial machinery,
- mobile work platforms,
- engineering equipment,
- and heavy-duty handling systems.
Important Load Capacity Information
Jacking castors are rated differently from standard castors.
During lifting and lowering, each castor can temporarily support a much greater proportion of the total load. For this reason, the maximum recommended equipment weight using 4 jacking castors is calculated by dividing the total weight by 2.
This helps ensure:
- safe lifting,
- stable operation,
- and long-term castor performance.
