Swivel Castors

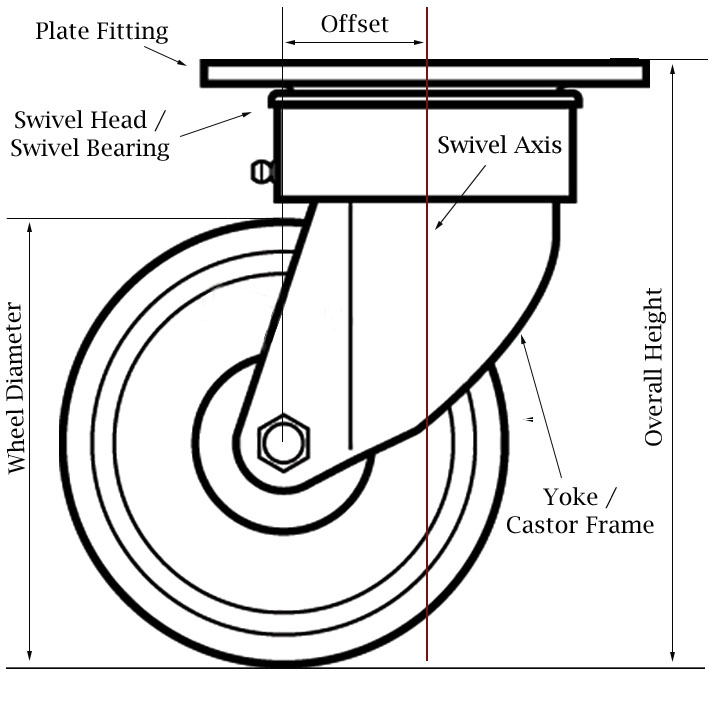

Swivel Castors and wheels can swivel 360 degrees about the vertical axis (see figure below). They consist of a housing and a caster wheel. The housing itself is made up of a plate fitting, swivel bearings and a yoke. The Yoke is often referred to as the castor's frame (see figure below).The plate fitting determines how the... castor is going to be attached to the equipment. It is usually either a single bolt hole fitting or a plate fixing which is generally square, rectangular or triangular. Plate fittings are usually bolted to equipment so knowing your required bolt hole centres is important. The Swivel Head consists of a ball race and a number of ball bearings that roll within it. Swivel Castors can either have a single ball race or a double ball race. They perform the same function. The double ball race was developed for medium and heavy applications. This is because they are compact, perform well under static and dynamic loads and provide excellent steerability.
Swivel castors can be fitting with locks which lock (brake) wither the wheel or the swivel head or both. See Brake Castors.
Swivel Castor Components
Swivel Castor Offset
The Swivel Castor's offset it the distance from the swivel axis to the centre of the wheel (where it is secured to the castor frame). It is the reason a swivel castor will go in the direction you want it to go regardless its starting direction. The offset and castor wheel's diameter make up the swivel radius where the swivel radius = Offset + (Wheel Diameter / 2).
This is the radius of circle described but the outer dimension of the wheel swivelling around the vertical axis. Basically, this is important because it tells you how much room is needed for the swivel caster to swivel. Furthermore, the general rule is the bigger the offset the better the castor's running performance but the lower the weight it can carry. Read More
- Display 15 Products per page
In Stock100mm AGV Swivel Castor, Twin Wheel, 310kg Load | Polyurethane Wheel, Ball bearing (GAAD100ASFHUD)
£472.20This Twin wheel ... Read More100mm Automated Guided Vehicle (AGV) Castor has a bracket made from strong Forged steel that is zinc plated. There is a hardened Taper Roller Bearing in he swivel head, which has a grease nipple, for smooth swivelling action and durability.The castor is unique because it has a self-aligned function enabled by two swivelling axes each with different swivelling radii so that the castor's offset can automatically alter when changing direction to optimise the castor's turning circle for the AGV. Specifically, the offset can range from 10mm to 30mm which reduces the castors 'swing' enabling it to better follow the designated path.The Top Plate is 112mm x 112mm and has 4 bolt holes that are spaced 92mm x 92mm, each with a 9mm hole diameter,This castor frame has two wheels with a Polyurethane tyre (Shore A 95) on an Aluminium centre each containing ball bearings, The polyurethane wheel has excellent elasticity the minimises slipping that can happen when an AGV starts or stops. In addition, the elasticity also absorbs small shocks arising from small imperfections in the floor. The wheel itself is non marking and will not damage the floor. Offset: 10mm to 30mmBearing Type: Ball bearingBolt Hole Size: 9mmBracket Material: Fabricated SteelBracket Type: SwivelBrake: Without BrakeDuty: MediumFixing Centres: 92x92mmFixing Type: 4-Hole Plate FixingLoad Capacity: 310kgLoad Rating: 251kg - 500kgOverall Height: 160mmSwivel Radius: 60mm to 80mmTop Plate Size: 112x112mmWheel Diameter: 100mmWheel Tread Material: PolyurethaneWheel Tread Width: 30mmWheel Type: Polyurethane Tyre / Aluminium Centre- In Stock
100mm Black Swivel Castor, 200kg Capacity | Rubber Tyre Wheel, Ball Bearing (MSV100BRN2B)
£12.78100mm All Black Swivel Castor with Black Elastic R... Read Moreubber Tyre on a nylon centre wheel with a single ball bearing. This castor is designed for theatre applications to reduce reflection from lighting. It can also be used in any application where a pressed steel castor is required.The Swivel Brake Bracket has a 4 hole top plate with 80/77x60mm bolt hole spacing. The load capacity of this castor is 200kg using manual propulsion at 4km/h (walking speed)The Black Elastic Rubber Tyre offers a higher load capacity than standard grey or black rubber tyres and is quiet and gentle on floors. The soft tread rubber (65 Shore A) absorbs vibrations whilst in motion making this a low noise option. The ball bearing lowers the rolling resistance to reduce the effort required to move the castors. Together with the strong bracket that has a double ball race in the swivel head makes this castors a great performer and one of our most popular products.DOWNLOAD CATALOGUE PAGE HEREOffset: 40mmBearing Type: Ball bearingBolt Hole Size: 8mmBracket Material: Pressed Steel, Pressed Steel - Black PaintedBracket Type: SwivelBrake: Without BrakeDuty: MediumFixing Centres: 80x60mmFixing Type: 4-Hole Plate FixingLoad Capacity: 200kgOverall Height: 128mmSwivel Radius: 90mmWheel Diameter: 100mmWheel Tread Material: Rubber TyreWheel Tread Width: 36mmWheel Type: Rubber Tyre / Nylon Centre - In Stock
100mm Heavy Duty Swivel Castor, 500kg Capacity | White Nylon Wheel, Ball Bearing (HSV100NY2B)
£25.38100mm Heavy Duty Top Plate Swivel Castor with Heav... Read Morey Gauge Pressed Steel and a load capacity of 500kg. The swivel head has a double ball race with hardened ball race track.- The Top Plate measure 105x80mm with 80x60mm Fixing Bolt Hole Centres. The bolt holes are slotted to 80/75x60/55mm and suits 8mm Bolts.
- The castor wheel is a white nylon wheel (polyamide) with a 37mm tread width and fitted with two precision ball bearings. The hard wheel is non-marking and has the lowest rolling and swivel resistance.
- This castor is an excellent all purpose heavy duty castor. It is often used with high load mobile storage and transportation equipment in domestic, mechanical and industrial applications.
Offset: 45mmBearing Type: Ball bearingBolt Hole Size: 9.2mmBracket Material: Heavy Gauge Pressed SteelBracket Type: SwivelBrake: Without BrakeDuty: HeavyFixing Centres: 80x60mmFixing Type: Top PlateLoad Capacity: 500kgOverall Height: 140mmSwivel Radius: 95mmTop Plate Size: 105x80mmWheel Diameter: 100mmWheel Tread Material: NylonWheel Tread Width: 37mmWheel Type: Nylon - In Stock
100mm High Temperature Stainless Steel Swivel Castor, 150kg Capacity | Phenolic Wheel, Plain Bore (MSS100HT)
£28.56100mm High Temperature Top Plate Swivel Castor (St... Read Moreainless Steel Castor) with 80x60mm Bolt Hole Centres and 128mm overall height. Black Phenolic caster wheel with 35mm Tread Width and Smooth Plain Bore. Load Capacity = 150kgThis castor is rated from -40 Deg. C to +280 Deg. C and is made from AISI304 Stainless Steel with a double ball race in the swivel head.Offset: 37mmBearing Type: Plain BoreBolt Hole Size: 8mmBracket Material: Stainless SteelBracket Type: SwivelBrake: Without BrakeDuty: MediumFixing Centres: 80x60mmFixing Type: 4-Hole Plate FixingLoad Capacity: 150kgOverall Height: 128mmTop Plate Size: 100x85mmWheel Diameter: 100mmWheel Tread Material: Phenolic ResinWheel Tread Width: 35mmWheel Type: Phenolic Resin - In Stock
100mm High Temperature Swivel Castor, 120kg Capacity | Phenolic Resin Wheel, Plain Bore (MSX100HT)
£16.87100mm Swivel Castor (Pressed Steel) with 80x60mm B... Read Moreolt Hole centres and 128mm Overall Height. This castor houses a High Temperature Black Phenolic Wheel with a 35mm Tread Width and Smooth Plain Bore. It is Rated to +280 degrees C and has a Load Capacity = 120kgBearing Type: Plain BoreBolt Hole Size: 8mmBracket Material: Pressed SteelBracket Type: SwivelBrake: Without BrakeDuty: Light/MediumFixing Centres: 80x60mmFixing Type: 4-Hole Plate FixingLoad Capacity: 120kgOverall Height: 128mmWheel Diameter: 100mmWheel Tread Material: Phenolic ResinWheel Tread Width: 35mmWheel Type: Phenolic Resin - In Stock
100mm High Temperature Swivel Castor, 125kg Capacity | Phenolic Resin Wheel, Plain Bore (MSX100HTBH)
£17.17100mm Single Bolt Hole Swivel Castor (Pressed Stee... Read Morel) with High Temperature Phenolic Wheel (Plain Bore) - Rated to +280 degrees C. Load capacity = 125kgBearing Type: Plain BoreBolt Hole Size: 12mmBracket Material: Pressed SteelBracket Type: SwivelBrake: Without BrakeDuty: Light/MediumFixing Centres: Single Bolt Hole 12mmFixing Type: Single Bolt HoleLoad Capacity: 125kgOverall Height: 128mmWheel Diameter: 100mmWheel Tread Material: Phenolic ResinWheel Tread Width: 35mmWheel Type: Phenolic Resin - In Stock
100mm Shock Absorbing Swivel Castor, 100kg Capacity | Polyurethane Tyre Wheel (GDS10075SF)
£80.51... Read More-variant-east-asian: normal; font-size: 14px;">100mm Shock Absorbing Swivel Castor with 78mm x 78mm 4-hole Top Plate with 58mm x 58mm Bolt Hole spacings each fixing hole drilled to 7mm, The Polyurethane tyre on Aluminium Centre is fitted with precision ball bearings, This caster has a load capacity of 100kg.
The shock absorbing function of this castor means that the overall height can vary by 20mm. The casters height without load is 160mm and this reduces incrementally by up to 20mm as load increases (see image 2 - GDS100 Curve) and fully compressed with a load of 75kg. Furthermore, the castor's offset will also vary from 45mm (at its full height of 160mm) to 53mm as the load increases.
Bolt Hole Size: 6mmBracket Type: SwivelBrake: Without BrakeDuty: LightFixing Centres: 58x58mmFixing Type: 4-Hole Plate FixingLoad Capacity: 100kgOverall Height: 160mmWheel Diameter: 100mmWheel Tread Material: Polyurethane TyreWheel Tread Width: 0mmWheel Type: Polyurthane Tyre / Aluminum Centre - In Stock
100mm Spring Loaded Gate Castor with non-marking wheel, 57kg Load Capacity (GCLD100)
£11.85Standard Gate Castor spring loaded for use on unev... Read Moreen surfaces. This gate castor comes with a swivel castor bracket with a 100mm non-marking wheel. It comes pre-drilled with two 10mm fixing holes spaced 60mm apart.Spring loaded gate castors help with opening and closing heavy gates (57kg) and because the spring allows the height to adjust with when it moves, it is suitable for use on uneven surfaces. The gate castor will help support the gate to help prevent it from dragging on the floor and hinge damageBearing Type: Plain BoreBolt Hole Size: 10mmBracket Material: Pressed SteelBracket Type: SwivelBrake: Without BrakeDuty: LightLoad Capacity: 57kgOverall Height: 280mmWheel Diameter: 100mmWheel Tread Material: Rubber TyreWheel Tread Width: 30mmWheel Type: Black Plastic - In Stock
100mm Stainless Steel Swivel Castor, 150kg Capacity | Nylon Wheel, Plain Bore (MSS100NY)
£16.61100mm Top Plate Swivel Castor (Stainless Steel Cas... Read Moretor) with 80x60mm Bolt Hole Centres and 128mm overall height. White nylon caster wheel with 30mm Tread Width and Smooth Plain Bore. Load Capacity = 150kgBearing Type: Plain BoreBolt Hole Size: 8mmBracket Material: Stainless SteelBracket Type: SwivelBrake: Without BrakeDuty: MediumFixing Centres: 80x60mmFixing Type: 4-Hole Plate FixingLoad Capacity: 150kgOverall Height: 128mmWheel Diameter: 100mmWheel Tread Material: NylonWheel Tread Width: 30mmWheel Type: Nylon - In Stock
100mm Stainless Steel Swivel Castor, 150kg Capacity | Nylon Wheel, Plain Bore (MSS100NYBH)
£18.11100mm Bolt Hole Swivel Castor (Stainless Steel Cas... Read Moretor) with 12mm Bolt Hole. Nylon Wheel with Plain Bore. Load Capacity = 150kgBearing Type: Plain BoreBolt Hole Size: 12mmBracket Material: Stainless SteelBracket Type: SwivelBrake: Without BrakeDuty: MediumFixing Centres: Single Bolt Hole 12mmFixing Type: Single Bolt HoleLoad Capacity: 150kgOverall Height: 126mmWheel Diameter: 100mmWheel Tread Material: NylonWheel Tread Width: 30mmWheel Type: Nylon - In Stock
100mm Stainless Steel Swivel Castor, 150kg Capacity | Polyurethane Tyre Wheel, Roller Bearing (MSS100PNB)
£22.95100mm Top Plate Swivel Castor (Stainless Steel Cas... Read Moretor) with 80x60mm Bolt Hole Centres. Polyurethane Tyre / Nylon Centre Wheel with Roller Bearing. Load Capacity = 150kgBearing Type: Roller BearingBolt Hole Size: 8mmBracket Material: Stainless SteelBracket Type: SwivelBrake: Without BrakeDuty: MediumFixing Centres: 80x60mmFixing Type: 4-Hole Plate FixingLoad Capacity: 150kgOverall Height: 128mmWheel Diameter: 100mmWheel Tread Material: Polyurethane TyreWheel Tread Width: 30mmWheel Type: Polyurethane Tyre / Nylon Centre - In Stock
100mm Stainless Steel Swivel Castor, 150kg Capacity | Polyurethane Tyre Wheel, Roller Bearing (MSS100PNBBH)
£22.23100mm Bolt Hole Swivel Castor (Stainless Steel Cas... Read Moretor) with 12mm Bolt Hole. Polyurethane Tyre / Nylon Centre Wheel with Roller Bearing. Load Capacity = 150kgBearing Type: Roller BearingBolt Hole Size: 12mmBracket Material: Stainless SteelBracket Type: SwivelBrake: Without BrakeDuty: MediumFixing Centres: Single Bolt Hole 12mmFixing Type: Single Bolt HoleLoad Capacity: 150kgOverall Height: 126mmWheel Diameter: 100mmWheel Tread Material: Polyurethane TyreWheel Tread Width: 30mmWheel Type: Polyurethane Tyre / Nylon Centre - In Stock
100mm Stainless Steel Swivel Castor, 150kg Capacity | Rubber Tyre Wheel, Roller Bearing (MSS100RNB)
£23.42100mm Top Plate Swivel Castor (Stainless Steel ... Read MoreBracket) with 80x60mm Hole Centres and 128mm overall height.
The non-marking Elastic Blue Rubber Tyre / Nylon Centre Wheel has a 36mm Tread Width and contains a Stainless Steel Needle Roller Bearing to reduce the rolling resistance. Load Capacity = 150kg
Bearing Type: Roller BearingBolt Hole Size: 8mmBracket Material: Stainless SteelBracket Type: SwivelBrake: Without BrakeDuty: MediumFixing Centres: 80x60mmFixing Type: 4-Hole Plate FixingLoad Capacity: 150kgOverall Height: 128mmWheel Diameter: 100mmWheel Tread Material: Rubber TyreWheel Tread Width: 36mmWheel Type: Blue Rubber Tyre / Nylon Centre - In Stock
100mm Stainless Steel Swivel Castor, 150kg Capacity | Rubber Tyre Wheel, Roller Bearing (MSS100RNBBH)
£24.66100mm Bolt Hole Swivel Castor (Stainless Steel Cas... Read Moretor) with 12mm Bolt Hole. Blue Rubber Tyre / Nylon Centre Wheel with Roller Bearing. Load Capacity = 150kgBearing Type: Roller BearingBolt Hole Size: 12mmBracket Material: Stainless SteelBracket Type: SwivelBrake: Without BrakeDuty: MediumFixing Centres: Single Bolt Hole 12mmFixing Type: Single Bolt HoleLoad Capacity: 150kgOverall Height: 126mmWheel Diameter: 100mmWheel Tread Material: Rubber TyreWheel Tread Width: 36mmWheel Type: Blue Rubber Tyre / Nylon Centre - In Stock
100mm Swivel Castor, 100kg Capacity | Rubber Tyre Wheel, Ball Bearing (KAHS100TPR)
£9.57This apparatu... Read Mores / institutional castor comes with a 100mm Grey Thermoplastic Rubber Tyre Wheel on a nylon centre fitted into a 10mm Single Bolt Hole Swivel Castor (Pressed Steel Frame) with a double ball race swivel head. The load capacity of this castor is 100kg using manual propulsion at 4km/h
This castor is fitted with a grey rubber tyre that will not mark or damage the floor and is ideal for most general, light duty castor purposes such as trolley castors or dolly castors. The Ball Bearing in the wheel provides excellent rolling performance.
Single Bolt Hole castors can have a expander tube fitting (purchased separately) attached to insert into hollow square or round tubing. See our section on Expander Tube Fittings
Bearing Type: Ball bearingBolt Hole Size: 10mmBracket Material: Pressed SteelBracket Type: SwivelBrake: Without BrakeDuty: LightFixing Centres: Single Bolt Hole 10mmFixing Type: Single Bolt HoleLoad Capacity: 100kgOverall Height: 135mmWheel Diameter: 100mmWheel Tread Material: Rubber TyreWheel Tread Width: 32mmWheel Type: Grey Thermoplastic Rubber Tyre / Polypropylene Centre
