Footmaster Levelling Castor | Adjustable Foot
Footmaster Levelling Castor | Adjustable Foot is a levelling castor with a threaded stem Adjustable Foot. The adjustable foot gives up to 48mm of levelling capability depending on the castor's size selected.These heavy duty Levelling castors are great for equipment that requires mobility and levelling when located in posit...ion. The 50mm size has a load capacity of 150kg and the 75mm size can hold 700kg.
The maximum recommended load capacity of these castors can be calculated by multiplying the castor's load capacity by 3.
Click here to find out more about recommended load capacities.
Footmaster Levelling Castor | Adjustable Foot has a top plate made from pressed steel and the swivel head has a double ball race with hardened bearing seats. The frame is made from die-cast aluminium that has been powder coated for protection. Height adjustment is achieved using a spanner. Read More
- Display 15 Products per page
- In Stock
50mm Footmaster Castor with Levelling Foot, 150kg Capacity | Nylon Wheel, Plain Bore (KGDH50ASFNYN)
£25.65This 50mm Swivel Castor has Black Nylon wheel (... Read Moreplain bore) with an extra long adjustable foot. The aluminium castor frame has a durable ivory coloured powder coating for protection against wear and tear.
The Threaded section of the Adjustable Foot extends a maximum of 56mm above the top of the top plate (64mm including the hex head). The Hex Head can be operated by a drill for quick operation.
The overall height of the castor is 73mm and the adjustable foot can extend by up to 35mm to enable precise levelling.
The load capacity of this product is 150kg and the recommended maximum total load over 4 castors is 450kg.
Bearing Type: Plain BoreBolt Hole Size: 7mmBracket Material: Die Cast AluminiumBracket Type: SwivelBrake: Without BrakeDuty: MediumFixing Centres: 58x58mmFixing Type: 4-Hole Plate FixingLoad Capacity: 150kgOverall Height: 73mmStem Size: M10x56LmmSwivel Radius: 70mmTop Plate Size: 73x73mmWheel Diameter: 50mmWheel Tread Material: NylonWheel Tread Width: 25mmWheel Type: Nylon - In Stock
50mm Footmaster Castor with Levelling Foot, 150kg Capacity | Nylon Wheel, Plain Bore (KGDL50ASFNYN)
£24.79This 75mm Medium Duty Levelling Castor with a Blac... Read Morek Nylon wheel (Ball Bearing) and adjustable foot. This castor is a swivel castor with a load capacity of 150kg. The aluminium castor frame has a durable ivory coloured powder coating for protection against wear and tear.The overall height of the castor is 73mm and the adjustable foot can extend by up to 10mm to enable precise levelling.The load capacity of this product is 150kg and the recommended maximum total load over 4 castors is 450kg.Bearing Type: Plain BoreBolt Hole Size: 7mmBracket Material: Die Cast AluminiumBracket Type: SwivelBrake: Without BrakeDuty: MediumFixing Centres: 58x58mmFixing Type: 4-Hole Plate FixingLoad Capacity: 150kgOverall Height: 73mmSwivel Radius: 70mmTop Plate Size: 73x73mmWheel Diameter: 50mmWheel Tread Material: NylonWheel Tread Width: 25mmWheel Type: Nylon - In Stock
63mm Footmaster Castor with Levelling Foot, 500kg Capacity | 63mm Nylon Wheel, Plain Bore (KGDH65ASFNYN)
£37.28This 63mm Swivel Castor has Black Nylon wheel (pla... Read Morein bore) with an extra long adjustable foot. The aluminium castor frame has a durable ivory coloured powder coating for protection against wear and tear.The Threaded section of the Adjustable Foot extends a maximum of 60mm above the top of the top plate (78mm including the hex head). The Hex Head can be operated by a drill for quick operation.The overall height of the castor is 98mm and the adjustable foot can extend by up to 48mm to enable precise levelling.The load capacity is 500kg and the recommended maximum total load to be carried by 4 castors is 1,500kg.Bearing Type: Plain BoreBolt Hole Size: 9.5mmBracket Material: Die Cast AluminiumBracket Type: SwivelBrake: Without BrakeDuty: HeavyFixing Centres: 70X70mmFixing Type: 4-Hole Plate FixingLoad Capacity: 500kgOverall Height: 98mmStem Size: M16x60LmmSwivel Radius: 97.5mmTop Plate Size: 90x90mmWheel Diameter: 63mmWheel Tread Material: NylonWheel Tread Width: 28mmWheel Type: Nylon - In Stock
63mm Footmaster Castor with Levelling Foot, 500kg Capacity | 63mm Nylon Wheel, Plain Bore (KGDL65ASFNYN)
£37.28This 63mm Heavy Duty Levelling Castor with a Black... Read More Nylon wheel (Ball Bearing) and adjustable foot. This castor is a swivel castor with a load capacity of 500kg. The aluminium castor frame has a durable ivory coloured powder coating for protection against wear and tear.The overall height of the castor is 98mm and the adjustable foot can extend by up to 18mm to enable precise levelling.The load capacity of this product is 500kg and the recommended maximum total load over 4 castors is 1,500kg.Bearing Type: Plain BoreBolt Hole Size: 9.5mmBracket Material: Die Cast AluminiumBracket Type: SwivelBrake: Without BrakeDuty: HeavyFixing Centres: 70X70mmFixing Type: 4-Hole Plate FixingLoad Capacity: 500kgOverall Height: 98mmSwivel Radius: 87.5mmTop Plate Size: 90x90mmWheel Diameter: 63mmWheel Tread Material: NylonWheel Tread Width: 28mmWheel Type: Nylon - In Stock
75mm Footmaster Castor with Levelling Foot, 700kg Capacity | Nylon Wheel, Ball bearing (KGDH75ASFNYD)
£48.85This 75mm Swivel Castor has Black Nylon wheel (... Read MoreBall Bearing) with an extra long adjustable foot. The aluminium castor frame has a durable ivory coloured powder coating for protection against wear and tear.
The Threaded section of the Adjustable Foot extends a maximum of 60mm above the top of the top plate (78mm including the hex head). The Hex Head can be operated by a drill for quick operation.
The overall height of the castor is 110mm and the adjustable foot can extend by up to 35mm to enable precise levelling.
The load capacity is 700kg and the recommended maximum total load to be carried by 4 castors is 2,100kg.
Bearing Type: Ball bearingBolt Hole Size: 9.5mmBracket Material: Die Cast AluminiumBracket Type: SwivelBrake: Without BrakeDuty: HeavyFixing Centres: 70X70mmFixing Type: 4-Hole Plate FixingLoad Capacity: 700kgOverall Height: 110mmStem Size: M16x60LmmSwivel Radius: 101.5mmTop Plate Size: 90x90mmWheel Diameter: 75mmWheel Tread Material: NylonWheel Tread Width: 55mmWheel Type: Nylon - In Stock

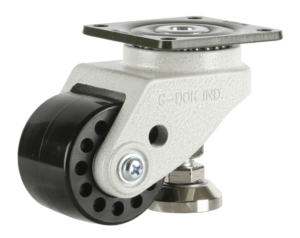

75mm Footmaster Castor with Levelling Foot, 700kg Capacity | Nylon Wheel, Ball bearing (KGDL75ASFNYD)
£47.86This 75mm Heavy Duty Levelling Castor with a Black... Read More Nylon wheel (Ball Bearing) and adjustable foot. This castor is a swivel castor with a load capacity of 700kg. The aluminium castor frame has a durable ivory coloured powder coating for protection against wear and tear.The overall height of the castor is 110mm and the adjustable foot can extend by up to 18mm to enable precise levelling.The load capacity of this product is 700kg and the recommended maximum total load over 4 castors is 2,100kg.Bearing Type: Ball bearingBolt Hole Size: 9.5mmBracket Material: Die Cast AluminiumBracket Type: SwivelBrake: Without BrakeDuty: HeavyFixing Centres: 70X70mmFixing Type: 4-Hole Plate FixingLoad Capacity: 700kgOverall Height: 110mmSwivel Radius: 101.5mmTop Plate Size: 90x90mmWheel Diameter: 75mmWheel Tread Material: NylonWheel Tread Width: 55mmWheel Type: Nylon
