Description

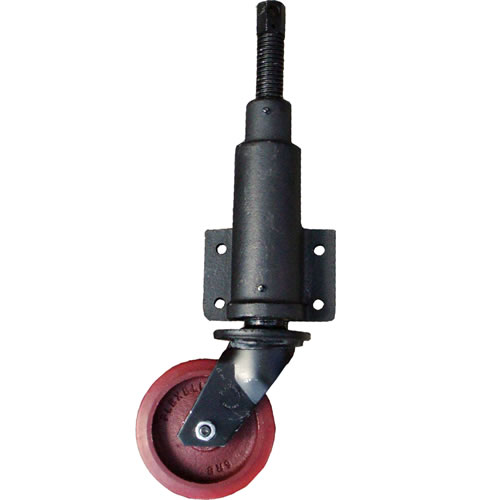

150mm Genuine Flexello Jacking Castor with 76mm Lift – Red Polyurethane Tyre
Heavy-duty Genuine Flexello jacking castor designed for applications requiring both mobility and adjustable lifting. The castor features a robust cast iron wheel centre, durable Flexello Superthane red polyurethane tyre and a roller bearing for smooth movement under heavy loads.

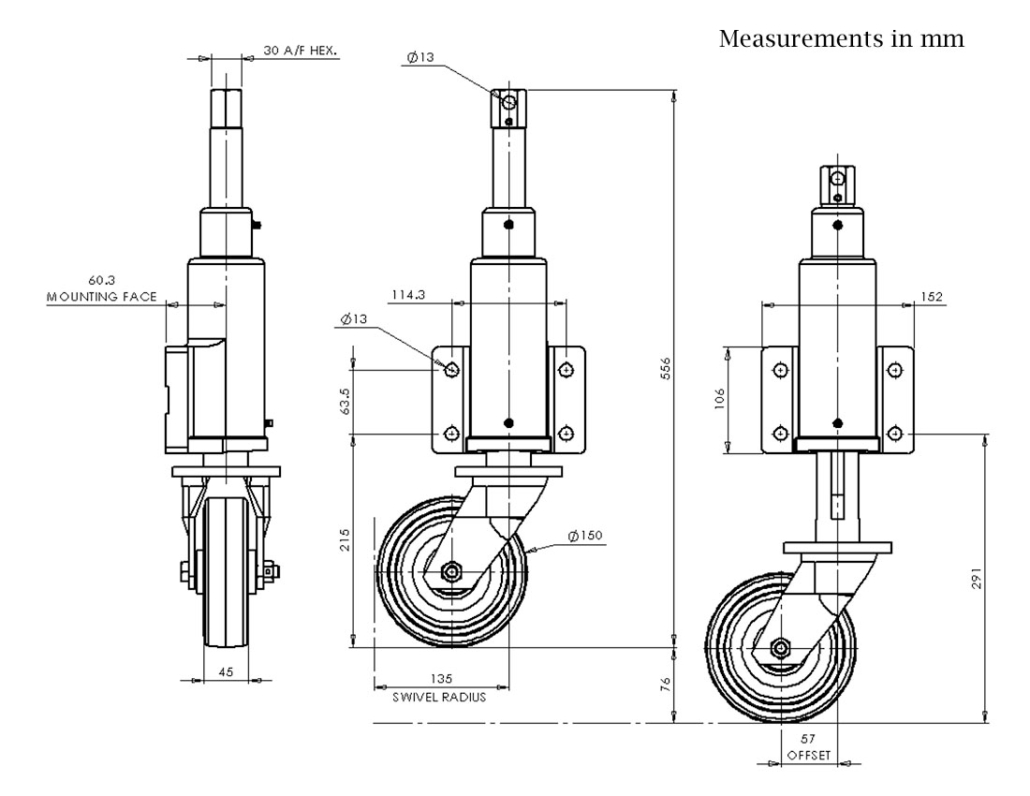

Key Specifications
- Wheel Diameter: 150mm
- Lift Height: 76mm
- Wheel Material: Flexello Superthane Red Polyurethane
- Wheel Centre: Cast Iron
- Bearing Type: Roller Bearing
- Bolt Hole Centres: 114.3mm x 63.5mm
- Individual Castor Load Capacity: 725kg
- Maximum Recommended Equipment Weight Using 4 Castors: 1,450kg
The integrated jacking mechanism allows equipment to be raised, positioned and stabilised during use.
Suitable applications include:
- industrial machinery,
- working platforms,
- fabrication equipment,
- and mobile industrial systems.
Important Load Capacity Information
Jacking castors are rated differently from standard castors.
During lifting and lowering, each castor can temporarily support a much greater proportion of the total load. For this reason, the maximum recommended equipment weight using 4 jacking castors is calculated by dividing the total weight by 2.
This helps ensure:
- safe lifting,
- stable operation,
- and long-term castor performance.
