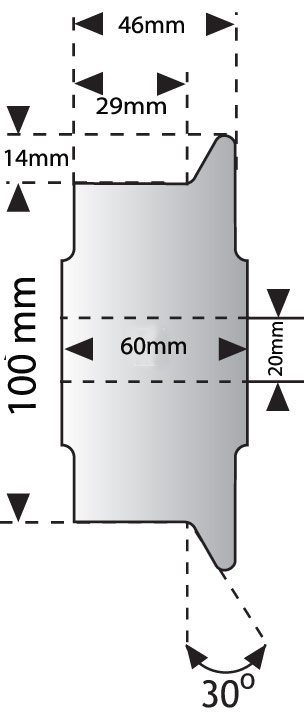

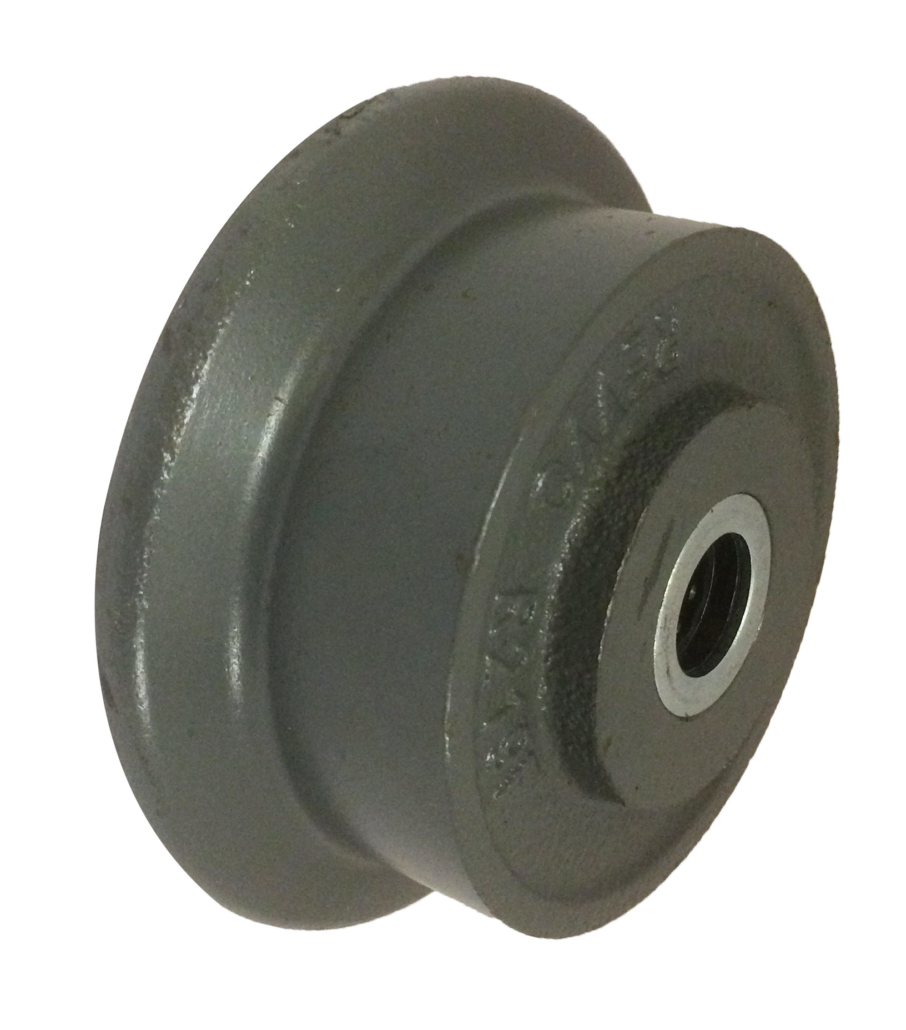

100mm Revvo Heavy Duty Single Flanged Cast Iron Wheel With 20mm Roller Bearing. The flange has a 30o angle and its height is 14mm and the tread width measures 29mm. The total width of the wheel (including the flange) is 46mm. The hub length (distance through the central bore) is 60mm. The wheel is rated to 800kg.
Revvo cast iron Flanged and Grooved wheels are manufactured from close grained casting to BSEN1561 and sometimes described as ‘semi-steel’. This gives this wheel an exception load capacity.
