100mm Shock Absorbing Swivel Castor With Brake, 100kg Capacity | Polyurethane Tyre Wheel, Ball bearing (GDS100B75SF)

Related products

•

  • Description
  • Specifications

  100mm Shock Absorbing Fixed Castor, 100kg Capacity | Polyurethane Tyre Wheel (GDS10075RF)

  100mm Shock Absorbing Fixed Castor with 78mm x 78m ... Read Morem 4-hole Top Plate with 58mm x 58mm Bolt Hole spacings each fixing hole drilled to 7mm, The Polyurethane tyre on Aluminium Centre is fitted with precision ball bearings, This caster has a load capacity of 100kg.The shock absorbing function of this castor means that the overall height can vary by 20mm. The casters height without load is 160mm and this reduces incrementally by up to 20mm as load increases (see image 2 - GDS100 Curve) and fully compressed with a load of 75kg.

  £82.73 Compare

  In Stock

  Qty

  Add To Basket
•

  • Description
  • Specifications

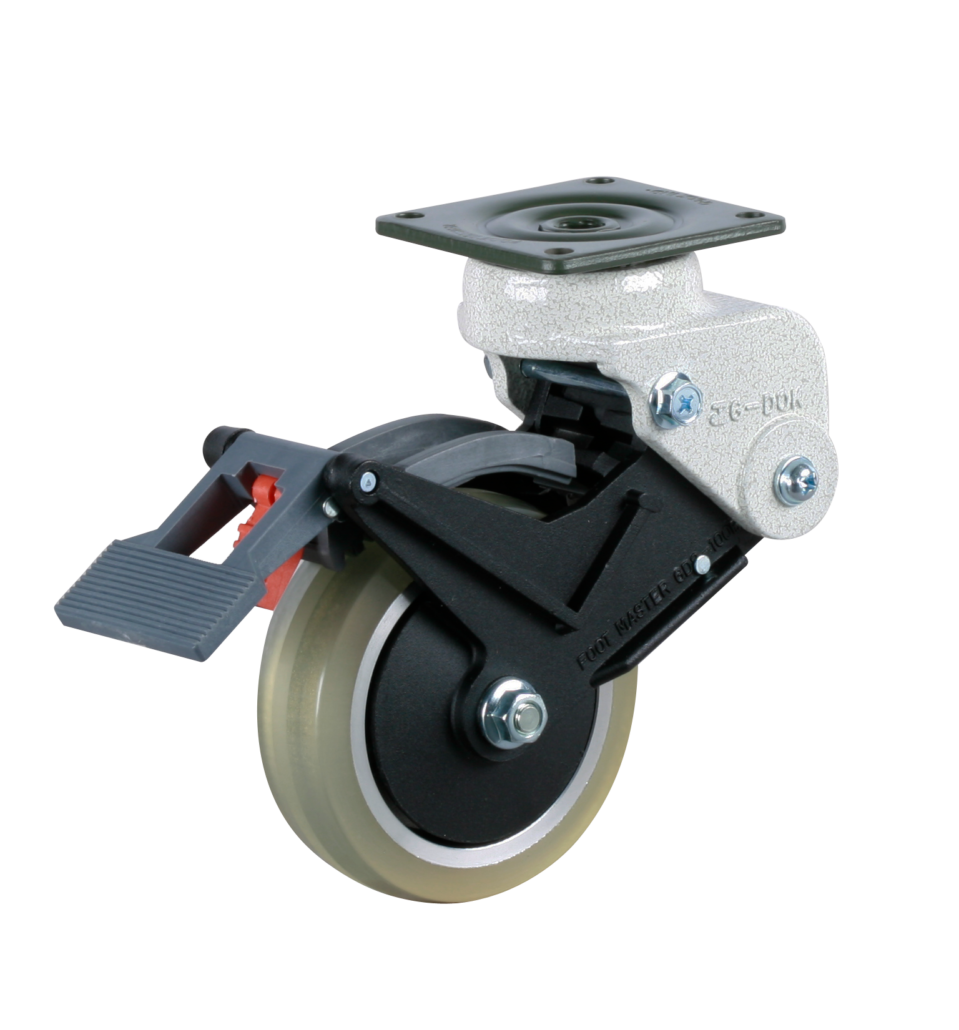

  100mm Shock Absorbing Swivel & Wheel Brake Castor With Brake, 100kg Capacity | Polyurethane Tyre Wheel (GDSB100BSFLUD75)

  100mm Shock Absorbing Swivel Castor with a Total S ... Read Moretop Brake and a Polyurethane Tyre on an Aluminium Centre wheel complete with precision ball bearings Key Specifications: Top Plate Dimensions: 105x80mm Bolt Hole Centres: 80/75x60/55mm Bolt Hole Size: 9mm (to suit 8mm Fixing Bolt) Brake Style: Swivel & Wheel Brake Overall Height: 171mm - 20mm (compression) Castor offset: 45 - 54mm Wheel material: Polyurethane Tyre on an Aluminium Centre Wheel Bearing Type: Ball Bearings Tread Hardness: 90 Shore A Load Rating: 100kg (using manual propulsion at 4km/h) Surface Finish: Powder Coated Note: Because of the spring in the rubber shock absorbing pad, the overall height unloaded is 171mm as the load increases, the compression of the rubber pad  incrementally reduces the overall height by up to 20mm (see image 2 - GDS100 Curve). The castor is fully compressed at 75kg. The shock absorbing movement also means that the castors off set can range from 45mm to 54mm.

  £104.63 Compare

  In Stock

  Qty

  Add To Basket
•

  • Description
  • Specifications

  100mm Shock Absorbing Swivel Castor, 100kg Capacity | Polyurethane Tyre Wheel (GDS10075SF)

  100mm Shock Absorbing Swivel Castor with 78mm x 78 ... Read Moremm 4-hole Top Plate with 58mm x 58mm Bolt Hole spacings each fixing hole drilled to 7mm, The Polyurethane tyre on Aluminium Centre is fitted with precision ball bearings, This caster has a load capacity of 100kg. The shock absorbing function of this castor means that the overall height can vary by 20mm. The casters height without load is 160mm and this reduces incrementally by up to 20mm as load increases (see image 2 - GDS100 Curve) and fully compressed with a load of 75kg. Furthermore, the castor's offset will also vary from 45mm (at its full height of 160mm) to 53mm as the load increases.

  £88.42 Compare

  In Stock

  Qty

  Add To Basket
•

  • Description
  • Specifications

  M6 x 25mm High Tensile Steel Bolt, Nut & Washer Set (BOLTSETM6X25)

  4-Pack M6 x 25mm High Tensile Steel Bolt, Nyloc Nu ... Read Moret & Washer Set – Bright Zinc Plated Secure your castors with confidence using this 4-pack of high-strength M6 x 25mm bolt sets. Each set includes a high tensile steel bolt, nyloc nut, and washer — everything you need for a reliable, vibration-resistant fit. Key Features: High Strength: M6 x 25mm threaded bolts, Grade 8.8 high tensile steel for durability and load-bearing performance. Vibration Resistant: Nyloc nuts feature a nylon insert that grips the bolt thread to prevent loosening during movement. Corrosion Protection: All components are finished in Bright Zinc Plate (BZP) for long-lasting resistance to rust and wear. Pack Contents: 4 × M6 x 25mm Hex Set Bolts (Grade 8.8, BZP finish) 4 × M6 Nyloc Nuts (8mm height, BZP finish) 4 × M6 Washers (12mm OD × 6.4mm ID × 1.8mm thick, BZP finish) Perfect for securely fixing castors to trolleys, carts, or other equipment.

  £1.80 Compare

  In Stock

  Qty

  Add To Basket
