Wheels
To order wheels of the correct size, choose the wheel diameter in millimetres. Common conversions include:2 Inch (2″) = 50mm
3 Inch (3″) = 75mm or 80mm
4 Inch (4″) = 100mm
5 Inch (5″) = 125mm
6 Inch (6″) = 150mm or 160mm
8 Inch (8″) = 20...0mm
10 Inch (10″) = 250mm
Keystone Castors & Wheels stocks the widest range of castor wheels suitable for most castor and industrial applications. We have been Castor & Wheel specialists since 1926. Whether you're looking for a replacement caster wheel or a bulk purchase of industrial wheels, we have the knowledge, experience and stock availability to assist you in making the best choice.
Because we carry a vast stock of castor wheels and trolley wheels, we can handle large orders and small orders from both domestic and business customers. Our UK Wheel stocks include many models and tyre materials, including nylon, rubber tyre, polyurethane, cast iron, polypropylene tyre, pneumatic (inflatable), and puncture-proof wheels. All these wheels can have various options for bearings: Plain Bore, Roller, Ball or Plain Bearings. Read More
- Display 15 Products per page
Pre-OrderCastor Wheel 400mm | Polyurethane Tyre / Cast Iron Centre, 6120kg, 34.9mm Taper Roller (WSU516TM)
400mm Red Polyurethane Tyre on a Cast Iron Centre ... Read More(Flexello Brand). The wheel has a tread width of 127mm and a 143mm hub length (the distance through the central bore). The central bore contains 34.9mm Taper Roller Bearings for lower rolling resistance and making the wheel suitable for power towing. The Load Capacity is 6120Kg. - In Stock
Castor Wheel 50mm | Nylon, 54kg, 6mm Plain Bore (WNY20)
£1.2950mm White Nylon Castor Wheel with 6.4mm Plain Bor... Read Moree, 17mm Tread Width and 27mm hub length (the distance through the central bore). The load capacity of this wheel is 54kg - In Stock
Castor Wheel 63mm | Nylon, 122kg, 9mm Plain Bore (WNY25)
£1.7363mm White Nylon caster wheel with 33mm Hub Length... Read More (the distance through the central bore), 22mm Tread Width and a 9.5mm Smooth Plain Bore. Load Capacity = 122kg.Nylon Castor wheels are probably the most commonly used wheel because they offer a high load capacity for the lowest cost. They are also extremely strong, maintenance free, do not damage or mark concrete flooring and they are extremely resistant to water, salts, greases, acids and alkalis. - In Stock

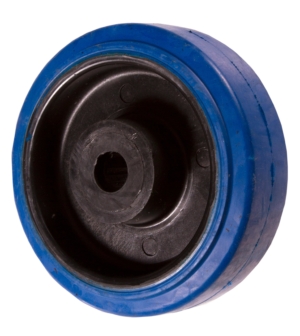

Castor Wheel 75mm | Rubber Tyre / Nylon Centre, 90kg, 12mm Plain Bore (KW075RN1240)
Original price was: £4.46.£2.01Current price is: £2.01.Sale!75mm Castor Wheel with a Blue Elastic Rubber Tyre ... Read Moreon a Black Nylon Centre Wheel. This wheel has a 12mm Smooth Plain Bore and a Load Capacity of 90kg using manual propulsion at 4km/h.***End of Line Sale***Key Specifications:- Wheel Diameter: 75mm
- Tread Width: 32mm
- Hub Length: 40mm
- Bearing Type: 12mm Plain Bore
- Load Rating: 90kg
- In Stock
Castor Wheel 100mm | Black Rubber Tyre / Metal Centre, 70kg, 12mm Roller Bearing (MZW100RMB)
Original price was: £4.78.£2.39Current price is: £2.39.Sale!100mm Black Rubber Tyred Wheel on... Read More a Silver Pressed Steel Centre with 12mm Roller Bearing. The Load Capacity is 70kg using manual propulsion at 4km/hKey Specifications:- Wheel Diameter: 100mm
- Tread Width: 30mm
- Hub width: 40mm
- Bearing Type: 12mm Roller Bearing
- Tyre Material: Black Rubber
- Wheel Centre Material: Flanged Pressed Steel Centre
- Tyre Hardness: 85 Shore A
- Load Capacity: 70kg
- In Stock
Castor Wheel 75mm | Nylon, 170kg, 12mm Plain Bore (WNY3M12)
£2.5475mm White Nylon Castor Wheel with 12mm Smooth Pla... Read Morein Bore, 40mm Hub Length and 25mm Tread Width. Load Capacity = 170kg. - In Stock
Castor Wheel 100mm | Grey Rubber Tyre / Metal Centre, 70kg, 12mm Roller Bearing (MZW100RMBGREY)
Original price was: £5.94.£2.67Current price is: £2.67.Sale!100mm Grey Rubber Tyred Wheel on ... Read Morea Silver Pressed Steel Centre with 12mm Roller Bearing. This is a non-marking wheel with a Load Capacity of 70kg using manual propulsion at 4km/hKey Specifications:- Wheel Diameter: 100mm
- Tread Width: 30mm
- Hub width: 40mm
- Bearing Type: 12mm Roller Bearing
- Tyre Material: Grey Rubber (Non-Marking)
- Wheel Centre Material: Flanged Pressed Steel Centre
- Tyre Hardness: 85 Shore A
- Load Capacity: 70kg
- In Stock
Castor Wheel 100mm | Polypropylene, 125kg, 12mm Plain Bore (KW100ED1240)
£2.78100mm Grey Polypropylene (Plastic) Wheel with 12mm... Read More Smooth Plain Bore. The wheel has a 32mm Tread Width and 40mm Hub Length (the distance through the central Bore) and the load capacity is 125kg using manual propulsion at 4km/h. - In Stock
100mm White Nylon Wheel, 12mm Roller Bearing, 150kg (MVW100NY1B)
Original price was: £6.90.£3.10Current price is: £3.10.Sale!100mm White Nylon Castor Wheel with 12mm Roller Be... Read Morearing, 36mm Tread Width and 40mm Hub Length (the distance through the central bore). The load Load Capacity is 150kg.The 100mm wheel wheel comes with thread guards, an M12x36mm Needle Roller Bearing, a Steel Tube (12mm OD X 8mm ID x 40mm Length) and a 8mm x 59mm Bolt & nut.Without the castor wheel's tube fittings, the plain bore is 20mm. - Out of Stock - On the Way
Castor Wheel 50mm | Rubber Tyre / Nylon Centre, 27kg, 6.4mm Plain Bore (WRN20)
£3.1250mm Rubber Tyred / Nylon Centre (Wheel - Resilien... Read Moret Tread) with Plain Bore. Load Capacity = 27kg - In Stock
80mm Red Polyurethane Tyre Wheel, 12mm Roller Bearing, 130kg (MVW080PN1B)
Original price was: £6.13.£3.37Current price is: £3.37.Sale!80mm Castor Wheel with a ... Read MoreRed Polyurethane Tyre on a Grey Nylon Centre and a 130kg Load Capacity.Key Features:- Wheel Diameter: 80mm
- Wheel Tread Width: 32mm
- Hub Length: 40mm (the distance through the central bore)
- Wheel Material: Red Polyurethane Tyre on a Grey Nylon Centre
- Bearing Type: Roller Bearing
- Shore Hardness: 95A
- Load Rating: 130kg (using manual propulsion at 4km/h)
- Metal Thread guards,
- M12x36mm Needle Roller Bearing,
- a Steel Tube (12mm OD X 8mm ID x 40mm Length); and,
- a 8mm x 59mm Bolt & Nut.
- In Stock

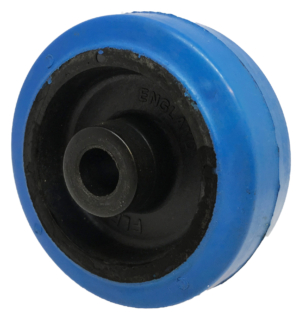

Castor Wheel 63mm | Rubber Tyre / Nylon Centre, 45kg, 9.5mm Plain Bore (WRN25)
£4.1963mm Rubber Tyred / Nylon Centre (Wheel - Resilien... Read Moret Tread) with Plain Bore. Load Capacity = 45kg - In Stock
Castor Wheel 125mm | Nylon, 150kg, 8mm Ball bearing (7335090)
£4.35125mm White Nylon Wheel Castor wheel with Grey Thr... Read Moreead Guards and a single ball bearing held in place by two integral thread guards. The load capacity of this caster wheel is 150kg using manual propulsion at 4km/h (walking speed)Key Specifications:- Tread Width: 35mm
- Hub Length: 45mm (Including the Thread Guards)
- Bore Size: 8mm
- Bearing Type: Single Ball Bearing
- Wheel Hardness: Shore D 75
- High Load Capacity
- Wear Resistant
- Low Rolling Resistance
- Extremely resistance to water, salts, greases, acids and alkalis
- In Stock
Castor Wheel 75mm | Nylon, 60kg, 10mm Plain Bore (075NY02)
£4.3775mm White Nylon Wheel with a 24mm Hub Length and ... Read Morea 10mm Plain Bore. Load Capacity = 60kg - In Stock
Castor Wheel 75mm | Nylon, 160kg, 10mm Plain Bore (075NY03)
£4.3775mm White Nylon Wheel with a 30mm Hub Length and ... Read Morea 10mm Plain Bore. Load Capacity = 160kg
