Description

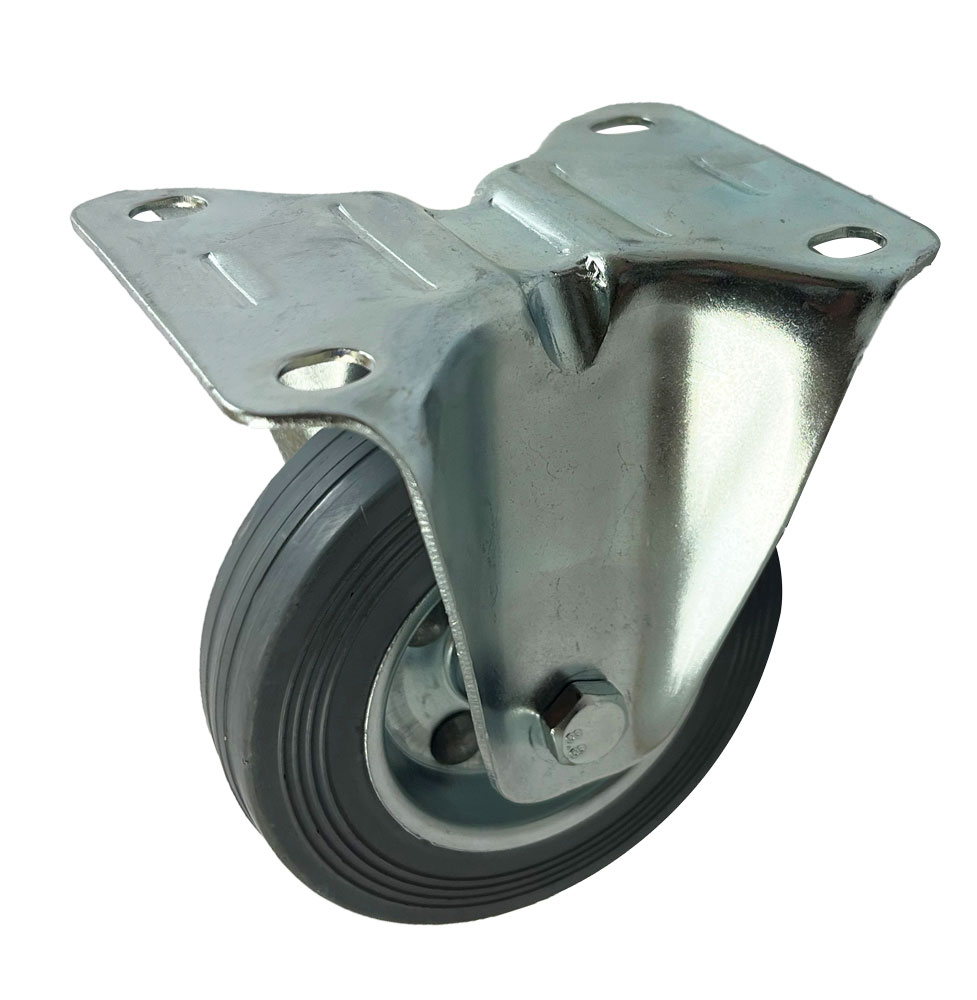

100mm Grey Rubber Tyre on a Pressed Steel Centre with a roller bearing fitted into a robust pressed steel Fixed castor bracket. The wheel has a grey Non-Marking Tyre and the Fixed Bracket has a 4 hole top plate measuring 105x80mm with 80x60mm bolt hole spacing. The load capacity of this castor is 70kg using manual propulsion at 4km/h (walking speed)
Key Specification:
- Top Plate Size: 105x80mm
- Bolt Hole Centres: 80/76X60mm
- Bolt Hole Size: 9mm (to suit M8 Fixing Bolts)
- Overall Height: 125mm
- Tread width: 30mm
- Bearing Type: Roller Bearing
- Wheel Material: Grey Non-Marking Rubber / Pressed Steel Centre
- Tyre Hardness: Shore A 85
Key Features:
- High Load Capacity
- Low Rolling Resistance
- Reduce Vibration
- Low noise Operation
