Description

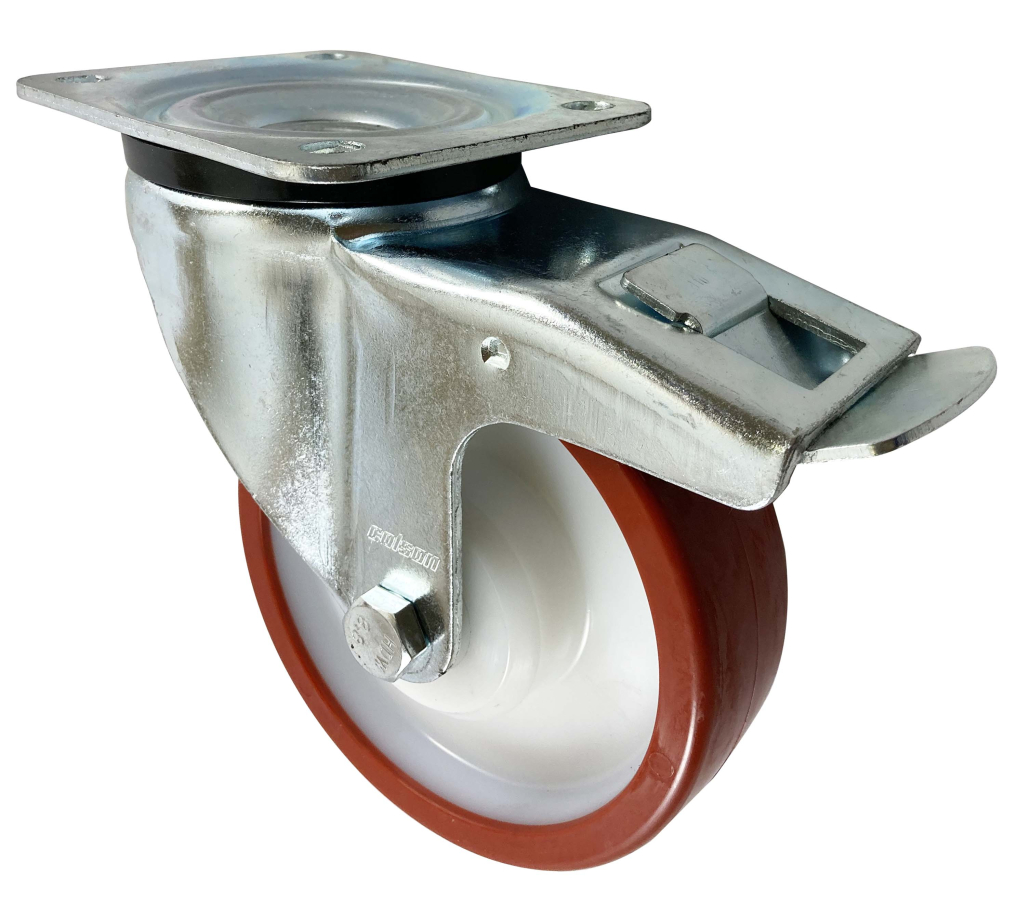

150mm swivel castor with total lock brake, designed for smooth movement, durability, and reliable load support in demanding industrial environments.
This castor features a polyurethane tyre bonded to a white nylon centre, delivering excellent floor protection, low rolling resistance, and quiet operation. The integrated swivel and wheel brake ensures both rotation and wheel movement can be securely locked, providing maximum stability when stationary.
Built with a pressed steel bracket and durable zinc finish, the castor is engineered for long service life, while the roller bearing ensures effortless mobility under heavy loads.
Key Specifications
- Top Plate Size: 135 x 110mm hole centres
- Bolt Hole Centres: 105 x 80/75mm
- Bolt Hole Size: 11 x 14mm (suits 10mm Fixing Bolt)
- Brake Type: Total Stop Brake (both wheel and swivel rotation are locked when applied)
- Castor Offset: 53mm
- Swivel Radius: 185mm
- Overall Height: 188mm
- Wheel Diameter: 150mm
- Wheel Material: Red Polyurethane tyre
- Wheel Centre: White nylon
- Tyre Hardness: 98 +/- 3 Shore A
- Bearing Type: Roller bearing
- Load Rating: 500kg manual propulsion ~4km/h (walking speed)
This castor is ideal for industrial trolleys, warehouse equipment, machinery bases, and heavy-duty mobile units. The polyurethane tread provides excellent grip and wear resistance, while also protecting floors from damage – making it suitable for both factory and commercial environments.
The double ball bearing swivel head design ensures smooth steering and durability under continuous use.
