Description

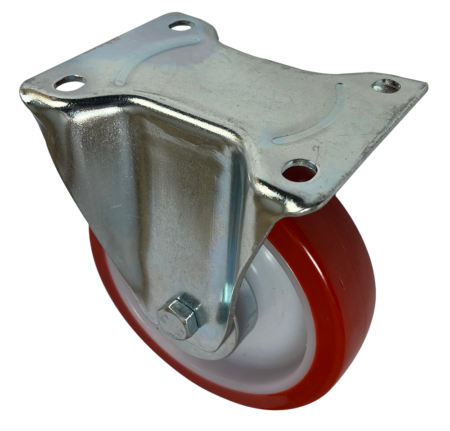

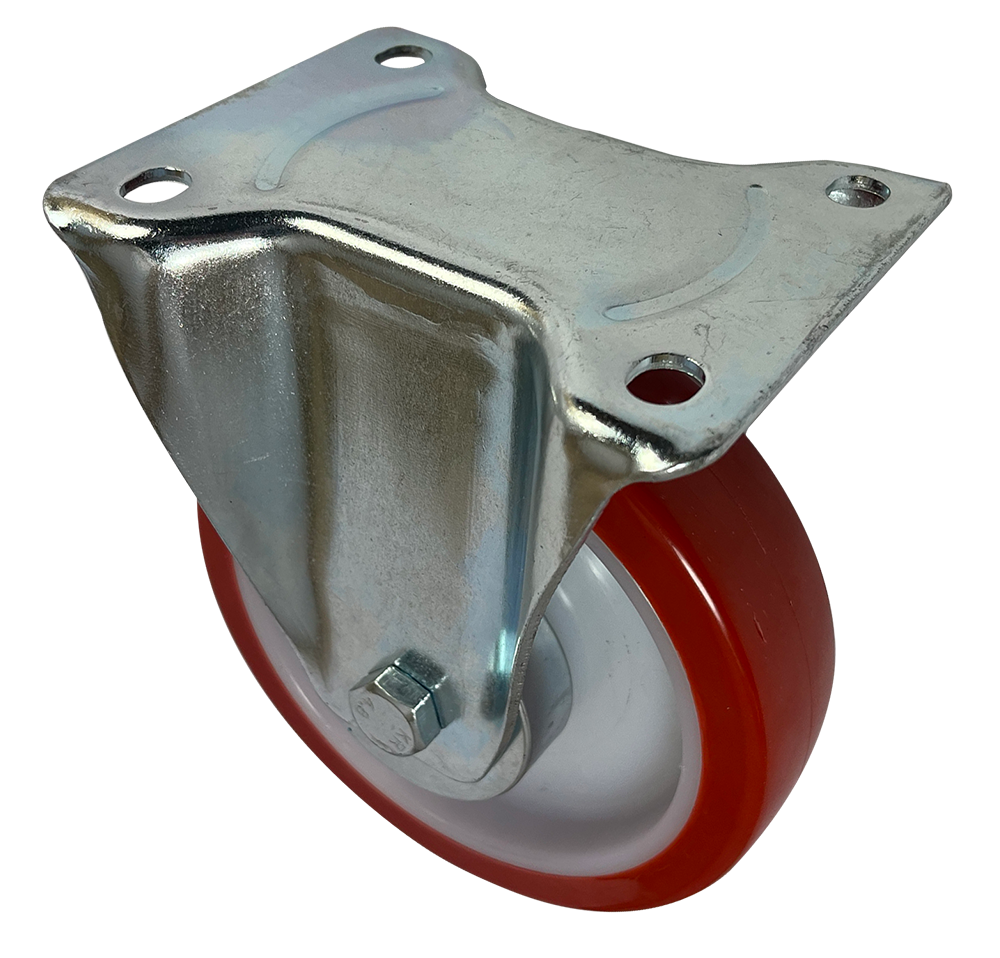

Fixed Castor (Pressed Steel). This castor has a 160mm Wheel with a Red Polyurethane Tyre on a White Nylon Centre with a Roller Bearing. The Load Capacity is 300kg using manual propulsion at 4 km/h.
Fixed castors – sometimes called rigid castors – are the perfect choice for applications where straight-line movement and stability are required.
Key Specifications:
- Top Plate Dimensions: 130x110mm
- Fixing Bolt Hole Spacings: 105x80mm
- Bolt Hole Size: 11mm (suits 10mm fixing bolt)
- Overall Height: 190mm
- Tread Width: 40mm
- Shore Hardness: Shore A 92+3
- Load Rating: 300kg (manual propulsion at 4km/h)
This is a quality product that is suitable for a wide variety of applications. The polyurethane tyred wheel has a high load capacity, is resistant to wear and tear and has a low rolling resistance. Polyurethane is a slightly softer tread than a hard tread (such as nylon) and offers a quieter operation and reduces vibrations making it more comfortable for users.
