Description

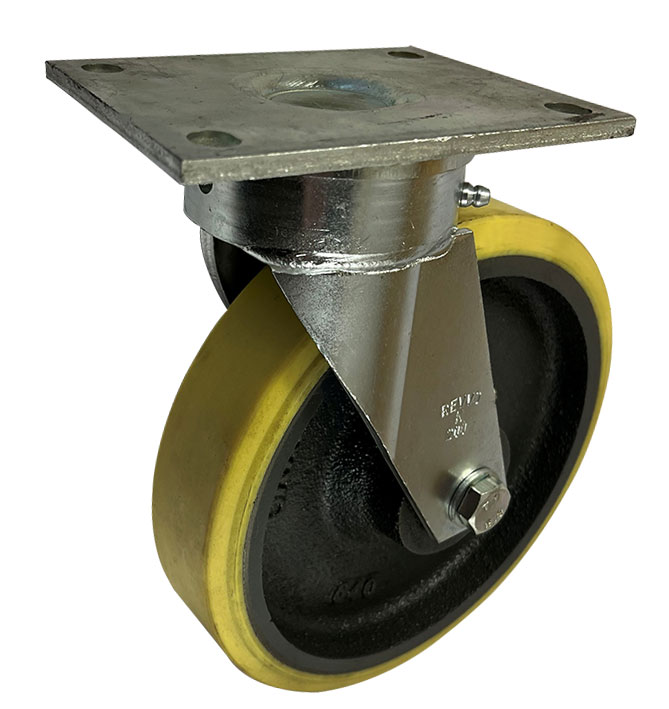

Heavy Duty Swivel Castor (200mm) – Forged Steel (TSK Series)
Load Capacity: 1000kg (manual use up to 4 km/h)
Wheel Type: Revvothane® Polyurethane Tyre on Cast Iron Centre (with roller bearing)
Product Overview
This heavy-duty swivel castor is built for demanding industrial applications where strength, smooth movement, and long service life are essential. Made from forged steel with a 6mm thick top plate, it’s designed to handle high loads while maintaining excellent manoeuvrability.
The kingpinless swivel head includes a 60mm ball race with hardened steel balls running on a hardened raceway – providing superior durability, impact resistance, and precise tracking.
A hydraulic grease nipple allows for easy maintenance and long-lasting performance.
Key Features
- Heavy gauge forged steel construction for strength and reliability
- Revvothane® polyurethane tyre for excellent wear resistance and floor protection
- Cast iron wheel centre with a clear lacquer coating for corrosion protection
- Kingpinless swivel head for smoother turning and better stability
- Hydraulic grease nipple for convenient lubrication and extended service life
Key Specifications
- Top Plate Size: 130 x 105mm
- Bolt Hole Centres: 105 x 80/75 mm
- Bolt Hole Size: 11mm (fits 10 mm bolts)
- Overall Height: 241 mm
- Castor Offset: 55 mm
- Swivel Radius: 155 mm
- Bearing Type: Roller Bearing
- Tyre Hardness: 92–97 Shore A
- Load Capacity: 1000 kg at 4 km/h
