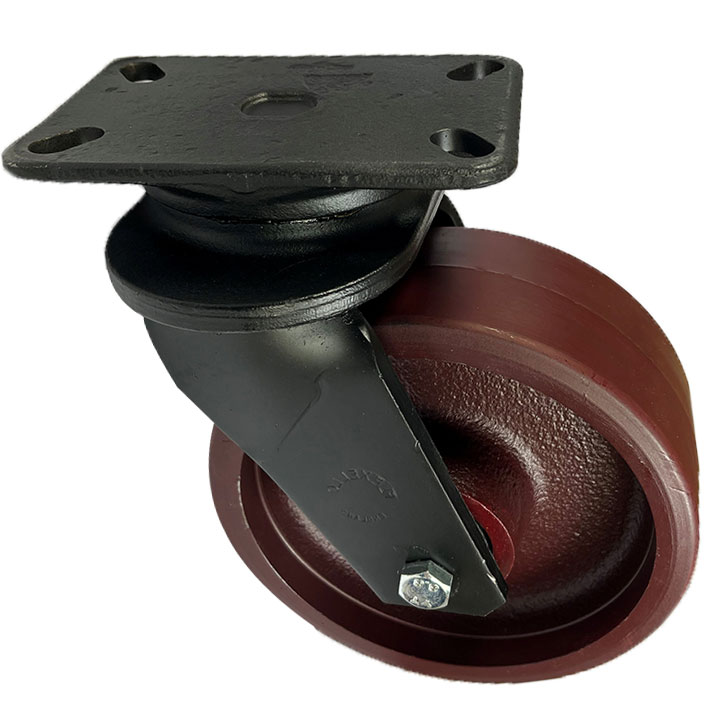

200mm Swivel Castor 1270kg Load Capacity, Polyurethane / Cast Iron Centre, Fabricated Bracket (KV83SUTM)

Description

Black Painted Fabricated Castor (Flexello KV Series) with and extra wide 200mm Polyurethane Tyre on a Cast Iron Centre wheel. Load Rating 1270kg.

This castor has a enormously strong swivel head high quality with a Taper Roller in the Swivel Head and in the wheel. This allows for excellent manoeuvrability and is able to be power towable to 6km/h.

Key Specifications:

• Top Plate Dimensions: 175x140mm
• Bolt Hole Centres: 140×150 / 133x76mm (slotted Bolt Holes)
• Mounting Bolt Size: 12mm
• Overall Height: 264mm
• Offset: 62mm
• Swivel Radius: 162mm
• Wheel Material: Red Polyurethane Tyre on s Red Painted Cast Iron Centre
• Wheel Tread Width: 76mm
• Bearing Type: Taper Roller Bearing
• Load Capacity: 1270kg
