Description

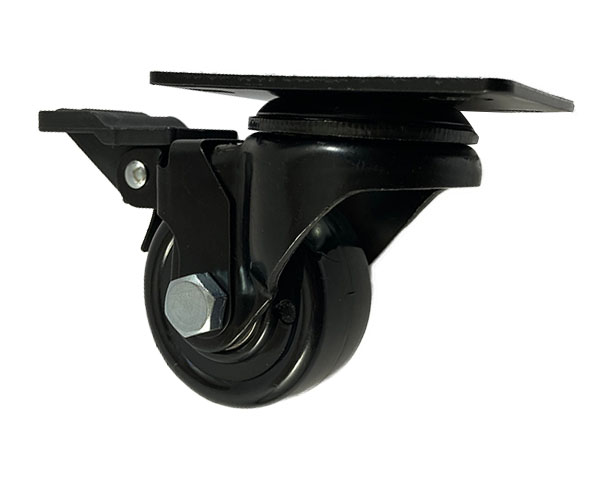

50mm Low Level swivel with wheel brake castor (Black Painted Frame). This High Load small and compact Low Level compact castor has an overall height of 71mm and a Black Nylon Wheel with ball bearings. The Load Capacity is 200kg using manual propulsion at 4km/h (Walking speed)
When the brake is applied, the wheel is braked but the swivel head is able to rotate freely.
Key Specifications:
- Top Plate Size: 71x55mm
- Fixing Bolt Hole Centres: 53x36mm
- Fixing Bolt Hole size: 6mm
- Overall Height: 71mm
- Swivel Radius: 76mm
- Wheel Material: Black Nylon
- Bearing Type: Ball Bearings
- Tread width: 24mm
- Load Capacity: 200kg
