Description
63mm Black Footmaster Levelling Castor with a Black Powder Coated Finish and a 4 hole Top Plate Fitting.
Key Specifications:
- Top Plate Dimensions: 90x90mm
- Bolt Hole Centres: 70x70mm
- Bolt Hole Size: 8.5mm
- Overall Height: 102+15mm: When the footpad is retracted and operating on the wheel, the overall height is 102mm. The rubber pad can extend 15mm to raise the wheel off the ground and provides the levelling function
- Castor Offset: 46mm
- Castor Wheel Material: Black Nylon (Nylon 66)
- Wheel Tread Width: 28mm
- Method of operation: Height adjustment with integrated retractable ratchet
- Load Capacity: 500kg Static and 250kg Dynamic
Because of the lifting and lowering function of the Foot Master castor, like all Jacking Castors, it is important understand that each castor may be subjected to HALF THE TOTAL WEIGHT. Therefore, the recommended load capacity for each Foot Master Levelling Castor is half the castor’s Static Load Capacity, that is, when the castors’ levelling function is not being used. The load capacity of the Footmaster Castor when it is being moved and levelled is given by the Dynamic Load Capacity.

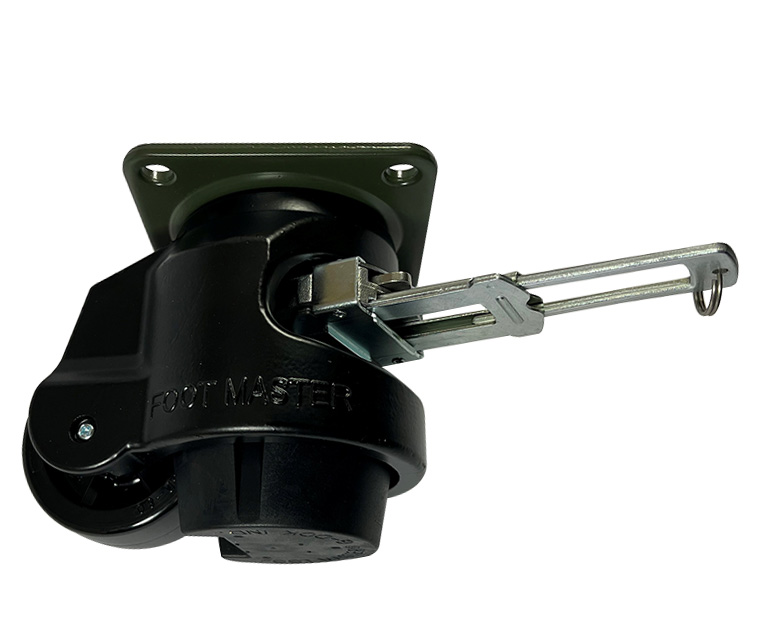

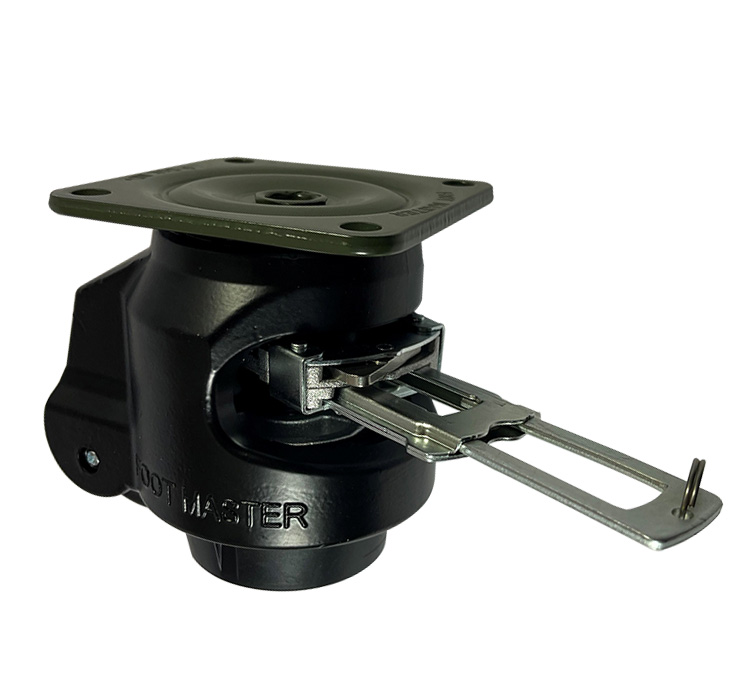

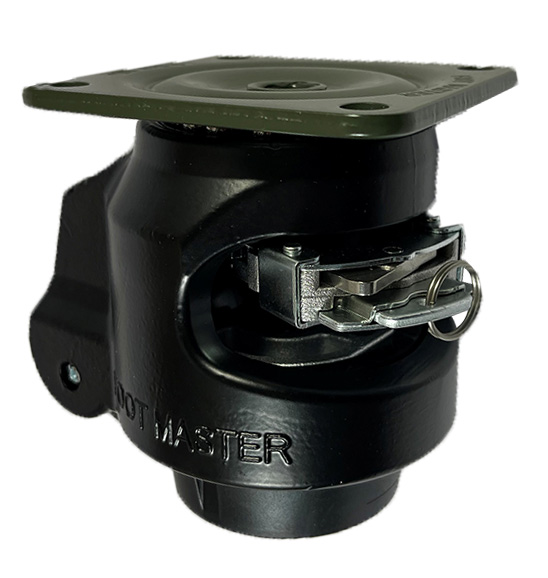

The Footmaster levelling castor is a multi-functional swivel castor that provides mobility, levelling and anti-vibration functions. This allows users to move and position large equipment into place with added stability using the levelling and anti-vibration features.
