Description

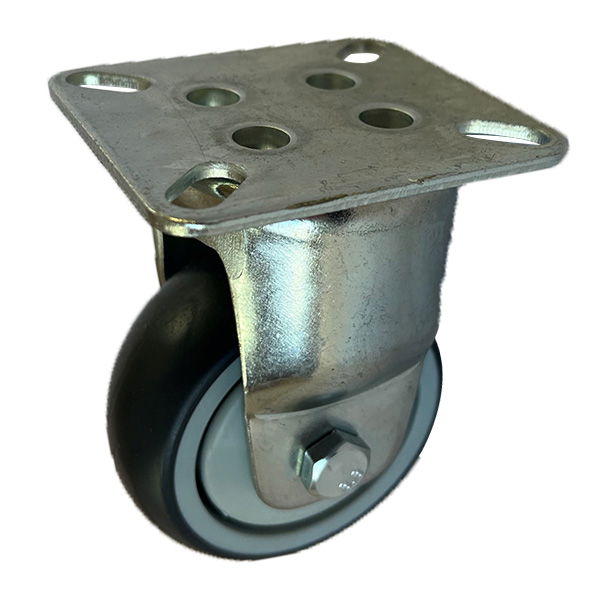

75mm Fixed [Rigid] with a Top Plate fitting with 55.7×46.5mm Bolt Hole Centres. The fixing holes are slotted to 61.5/50 x 51.5/41.5mm and suit M8 Fixing Bolts. The Castor Wheel has a Grey Thermoplastic Rubber Tyre on a Grey Polypropylene Centre and is fitted with a single ball bearing which reduces the effort required to push. This apparatus / institutional castor has a load capacity of 75kg using manual propulsion at 4km/h (walking speed).
Key Specifications:
- Mounting Type: Top Plate Fitting
- Top Plate Dimensions: 77x67mm
- Bolt Hole Centres: 61.5/50×51.5/41.5mm (Slotted)
- Bolt Hole Size: 8.5x11mm
- Overall Height: 103mm
- Wheel Diameter: 75mm
- Wheel Tread Width: 28mm
- Wheel Material: Grey Thermoplastic Rubber on a Grey Polypropylene Centre
- Tyre Hardness: 85 Shore A
- Bearing Type: Single Ball Bearing
- Load Rating: 75kg
