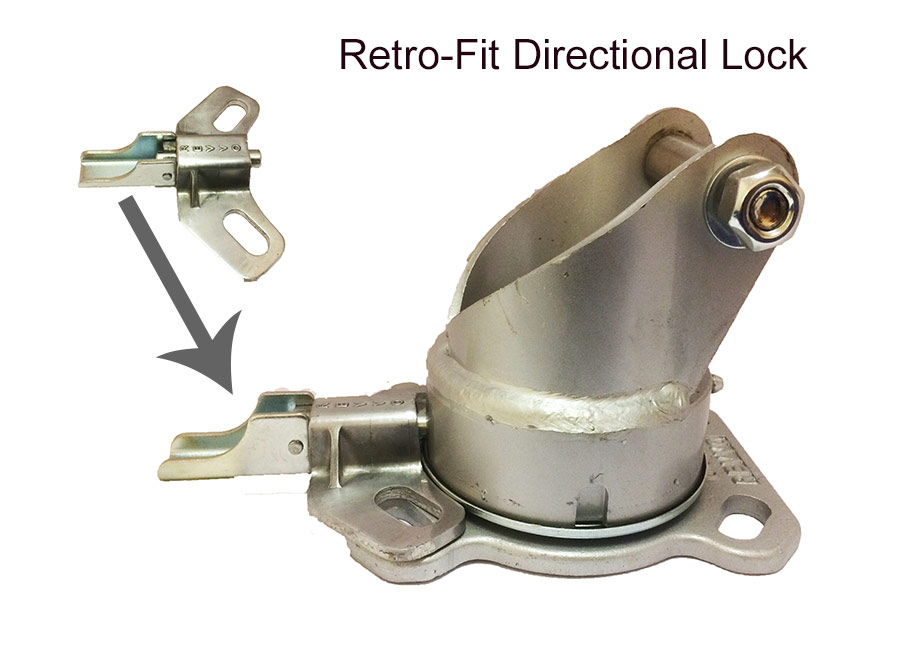

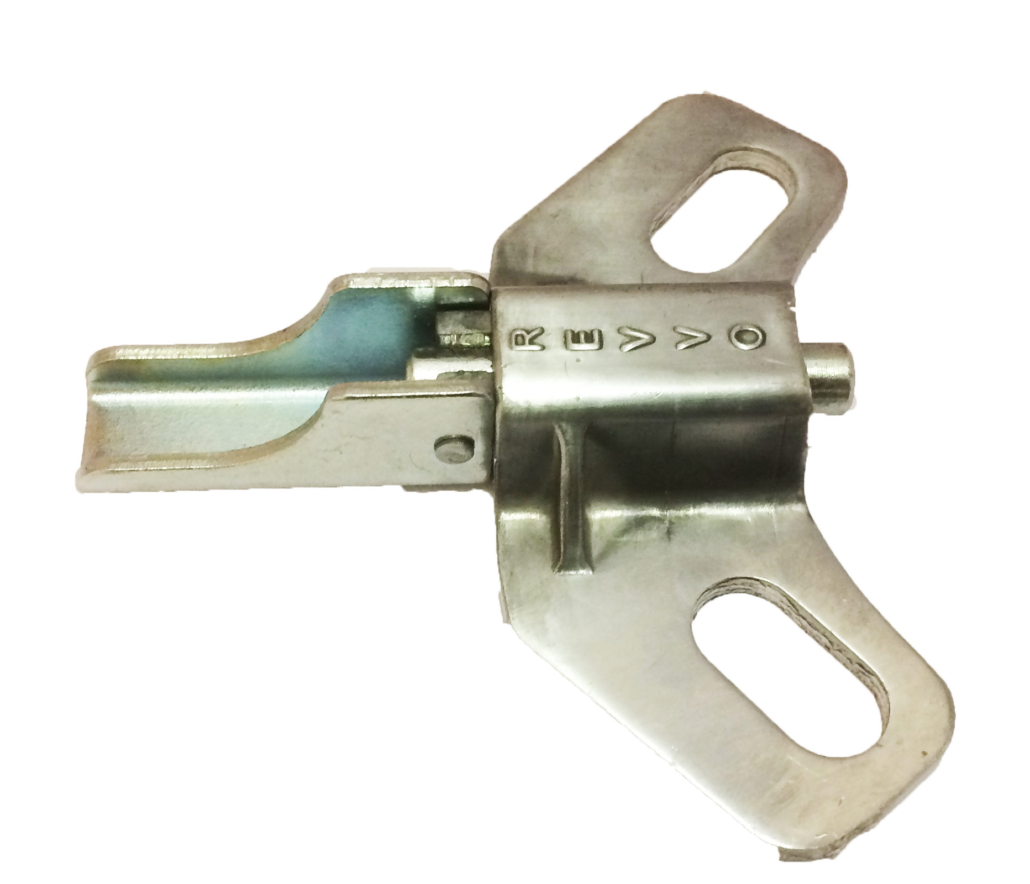

Retro-fit Directional Lock for the H Series Swivel Castor (4-Way Directional Lock). Converts any Revvo H Series ‘swivel only’ castor into fixed for straight line travel. Insert the fixing bolt through both the directional lock bolt holes and the castors bolt holes when fitting to equipment. Because of this, it in effect, shortens your bolt length by 4mm (the thickness of the D-lock).
PLEASE NOTE: This product should not be used with castor with a foot because the brake makes contact with the Directional Lock and affects the swivel action. It can be used with a side mounted wheel lock.
Delivery Information
Available shipping methods for this product:
Standard 2 to 3 day delivery service*:
Order Value £0.00 - £50.00: £8.00 (excl. VAT)
Order Value £50.01 - £100.00: £5.50 (excl. VAT)
Order Value £100.01+: Free Delivery
*Applicable for delivery in the United Kingdom excluding Northern Ireland, Scottish Highlands and the Channel Islands where additional charges apply.
Next Day Delivery Service:
Please contact Our Sales Team on 0121 772 1010 (8:30am - 5.00pm, Mon - Fri)
Free Click & Collect Service:
From our Birmingham, UK, Warehouse & Trade Counter
There are no reviews yet.
Only logged in customers who have purchased this product may leave a review.
150mm Heavy Duty Top Plate Swivel Castor (Fabricat... Read Moreed Castor) with 105x80mm Fixing Bolt Hole Centres. Rubber Tyre / Cast Iron Centre Wheel with Roller Bearing. Load Capacity = 370kgFeatures of the H Series Castor
The Genuine Revvo H Series castor is made from heavy gauge forged steel with a hardened ball race in the swivel race that serve as both thrust and radial bearings.
The swivel head comes with a metal swivel seal and hydraulic grease nipple
The closed base of the swivel ring prevents downward escape of lubricant
The side plates are press formed to a cylindrical shape to give the best strength to weight ratio
A four way direction lock can be purchased and fitted to the castor 9999-0181
150mm Heavy Duty Top Plate Swivel Castor (Fabricat... Read Moreed Castor) with 105X80mm Fixing Bolt Hole Centres. Black Rubber Tyre on a Cast Iron Centre Wheel with Ball Bearings. Load Capacity = 370kg
150mm Heavy Duty Top Plate Swivel Castor (Fabricat... Read Moreed Castor) with 105x80 Hole Centres. Polyurethane Tyre / Cast Iron Centre Wheel with Ball Bearing. Load Capacity = 730kgThe Bolt Holes of the H series castor are slotted to 120x60mm and 105x80/75mm.
Use 12mm diameter bolts when fitting at 120 x 60mm
Use 10mm diameter bolts when fitting at 105x80/75mm
Features of the H Series Castor
The Genuine Revvo H Series castor is made from heavy gauge forged steel with a hardened ball race in the swivel race that serve as both thrust and radial bearings.
The swivel head comes with a metal swivel seal and hydraulic grease nipple
The closed base of the swivel ring prevents downward escape of lubricant
The side plates are press formed to a cylindrical shape to give the best strength to weight ratio
A four way direction lock can be purchased and fitted to the castor 9999-0181
150mm Heavy Duty Top Plate Swivel Castor (Fabricat... Read Moreed Castor) with 105x80mm bolt hole centres and 202mm overall height. The wheel has a Revvothane Polyurethane Tyre on a Cast Iron Centre with a Roller Bearing. Load Capacity = 730kgThe Bolt Holes of the H series castor are slotted to 120x60mm and 105x80/75mm.
Use 12mm diameter bolts when fitting at 120 x 60mm
Use 10mm diameter bolts when fitting at 105x80/75mm
Features of the H Series Castor
The Genuine Revvo H Series castor is made from heavy gauge forged steel with a hardened ball race in the swivel race that serve as both thrust and radial bearings.
The swivel head comes with a metal swivel seal and hydraulic grease nipple
The closed base of the swivel ring prevents downward escape of lubricant
The side plates are press formed to a cylindrical shape to give the best strength to weight ratio
A four way direction lock can be purchased and fitted to the castor 9999-0181
150mm Heavy Duty Top Plate Swivel Castor (Fabricat... Read Moreed Castor) with 105x80 Hole Centres. Nylon Wheel with Ball Bearing. Load Capacity = 800kgFeatures of the H Series Castor
The Genuine Revvo H Series castor is made from heavy gauge forged steel with a hardened ball race in the swivel race that serve as both thrust and radial bearings.
The swivel head comes with a metal swivel seal and hydraulic grease nipple
The closed base of the swivel ring prevents downward escape of lubricant
The side plates are press formed to a cylindrical shape to give the best strength to weight ratio
A four way direction lock can be purchased and fitted to the castor 9999-0181
150mm Heavy Duty Top Plate Swivel Castor (Fabricat... Read Moreed Castor) with 105x80mm Fixing Bolt Hole Centres. Cast Iron Wheel with a 45mm Tread width and Roller Bearing. Load Capacity = 910kg.This caster wheel has a clear resin shellac finish. It combines strength and shock resistance with long life and economy and a very low tractive resistance which translates to ease of movement.This cast iron wheel is made from close grained castings sometimes described as semi-steel.
