Description

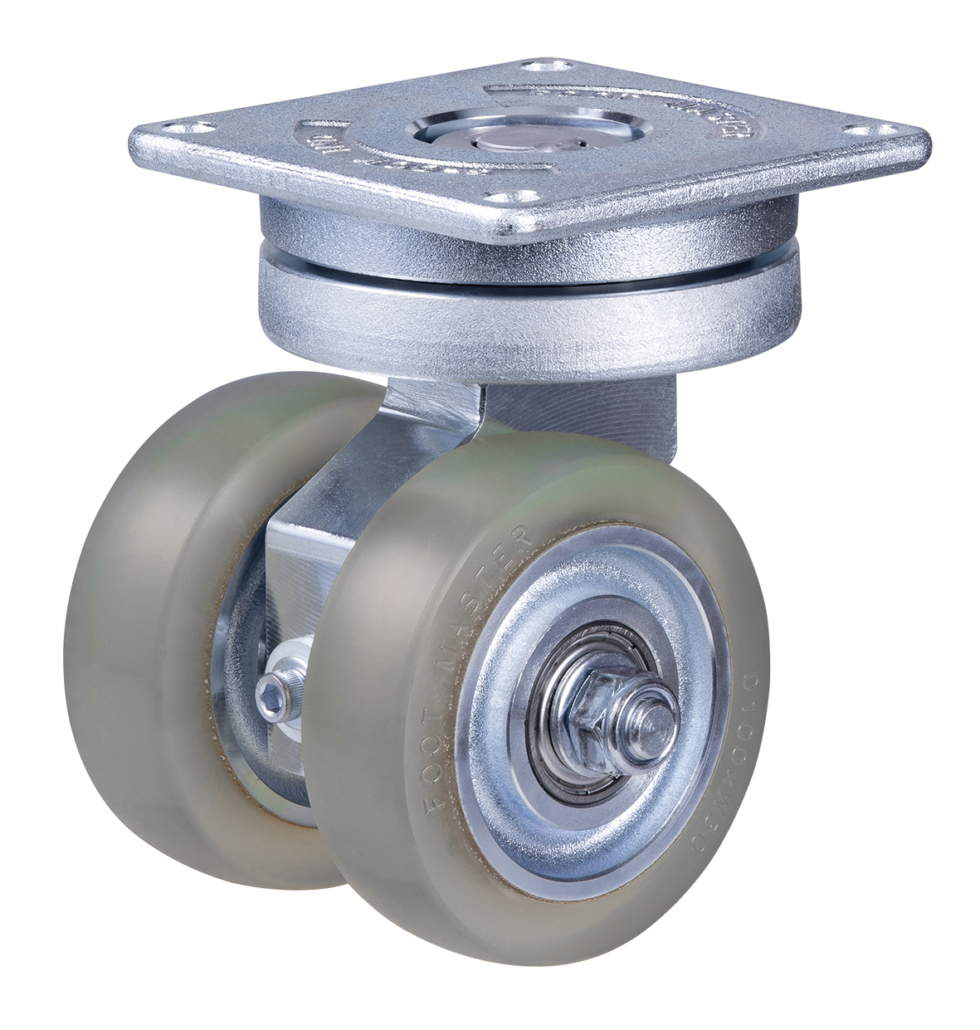

This Twin wheel 75mm Automated Guided Vehicle (AGV) Castor has a bracket made from strong Forged steel that is zinc plated. There is a hardened Taper Roller Bearing in he swivel head, which has a grease nipple, for smooth swivelling action and durability. The Top Plate is 112mm x 112mm and has 4 bolt holes that are spaced 92mm x 92mm, each with a 9mm hole diameter.
The castor is able to tilt +/- 5o from its central axis according to the flatness of the floor. This ensures that this castor’s wheels keep contact with the floor allowing smooth AGV movement and protection of the loaded cargo when changing directions (See illustration below)
The wheels are more widely separated from each other than most Twin Wheel Castors. When changing direction, the two wheels spin in opposite directions to each other which reduces the castor offset. The smaller the offset the less chance that the AGV will deviate from its designated line.
This castor frame has two wheels with a Polyurethane tyre (Shore A 95) on an Aluminium centre each containing ball bearings, The polyurethane wheel has excellent elasticity the minimises slipping that can happen when an AGV starts or stops. In addition, the elasticity also absorbs small shocks arising from small imperfections in the floor. The wheel itself is non marking and will not damage the floor.
