Ball Transfer Unit, 25.4mm Load Ball, Base Plate Type, 30kg Load Capacity (K25BTUBASE30)

Description

25.4mm Ball Transfer Unit – 2 Hole Base Plate, 30kg Load Capacity

This 25.4mm ball transfer unit is designed for smooth, multi-directional movement of loads across conveyor tables, workstations, transfer systems and material-handling equipment.

It features a durable chrome steel load ball, case hardened for improved wear resistance and long service life. The 2-hole base plate design allows the unit to be securely fixed in position, making it suitable for conveyor and handling applications where items need to be moved, rotated or repositioned with minimal effort.

With a 30kg load rating, this unit is ideal for light to medium-duty load transfer applications.

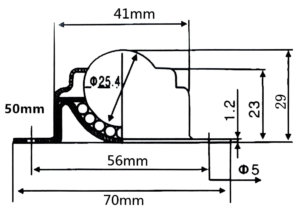

Key Specifications

• Load Ball Size: 25.4mm / 1 inch
• Load Rating: 30kg
• Base Plate Type: 2-hole fixing base plate
• Overall Width: 70mm
• Overall Height: 29mm
• Load Ball Material: Chrome steel
• Finish / Durability: Case hardened for improved wear resistance

Typical Applications

• Conveyor transfer tables
• Packing and assembly workstations
• Material-handling systems
• Load positioning and rotation
• Machine feed and transfer points

Load Capacity Guidance

When selecting a ball transfer unit, divide the total load weight by the minimum number of units expected to support the item at one time. Allow an additional safety margin for uneven loading, impact or off-centre loads.
