25.4mm Ball Transfer Unit – Pressed Steel “Flying Saucer” Model, 60kg Capacity
A 25.4mm ball transfer unit with a pressed steel flanged “Flying Saucer” style base, designed for smooth multi-directional movement on conveyor tables, transfer systems and workstations.
This model features a chrome steel load ball, smaller support balls, and a zinc plated pressed steel body for protection. It has a 3-hole fixing flange, a 40mm seating hole and a 60kg load rating.
Key Specifications
- Load Ball Size: 25.4mm / 1 inch
- Load Rating: 60kg
- Body Material: Pressed steel
- Finish: Zinc plated
- Load Ball: Chrome steel
- Fixing Type: 3-hole flanged “Flying Saucer” model

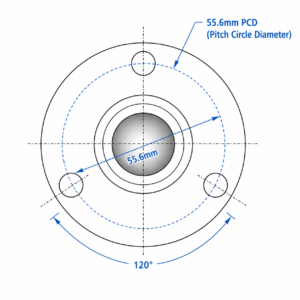

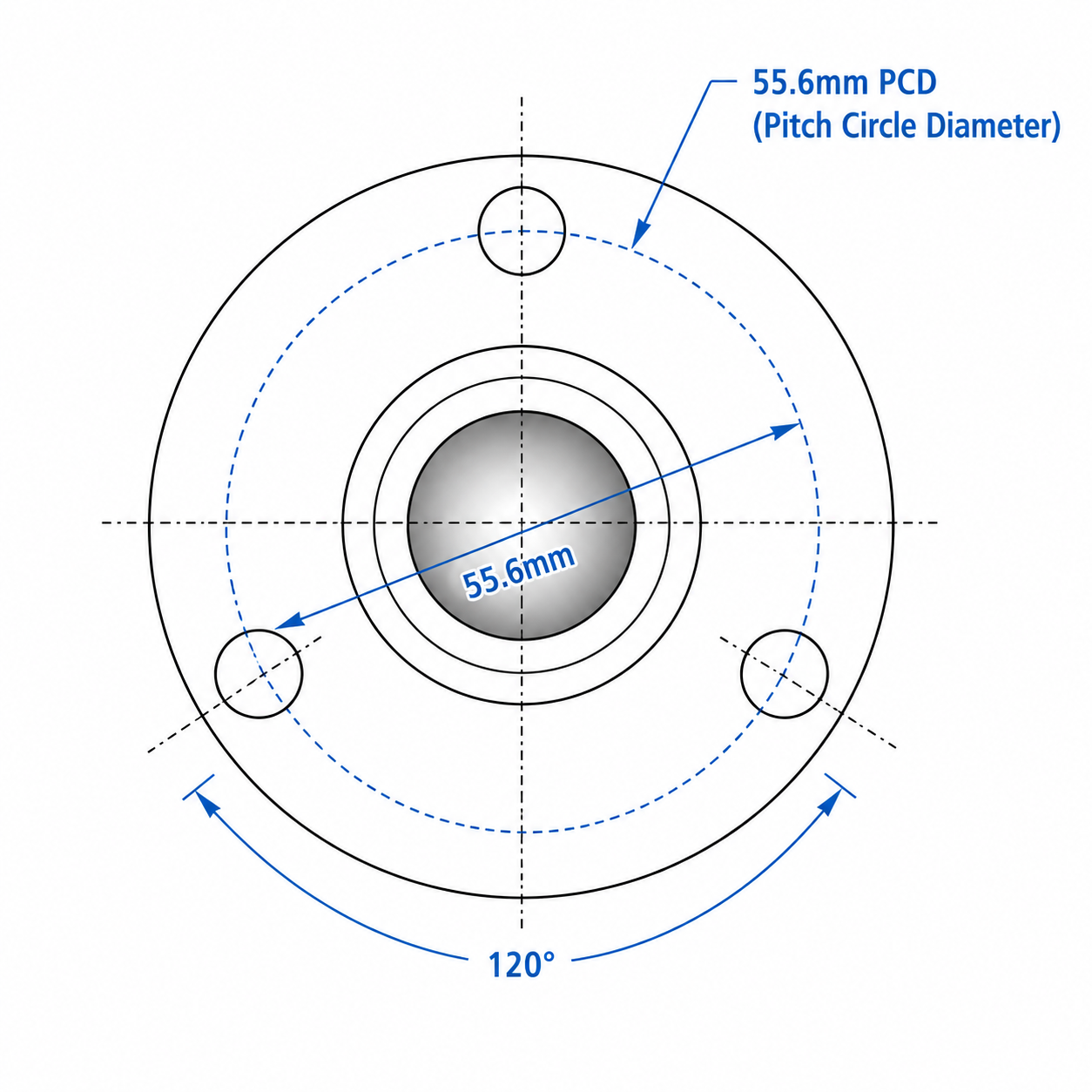

- Fixing Pattern: 3 fixing holes on a 55.6mm PCD
- Seating Hole: 40mm
Load Capacity Guidance
To estimate the required load rating, divide the total load weight by the minimum number of ball transfer units expected to support the item at one time. We recommend allowing a safety margin for uneven loading, impact or off-centre loads.
