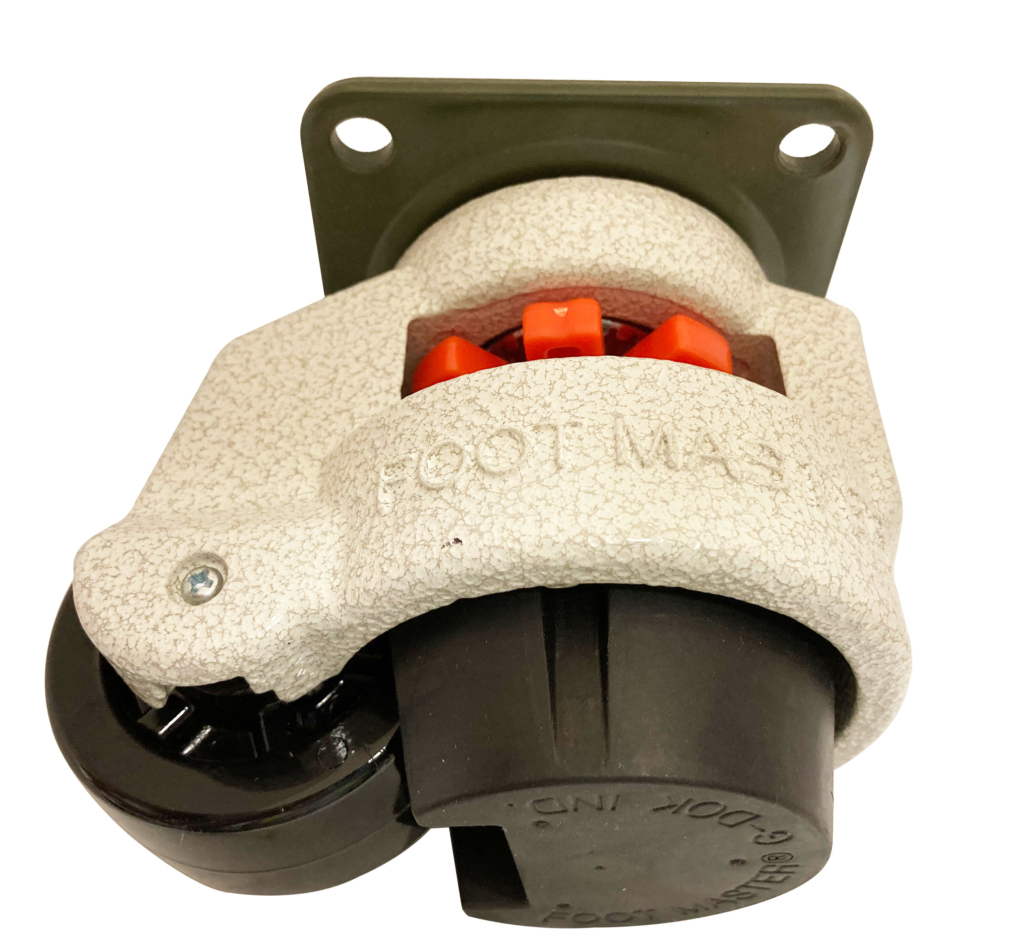

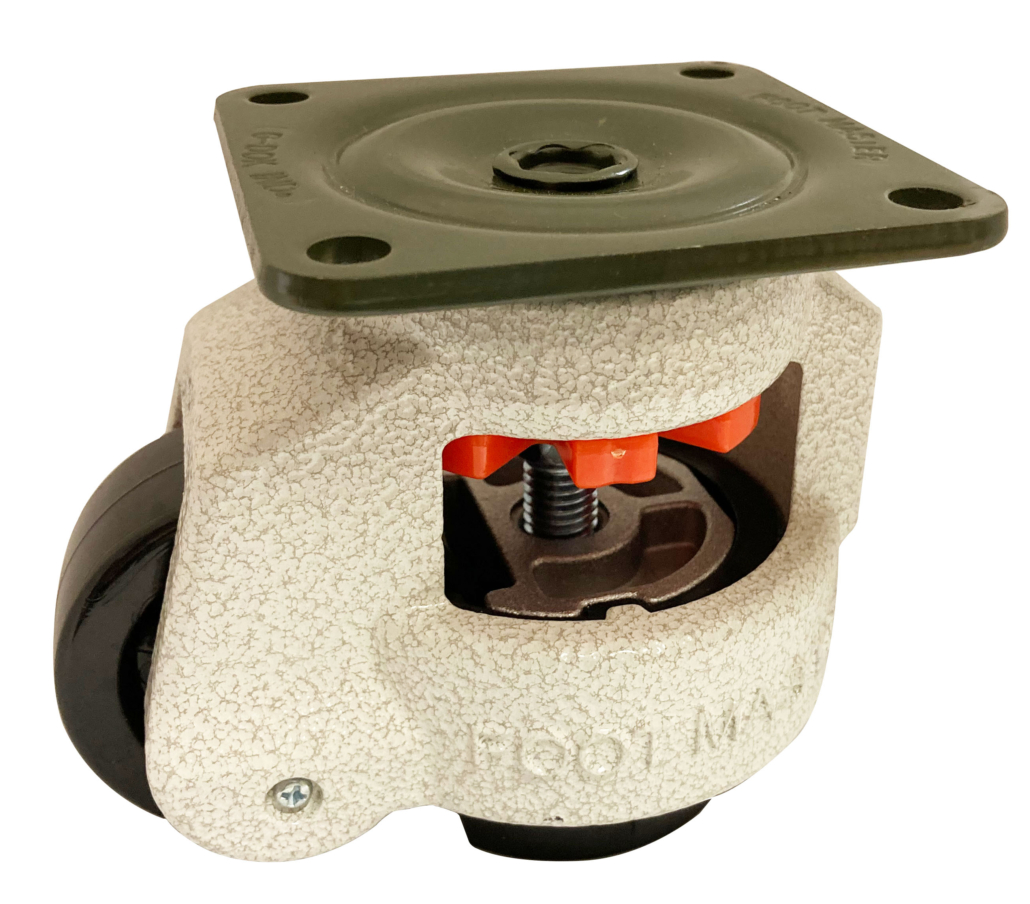

63mm Foot Master Levelling Castor – Ivory Powder-Coated Finish (Model: GD-80-F-NYN)
The Foot Master 63mm Levelling Castor combines mobility, stability, and vibration control in one compact design – ideal for moving and securing heavy equipment with precision.
Key Specifications:
- Wheel Diameter: 63mm
- Wheel Material: Premium black nylon with a 28mm tread width for durability and smooth rolling
- Top Plate: 4-hole mounting plate with 70mm x 70mm bolt hole centres for easy installation
- Finish: Ivory colour powder-coated for enhanced protection and a clean appearance
- Foot Pad: Die-cast aluminium construction with a rubber vibration-damping pad for stability and reduced noise
- Adjustment Mechanism: Nylon hand-wheel operation for effortless lifting and lowering
Load Capacity
- Static Load Capacity: 550kg
- Dynamic Load Capacity: 275kg
Because of the lifting and lowering function of the Foot Master castor, like all Jacking Castors, it is important understand that each castor may be subjected to HALF THE TOTAL WEIGHT. Therefore, the recommended load capacity for each Foot Master Levelling Castor is half the castor’s Static Load Capacity, that is, when the castors’ levelling function is not being used. The load capacity of the Footmaster Castor when it is being moved and positioned is given by the Dynamic Load Capacity.
