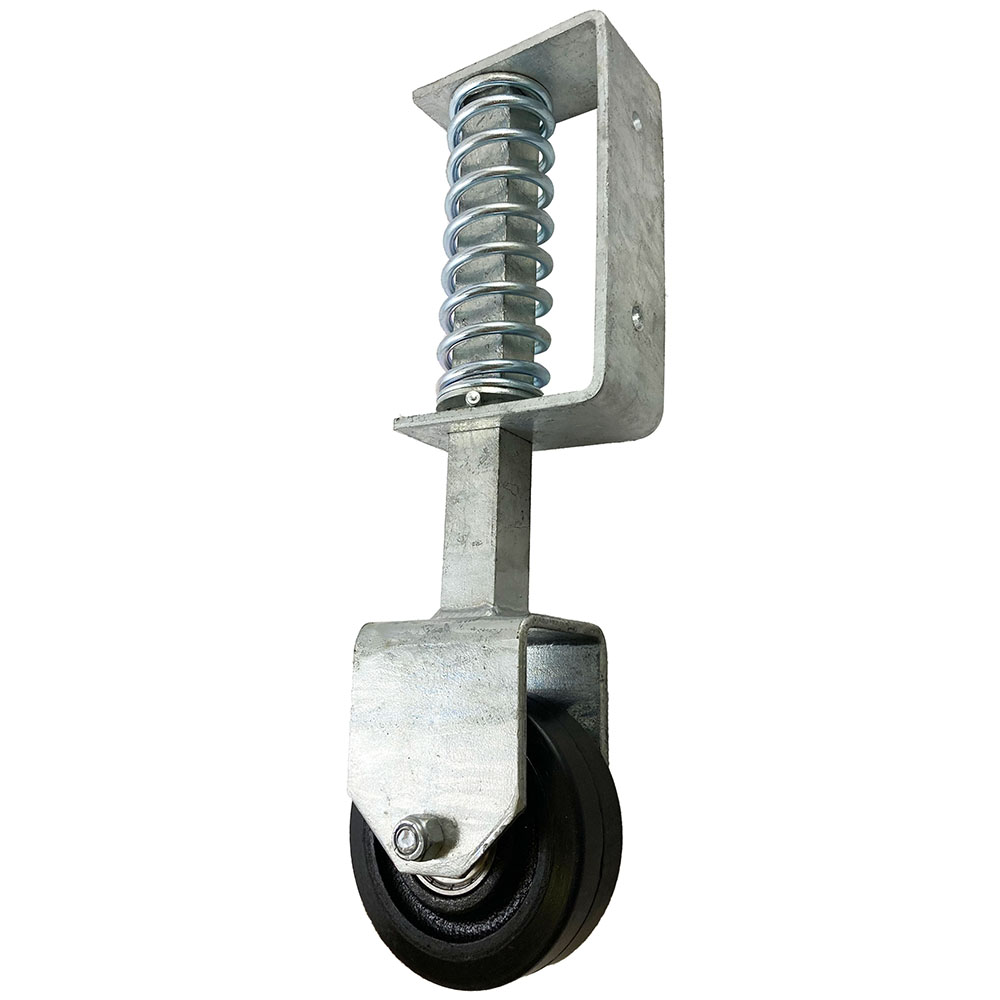

Spring Loaded Heavy Duty Gate Castor with a robust 1 inch (25.4mm) square central steel stem – Zinc Galvanised for outside use.
This gate castor has an overall height of 365mm and the fixing plate is pre-drilled with two 8mm fixing holes spaced 85mm apart. It moves on a fixed castor bracket fitted with a 100mm Rubber Tyre on a Cast Iron Centre Wheel with a 38mm Tread Width running on two ball bearings

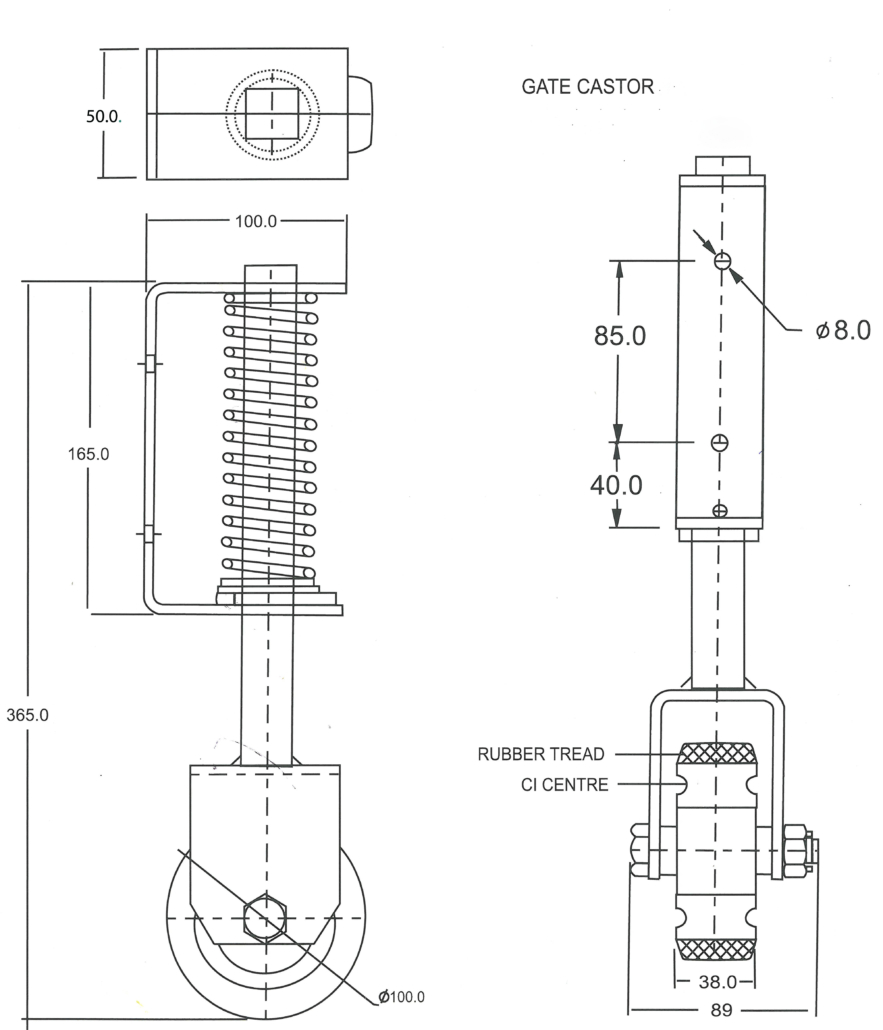

View 2D drawing for product dimensions by clicking on the thumbnail image above (below the main product image)
This heavy duty gate castor is spring loaded to help with opening and closing a heavy gate and is suitable for use on uneven surfaces. The gate castor will help support the gate to help prevent hinge damage. The spring begins compression with a 20kg load and is fully compressed with 100kg’s of force.
