Description

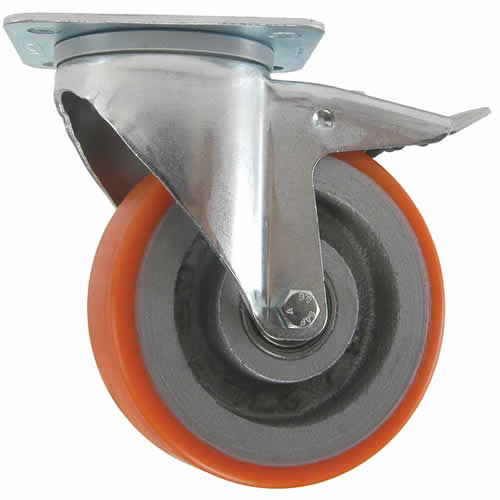

100mm Top Plate Swivel Castor with Total Stop Brake (Heavy Gauge Pressed Steel) a Polyurethane Tyre on a Cast Iron Centre Wheel and Ball Bearings. The Load Capacity is 300kg using manual propulsion at 4km/h (walking speed)
Key Specifications:
- Top Plate Dimensions: 105X85mm
- Bolt Hole Centres: 80x60mm
- Bolt Hole Size: 9mm (to suit M8 Fixing Bolts)
- Overall Height: 130mm
- Offset: 45mm
- Swivel Radius: 117mm
- Wheel Material: Polyurethane Tyre on a Cast Iron Centre
- Wheel Tread Width: 40mm
- Bearing Type: Ball Bearings
- Brake Style: Swivel & Wheel Brake (Also known as a Total Stop Brake – Swivel Action and Wheel are locked when the brake is applied)
Key Features:
- Heavy Gauge Steel: 5mm Top Plate / 4mm Bracket
- High Load Capacity Wheel
- Quiet Operation
- Gentle on Floors
