Description

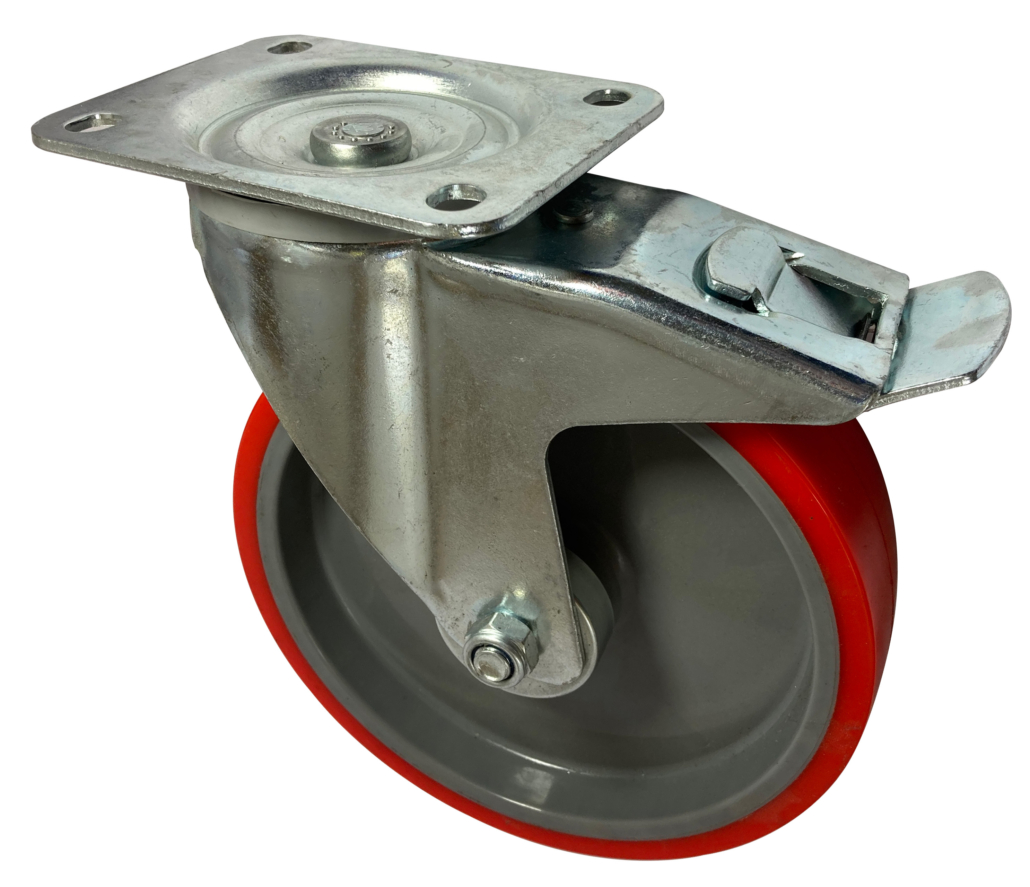

200mm Swivel Castor with Swivel & Wheel Brake (Top Plate – Pressed Steel) with a Red Polyurethane Tyre on a Nylon Centre Wheel and Roller Bearing. Load Capacity = 350kg.
Key Specifications:
- Top Plate Size: 135x110mm
- Bolt Hole Centres: 105×84/76mm
- Bolt Hole Size: 11mm (to suit 10mm fixing bolts)
- Brake Style: Swivel & Wheel Brake (also known as a Total Stop Brake because both the swivel rotation and wheel are locked when applied)
- Overall Height: 235mm
- Castor Offset: 55mm
- Wheel Material: Polyurethane Tyre on Nylon (polyamide) Centre
- Tyre Hardness: 95 Shore A
- Wheel Tread Width: 50mm
- Bearing Type: Roller Bearing
- Load Rating: 350kg (hand pushed to 4km/h)
This castor has a pressed steel housing with a double ball race in the swivel head. Together with the roller bearing this enables easy manoeuvrability. The Polyurethane tyre wheel is not affected by water, will not damage or mark most flooring and absorbs some of the rolling vibration increasing the comfort for the user and reducing the associated noise. It can be used in many applications making it a very versatile castor.
