Description

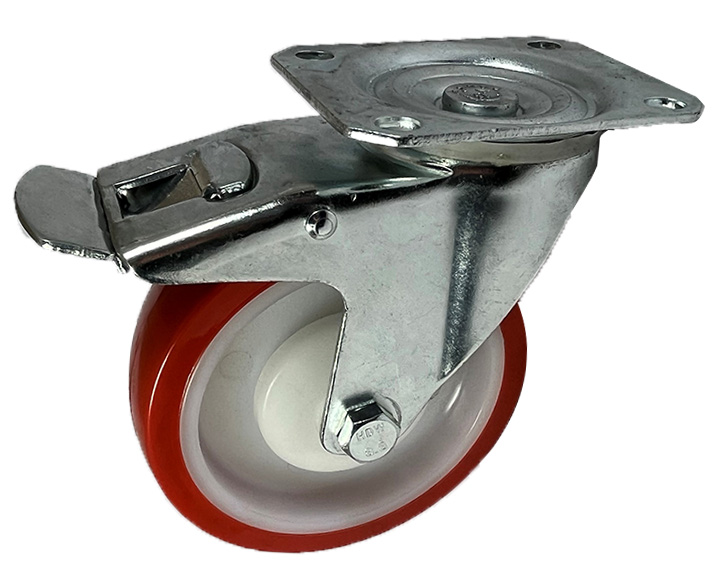

Swivel with Brake Castor (Pressed Steel) – 125mm Polyurethane Tyre with Nylon Centre Wheel (200kg Load Capacity)
Engineered for durability and smooth performance, this Swivel Castor is built with a pressed steel frame and a red polyurethane tyre bonded to a white nylon centre. Designed to deliver exceptional manoeuvrability and low rolling resistance, it’s perfect for industrial trolleys, carts, and medium-duty applications.
The swivel head features a double ball bearing race for effortless rotation and precise handling, while integral nylon thread guards protects the bearing from debris—ensuring long-lasting, reliable performance and smooth rolling.
Key Features
- Excellent Mobility: Double ball bearing race provides smooth 360° swivel action.
- Durable Construction: Pressed steel housing with high-quality polyurethane wheel.
- Low Rolling Resistance: Polyurethane-on-nylon wheel with a single ball bearing ensures quiet, efficient movement.
- Long Service Life: Thread guards prevent dirt ingress for extended bearing performance.
- High Load Capacity: Rated to support up to 200kg per castor.
Technical Specifications
- Top Plate Dimensions: 105×80mm
- Bolt Hole Centres: 80/77×60mm
- Bolt Hole Size: 9mm (fits 8mm fixing bolt)
- Overall Height: 155mm
- Castor Offset: 40mm
- Swivel Radius: 127mm
- Wheel Diameter: 125mm
- Wheel Tread Width: 35mm
- Wheel Material: Polyurethane (92 Shore A) on Nylon Centre
- Bearing Type: Single Ball Bearing
- Brake Style: Swivel & Wheel Brake (also called a Total Stop Brake because both the wheel and swivel rotation are locked when applied)
