Description

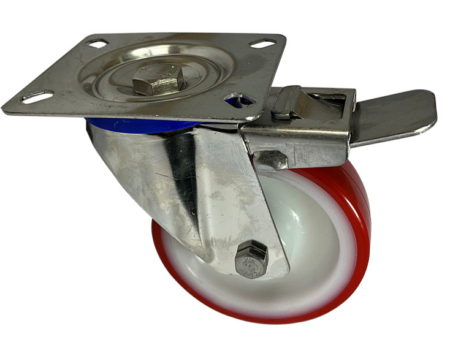

100mm Top Plate Swivel Castor with Total Stop Brake (Stainless Steel Castor) with 80x60mm Bolt Hole Centres. Polyurethane Tyre / Nylon Centre Wheel with Roller Bearing. Load Capacity = 150kg
Key Specifications:
- Bracket Material: Stainless Steel AISI 304
- Top Plate Dimensions: 100x85mm
- Bolt Hole Centre: 80x60mm
- Fixing Bolt Hole Size: 8.5x12mm (suits 8mm Fixing Bolts)
- Overall Height: 126mm
- Castor Offset: 37mm
- Brake Style: Swivel & Wheel Brake (Also known as a Total Stop brake because both the swivel rotation and the wheel are locked when applied)
- Wheel Material: Red Polyurethane on a White Nylon Centre
- Tread Width: 30mm
- Tyre Hardness: 97 Shore A
- Bearing Type: Stainless Steel Roller Bearing
- Load Rating: 150kg (Hand pushed to 4km/h)
