Description

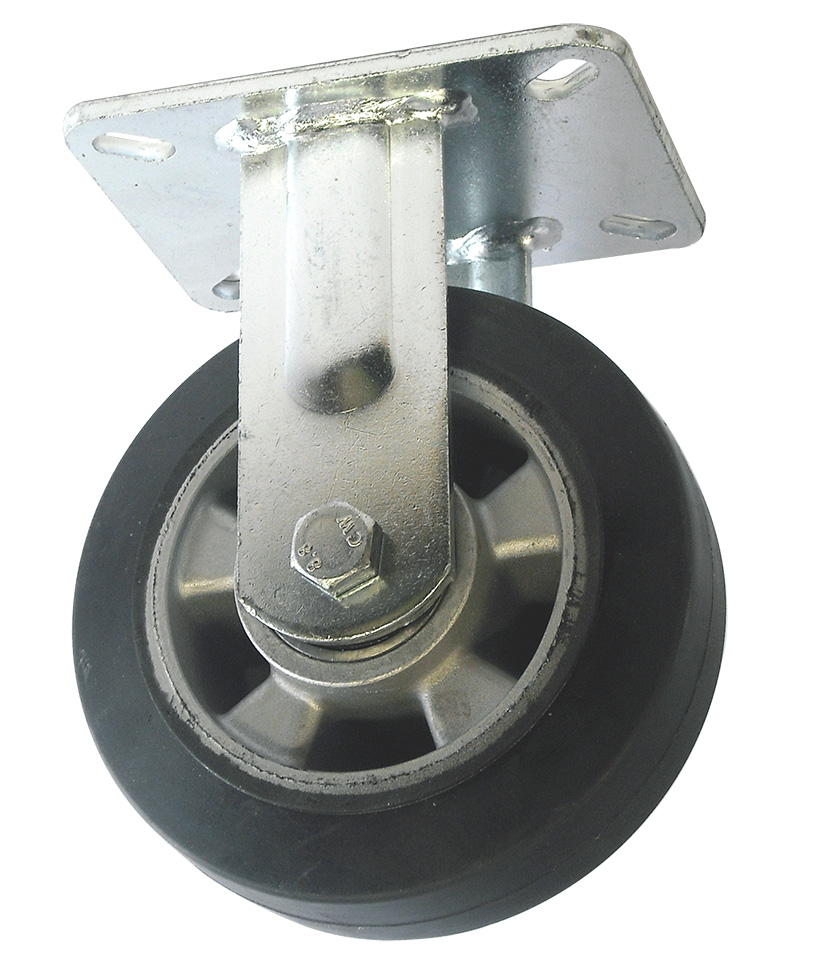

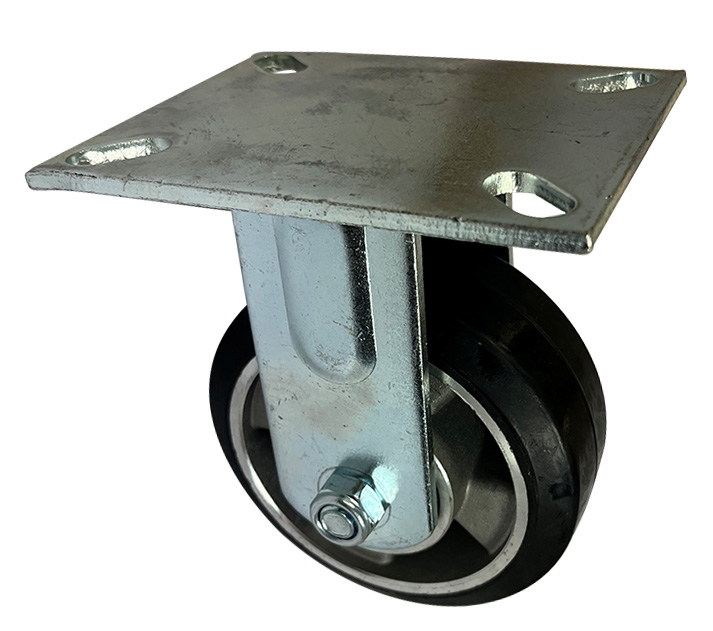

125mm Top Plate Fixed Castor (Fabricated Steel) with with 105x80mm Fixing Bolt Hole Centres. This castor is fitted with a Black Elastic Rubber Tyre on an Aluminium Centre Wheel with Ball Bearings. Load Capacity = 250kg using manual propulsion at 4km/h (walking speed).
Fixed castors are often called Rigid castors because the bracket [frame] has no moving parts
Key Specifications & Features
- Top Plate Size: 140x110mm
- Bolt Hole Centres: Slotted 114x87mm / 97.5×71.5mm
- Fixing Bolt Size: 12mm
- Overall Height: 165mm
- Bearing Type: Ball Bearing
- Load Capacity: 250kg (manual propulsion at 4km/h)
- Elastic rubber tyre castor wheels have a higher load capacity and lower rolling resistance (easier to get moving) than normal rubber tyre. They have a high resistance to wear and offer excellent running and operating comfort.
