Description

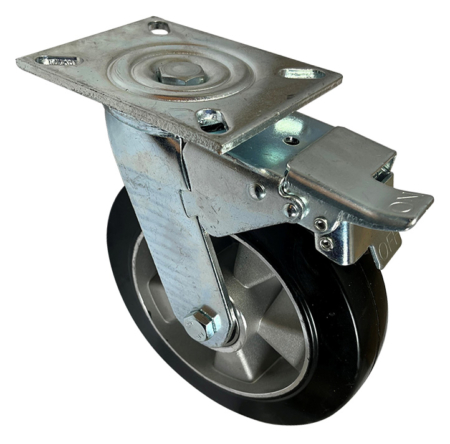

200mm Top Plate Swivel Castor with Swivel & Wheel Brake (Fabricated Steel) with with 105x80mm Fixing Bolt Hole Centres. This castor is fitted with a Black Elastic Rubber Tyre on an Aluminium Centre Wheel with Ball Bearings. Load Capacity = 400kg using manual propulsion at 4km/h (walking speed).
Key Specifications & Features
- Top Plate Size: 140x110mm
- Bolt Hole Centres: Slotted 114x87mm / 97.5×71.5mm
- Fixing Bolt Size: 12.7x25mm (Suits M12 Fixing Bolts)
- Brake Style: Swivel & Wheel Braked lock both the wheel and the swivel rotation. They are sometimes called Total Stop Brakes.
- Overall Height: 240mm
- Offset: 56mm
- Bearing Type: Ball Bearing
- Load Capacity: 400kg (manual propulsion at 4km/h)
Elastic rubber tyre castor wheels have a higher load capacity and lower rolling resistance (easier to get moving) than normal rubber tyre. They have a high resistance to wear and offer excellent running and operating comfort.
