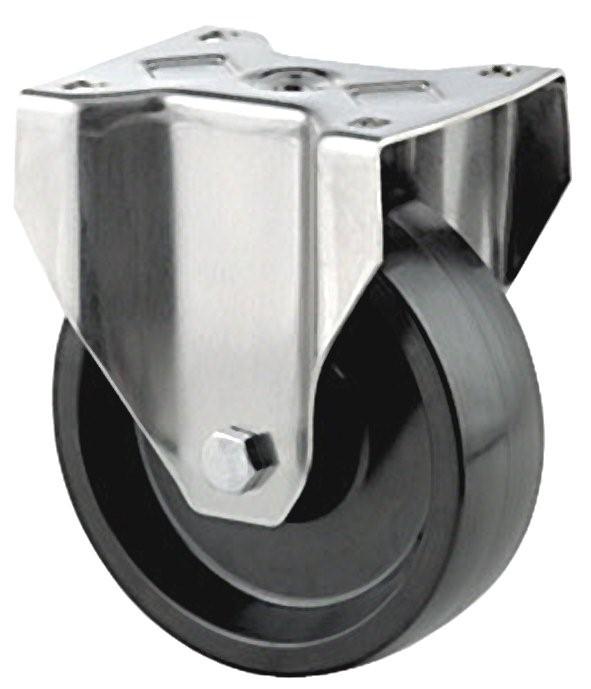

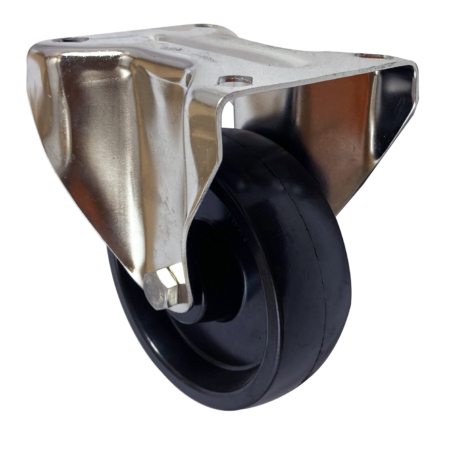

100mm High Temperature Fixed Castor, 125kg Capacity | Phenolic Resin Wheel, Plain Bore (MFX100HT)

Related products

•

  • Description
  • Specifications

  100mm High Temperature Swivel Castor, 120kg Capacity | Phenolic Resin Wheel, Plain Bore (MSX100HT)

  100mm Swivel Castor (Pressed Steel) with 80x60mm B ... Read Moreolt Hole centres and 128mm Overall Height. This castor houses a High Temperature Black Phenolic Wheel with a 35mm Tread Width and Smooth Plain Bore. It is Rated to +280 Degrees Celsius and has a Load Capacity = 120kg Key Specifications: Top Plate Dimensions: 100x85mm Bolt Hole Centres: 80/77x60mm Bolt Hole Size: 8.5x12mm (suits M8 Fixing Bolts) Overall Height: 128mm Castor Offset: 37mm Wheel Material: Black Phenolic Resin Wheel Tread width: 35mm Bore Type: Smooth Plain Bore Temperature Rating: -40 ºC to +280 ºC Load Rating: 120kg using manual propulsion at 4km/h (walking speed)

  £18.53 Compare

  In Stock

  Qty

  Add To Basket
•

  • Description
  • Specifications

  100mm High Temperature Swivel Castor With Brake, 120kg Capacity | Phenolic Resin Wheel, Plain Bore (MSX100HTBR)

  100mm Swivel Castor (Pressed Steel) with Swivel &a ... Read Moremp; Wheel Brake. It has 80x60mm Bolt Hole centres, 128mm Overall Height and houses a High Temperature Black Phenolic castor wheel with a 35mm Tread Width and Smooth Plain Bore. It is Rated to +280 Degrees Celsius and has a Load Capacity = 120kg Key Specifications: Top Plate Dimensions: 100x85mm Bolt Hole Centres: 80/77x60mm Bolt Hole Size: 8.5x12mm (suits M8 Fixing Bolts) Brake style: Swivel and wheel brake is also known as a total stop brake because both the wheel and swivel rotation are locked when applied. Overall Height: 128mm Castor Offset: 37mm Wheel Material: Black Phenolic Resin Wheel Tread width: 35mm Bore Type: Smooth Plain Bore Temperature Rating: -40 ºC to +280 ºC Load Rating: 120kg using manual propulsion at 4km/h (walking speed)

  £21.09 Compare

  In Stock

  Qty

  Add To Basket
•

  • Description
  • Specifications

  M8 x 25mm High Tensile Steel Bolt, Nut & Washer Set (BOLTSETM8X25)

  4-Pack M8 x 25mm High Tensile Steel Bolt, Nyloc Nu ... Read Moret & Washer Set – Bright Zinc Plated Secure your castors with confidence using this 4-pack of high-strength M8 x 25mm bolt sets. Each set includes a high tensile steel bolt, nyloc nut, and washer - everything you need for a reliable, vibration-resistant fit. Key Features: High Strength: M8 x 25mm threaded bolts, Grade 8.8 high tensile steel for durability and load-bearing performance. Vibration Resistant: Nyloc nuts feature a nylon insert that grips the bolt thread to prevent loosening during movement. Corrosion Protection: All components are finished in Bright Zinc Plate (BZP) for long-lasting resistance to rust and wear. Pack Contents: 4 × M8 x 25mm Hex Set Bolts (Grade 8.8, BZP finish) 4 × M8 Nyloc Nuts (9.5mm height, BZP finish) 4 × M8 Washers (16mm OD × 8.4mm ID × 1.8mm thick, BZP finish) Perfect for securely fixing castors to trolleys, carts, or other equipment.

  £1.96 Compare

  In Stock

  Qty

  Add To Basket
