Description

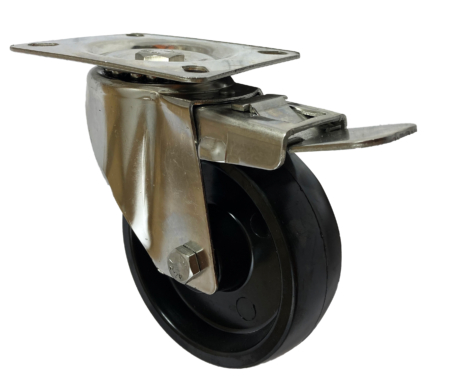

100mm Swivel Castor (Pressed Steel) with Swivel & Wheel Brake. It has 80x60mm Bolt Hole centres, 128mm Overall Height and houses a High Temperature Black Phenolic castor wheel with a 35mm Tread Width and Smooth Plain Bore. It is Rated to +280 Degrees Celsius and has a Load Capacity = 120kg
Key Specifications:
- Top Plate Dimensions: 100x85mm
- Bolt Hole Centres: 80/77x60mm
- Bolt Hole Size: 8.5x12mm (suits M8 Fixing Bolts)
- Brake style: Swivel and wheel brake is also known as a total stop brake because both the wheel and swivel rotation are locked when applied.
- Overall Height: 128mm
- Castor Offset: 37mm
- Wheel Material: Black Phenolic Resin
- Wheel Tread width: 35mm
- Bore Type: Smooth Plain Bore
- Temperature Rating: -40 ºC to +280 ºC
- Load Rating: 120kg using manual propulsion at 4km/h (walking speed)
