Description

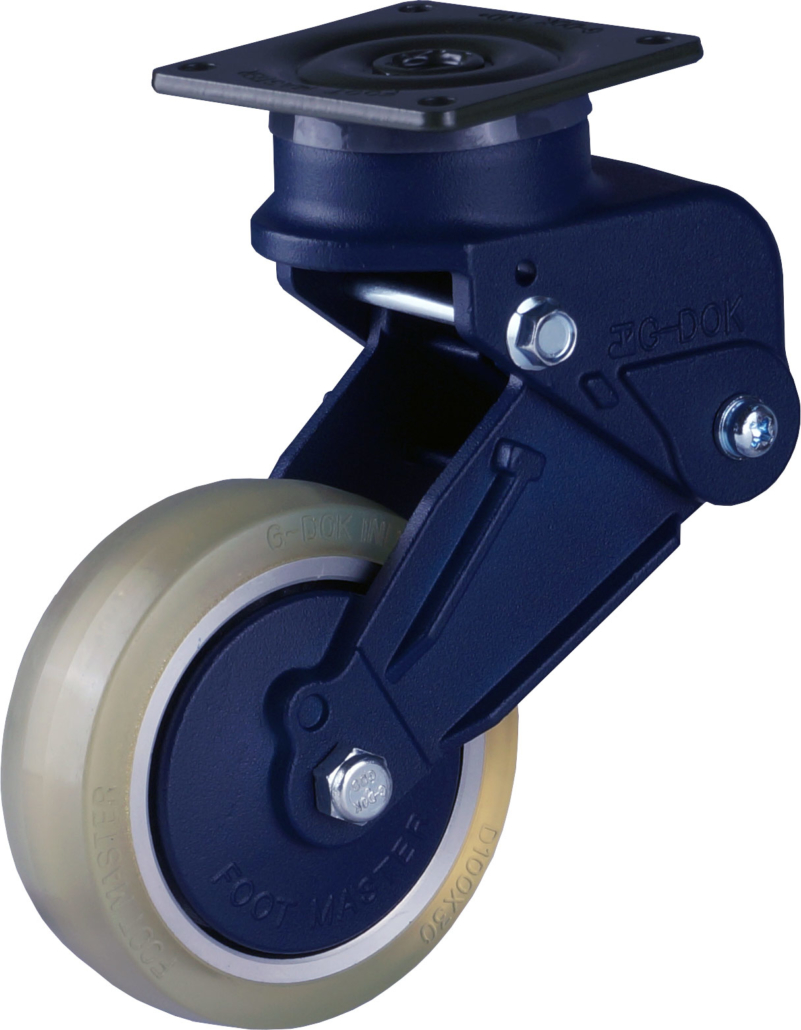

100mm Shock Absorbing Swivel Castor with a Polyurethane Tyre on an Aluminium Centre wheel complete with precision ball bearings
Key Specifications:
- Top Plate Dimensions: 105x80mm
- Bolt Hole Centres: 80/75×60/55mm
- Bolt Hole Size: 9mm (to suit 8mm Fixing Bolt)
- Overall Height: 171mm – 20mm (compression)
- Castor offset: 45 – 54mm
- Wheel material: Polyurethane Tyre on an Aluminium Centre
- Wheel Bearing Type: Ball Bearings
- Tread Hardness: 90 Shore A
- Load Rating: 100kg (using manual propulsion at 4km/h)
- Surface Finish: Powder Coated

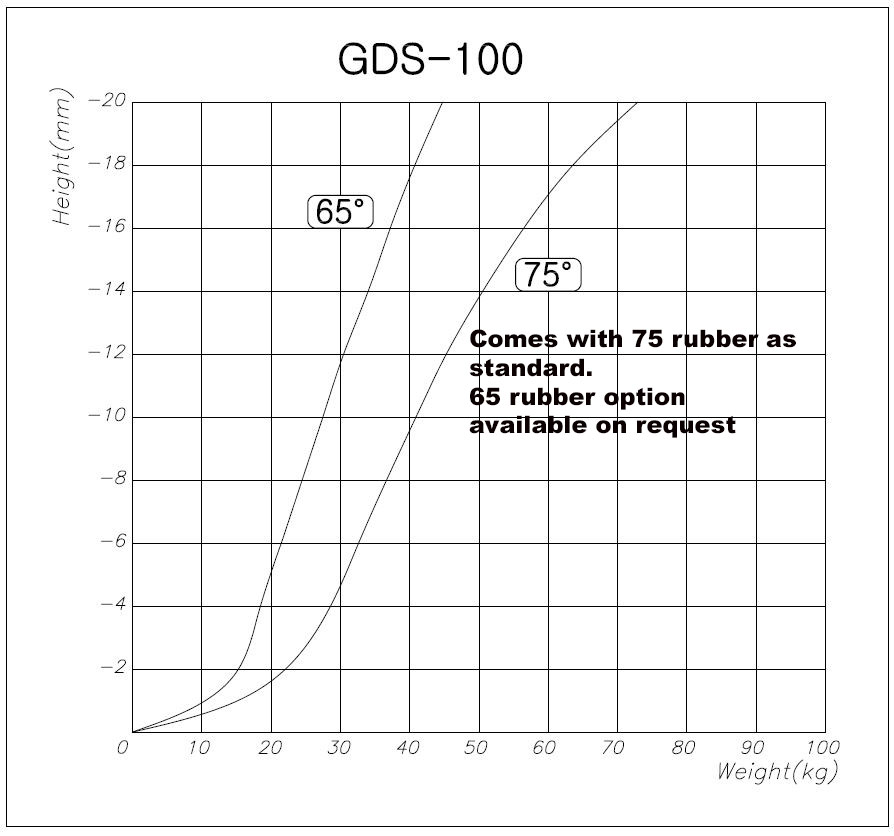

Note: Because of the spring in the rubber shock absorbing pad, the overall height unloaded is 171mm as the load increases, the compression of the rubber pad incrementally reduces the overall height by up to 20mm (see image 2 – GDS100 Curve). The castor is fully compressed at 75kg. The shock absorbing movement also means that the castors off set can range from 45mm to 54mm.
