Braked Castors
Braked castors, also known as lockable castors, are designed to provide controlled movement and secure positioning for industrial, commercial and material handling equipment.Most braked castors are swivel castors fitted with wheel brakes, directional locks or total stop braking systems for improved safety and st...ability. Braked castors can include different locking mechanisms depending on the application requirements:
- Wheel Brake – Locks the wheel to prevent rolling
- Directional Lock – Locks the swivel movement for straight-line travel
- Total Stop Brake – Locks both wheel rotation and swivel movement simultaneously
Most brake systems are fitted to swivel castors. Fixed castors with brakes are less common, although some specialist heavy-duty and shock-absorbing castors include braking systems.
Braked Castor Construction
Swivel braked castors rotate 360 degrees around a vertical swivel axis and consist of a castor wheel mounted within a swivel housing or bracket. The main components typically include:
- Top plate or bolt hole fitting
- Swivel head and ball race
- Castor bracket or yoke
- Wheel and axle assembly
- Brake mechanism
The top plate or fixing determines how the castor attaches to equipment. Common fixing methods include top plate fixings and single bolt hole fittings. Correct bolt hole centres are important when replacing existing castors.
Single & Double Ball Race Bearings
The swivel head contains ball bearings which allow the castor to rotate smoothly under load. Braked swivel castors are commonly available with:
- Single ball race bearings
- Double ball race bearings
Double ball race designs are widely used for medium-duty and heavy-duty applications because they provide improved load distribution, smoother steering and greater durability under static and dynamic loads.
What is Castor Offset?
Castor offset is the distance between the swivel axis and the centre of the wheel axle. This offset allows swivel castors to self-align and travel in the direction of movement, improving manoeuvrability and steering performance during operation. Read More
- Display 15 Products per page
-
In Stock100mm Swivel and Brake Castor, 80kg Capacity | Rubber Tyre Wheel, Plain Bore (LSV100RPBHBR)
£8.00100mm Grey Rubber Tyre wheel with a polypropylene ... Read Morecentre fitted into a 12mm Single Bolt Hole Swivel with brake Castor (Pressed Steel castor frame). This castor has a 80kg load capacity using manual propulsion at 4 km/h. This castor is fitted with a grey rubber tyre that will not mark the floor and is ideal for most general castor purposes such as trolley castors or dolly castors. Single Bolt Hole castors can have a expander tube fitting (purchased separately) attached to insert into hollow square or round tubing. See our section on Expander Tube Fittings -
In Stock100mm Braked Castor with 24mm to 27mm Round Expander Fitting, 80kg Capacity | Rubber Tyre Wheel (194555)
Original price was: £15.89.£9.54Current price is: £9.54. Sale!100mm Grey Thermoplastic Rubber Tyre Wheel on a ny ... Read Morelon centre fitted into a 10mm Single Bolt Hole Swivel Castor (Pressed Steel Frame) with Brake. This castor comes complete with a 24mm - 27mm Round Expander. The swivel head has a double ball race and the load capacity of this castor is 80kg using manual propulsion at 4km/h. The expander fitting is designed to fit into an round hollow tube with an internal diameter of 24mm to 27mm. This castor is fitted with a grey rubber tyre that will not mark or damage the floor and is ideal for most general, light duty castor purposes such as trolley castors or dolly castors. The Ball Bearing in the wheel provides excellent rolling performance. -
In Stock100mm Swivel Castor with Brake, 70kg Capacity | Grey Rubber Tyre Wheel, Roller Bearing (MBZ100RMBGREY)
£13.67100mm Grey Rubber Tyre on a Pressed Steel centre w ... Read Moreheel with a roller bearing fitted into a robust pressed steel swivel & brake castor bracket. The Wheel has a Non-Marking Grey Rubber Tyre and the Swivel Brake Bracket has a 4 hole top plate measuring 105x80mm with 80x60mm bolt hole spacing. The load capacity of this castor is 70kg using manual propulsion at 4km/h (walking speed) Key Specification: Top Plate Size: 105x80mm Bolt Hole Centres: 80/76X60mm Bolt Hole Size: 9mm (to suit M8 Fixing Bolts) Brake Style: Swivel & Wheel brake. Also know as a Total Stop Brake because it locks both the wheel and swivel rotation when applied. Overall Height: 125mm Offset: 40mm Swivel Radius: 130mm Tread width: 30mm Bearing Type: Roller Bearing Wheel Material: Grey Non-Marking Rubber / Pressed Steel Centre Tyre Hardness: Shore A 85 Key Features: High Load Capacity Low Rolling Resistance Reduce Vibration Low noise Operation -
In Stock125mm Swivel and Brake Castor, 100kg Capacity | Polypropylene Wheel, Plain Bore (LSV125PPBHBR)
£9.91125mm White Polypropylene wheel fitted in a 12mm S ... Read Moreingle Bolt Hole Swivel and Brake Castor (Pressed Steel castor frame). This castor has a 100kg load capacity using manual propulsion at 4 km/h.This castor is fitted with a White Polypropylene wheel that will not mark the floor and is ideal for most general castor purposes such as trolley castors or dolly castors. Single Bolt Hole castors can have a expander tube fitting (purchased separately) attached to insert into hollow square or round tubing. See our section on Expander Tube Fittings -
In Stock80mm Swivel Castor with Brake, 70kg Capacity | Rubber Tyre Wheel, Roller Bearing (MSV080GRP1BSWB)
£8.0280mm Grey Rubber Tyre wheel on a plastic centre wi ... Read Moreth a roller bearing fitted into a pressed steel swivel and brake castor bracket. The Swivel Brake Bracket has a 4 hole top plate with 80x60mm bolt hole spacing. The load capacity of this castor is 70kg using manual propulsion at 4km/h (walking speed) The Grey Rubber Tyre is a softer wheel compared to hard tread wheels like nylon. The rubber absorbs vibrations whilst in motion making this a low noise option and will not mark or scratch the floor. The roller bearing lowers the rolling resistance to reduce the effort required to move the castors. Together with the strong bracket that has a double ball race in the swivel head, this castors a great choice for many industrial or domestic applications. -
In Stock100mm High Temperature Stainless Steel Swivel Castor With Brake, 150kg Capacity | Phenolic Wheel, Plain Bore (MSS100HTBR)
£41.10100mm High Temperature Top Plate Swivel Castor wit ... Read Moreh Total Stop Brake (Stainless Steel Castor) with 80x60mm Bolt Hole Centres and 128mm overall height. Black Phenolic caster wheel with 35mm Tread Width and Smooth Plain Bore. Load Capacity = 150kg This castor is rated from -40 Deg. C to +280 Deg. C and is made from AISI304 Stainless Steel with a double ball race in the swivel head. -
In Stock150mm Swivel Castor with Brake, 730kg Capacity | Polyurethane Tyre Wheel, Roller Bearing (TSH150PT15F)
£149.86150mm Heavy Duty Top Plate Swivel and Brake Castor ... Read More (Fabricated Bracket) with 105mm x 80/75mm bolt hole centres and 202mm overall castor height. The wheel has a Revvothane Polyurethane Tyre on a Cast Iron Centre with Roller Bearing. Load Capacity = 730kg The Bolt Holes of the H series castor are slotted to 120x60mm and 105x80/75mm. Use 12mm diameter bolts when fitting at 120 x 60mm Use 10mm diameter bolts when fitting at 105x80/75mm Features of the H Series Castor The Genuine Revvo H Series castor is made from heavy gauge forged steel with a hardened ball race in the swivel race that serve as both thrust and radial bearings. The swivel head comes with a metal swivel seal and hydraulic grease nipple The closed base of the swivel ring prevents downward escape of lubricant The side plates are press formed to a cylindrical shape to give the best strength to weight ratio Power Towable to 6km/h. -
In Stock100mm Swivel Castor with Brake, 70kg Capacity | Black Rubber Tyre Wheel, Roller Bearing (MBZ100RMB)
£12.68100mm Black Rubber Tyre on a Pressed Steel centre ... Read Morewheel with a roller bearing fitted into a robust pressed steel swivel & brake castor bracket. The Swivel Brake Bracket has a 4 hole top plate measuring 105x80mm with 80x60mm bolt hole spacing. The load capacity of this castor is 70kg using manual propulsion at 4km/h (walking speed) Key Specification: Top Plate Size: 105x80mm Bolt Hole Centres: 80/76X60mm Bolt Hole Size: 9mm (to suit M8 Fixing Bolts) Brake Style: Swivel & Wheel brake. Also know as a Total Stop Brake because it locks both the wheel and swivel rotation when applied. Overall Height: 125mm Offset: 40mm Swivel Radius: 130mm Tread width: 30mm Bearing Type: Roller Bearing Tyre Hardness: Shore A 85 Key Features: High Load Capacity Low Rolling Resistance Reduce Vibration Low noise Operation -

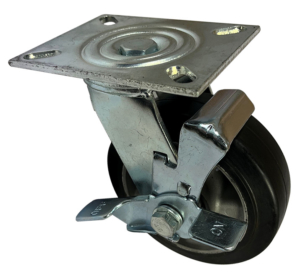

In Stock150mm Swivel Castor with Side Brake, 300kg Capacity | Rubber Tyre Wheel, Ball Bearing, (KSMG150EABBK)
£46.35150mm Top Plate Swivel Castor with Side Mounted Wh ... Read Moreeel Brake (Fabricated Steel) with with 105x80mm Fixing Bolt Hole Centres. This castor is fitted with a Black Elastic Rubber Tyre on an Aluminium Centre Wheel with Ball Bearings. Load Capacity = 300kg using manual propulsion at 4km/h (walking speed). Key Specifications & Features Top Plate Size: 140x110mm Bolt Hole Centres: Slotted 114x87mm / 97.5x71.5mm Fixing Bolt Size: 12.7x25mm (Suits M12 Fixing Bolts) Brake Style: Side mounted wheel brake allows the swivel head to rotate freely while locking the wheel. Overall Height: 190mm Offset: 40mm Bearing Type: Ball Bearing Load Capacity: 300kg (manual propulsion at 4km/h) Elastic rubber tyre castor wheels have a higher load capacity and lower rolling resistance (easier to get moving) than normal rubber tyre. They have a high resistance to wear and offer excellent running and operating comfort. -
In Stock75mm Swivel Castor with Brake, 90kg Capacity | Rubber Tyre Wheel, Plain Bore (361RNBR)
£13.2975mm Top Plate Swivel Castor with Footbrake (Flexe ... Read Morello 61 Series) with 80x60mm Bolt Hole Centres. This castor is fitted with a Non-Marking Blue Elastic Rubber Tyre wheel on a Nylon Centre Wheel with a Plain Bore. Load Capacity = 90kg The Flexello 61 Series is an established industry standard range of Pressed Steel Castors that is suitable for most industrial or domestic applications. This range has a single ball bearing swivel head and finished with a bright zinc plating. -
In Stock125mm Swivel Castor with Side Brake, 225kg Capacity | Rubber Tyre Wheel, Ball Bearing, (KSMG125EABBK)
£44.51125mm Top Plate Swivel Castor with Side Mounted Wh ... Read Moreeel Brake (Fabricated Steel) with with 105x80mm Fixing Bolt Hole Centres. This castor is fitted with a Black Elastic Rubber Tyre on an Aluminium Centre Wheel with Ball Bearings. Load Capacity = 225kg using manual propulsion at 4km/h (walking speed). Key Specifications & Features Top Plate Size: 140x110mm Bolt Hole Centres: Slotted 114x87mm / 97.5x71.5mm Fixing Bolt Size: 12.7x25mm (Suits M12 Fixing Bolts) Brake Style: Side mounted wheel brake allows the swivel head to rotate freely while locking the wheel. Overall Height: 165mm Offset: 39mm Bearing Type: Ball Bearing Load Capacity: 225kg (manual propulsion at 4km/h) Elastic rubber tyre castor wheels have a higher load capacity and lower rolling resistance (easier to get moving) than normal rubber tyre. They have a high resistance to wear and offer excellent running and operating comfort. -
In Stock150mm Swivel Castor with Brake, 730kg Capacity | Polyurethane Tyre Wheel, Ball Bearing (TSH150PT2HF)
£176.95150mm Heavy Duty Top Plate Swivel Castor With Swiv ... Read Moreel & Wheel Brake (Fabricated Castor) with 105x80 Hole Centres. Polyurethane Tyre / Cast Iron Centre Wheel with Ball Bearing. Load Capacity = 730kg The Bolt Holes of the H series castor are slotted to 120x60mm and 105x80/75mm. Use 12mm diameter bolts when fitting at 120 x 60mm Use 10mm diameter bolts when fitting at 105x80/75mm Features of the H Series Castor The Genuine Revvo H Series castor is made from heavy gauge forged steel with a hardened ball race in the swivel race that serve as both thrust and radial bearings. The swivel head comes with a metal swivel seal and hydraulic grease nipple The closed base of the swivel ring prevents downward escape of lubricant The side plates are press formed to a cylindrical shape to give the best strength to weight ratio Power Towable to 6km/h. -
In Stock75mm Heavy Duty Swivel Brake Castor, 300kg Capacity | White Nylon Wheel, Ball Bearing (HSV075NY2BBR)
£29.1175mm Heavy Duty Top Plate Swivel and Brake Castor ... Read Morewith Heavy Gauge Pressed Steel and a load capacity of 300kg. The swivel head has a double ball race with hardened ball race track. The Brake is a Total Stop Brake which is also known as a Swivel and Wheel Brake. This means that when the brake is applied, the brake locks both the wheel and the swivel head. The Top Plate measure 105x80mm with 80x60mm Fixing Bolt Hole Centres. The bolt holes are slotted to 80/75x60/55mm and suits 8mm Bolts. The castor wheel is a white nylon wheel (polyamide) with a 32mm tread width and fitted with two precision ball bearings. The hard wheel is non-marking and has the lowest rolling and swivel resistance. This castor is an excellent all purpose heavy duty castor. It is often used with high load mobile storage and transportation equipment in domestic, mechanical and industrial applications. Download HDV Series Datasheet Here -
In Stock125mm Swivel Castor with Brake, 200kg Capacity | Nylon Wheel, Ball Bearing (MSV125NY2BSWB)
£17.02125mm White Nylon Wheel with a ball bearing fitted ... Read More into a pressed steel swivel and brake castor bracket. The Swivel Brake Bracket has a 4 hole top plate with 80x60mm bolt hole spacing. The load capacity of this castor is 200kg using manual propulsion at 4km/h (walking speed) The Nylon Wheel has a low tractive resistance making it easier to get moving compared with softer rubber tread wheels. Together with the strength of nylon and because it wont damage concrete floors, makes nylon wheel castors probably the most popular choice. The ball bearing lowers the rolling resistance to reduce the effort required to move the castors. Put this wheel into a strong bracket that has a double ball race in the swivel head makes this castor a great choice for the widest range of industrial and domestic applications. -
In Stock
100mm Braked Castor with 27mm to 30mm Round Expander Fitting, 80kg Capacity | Rubber Tyre Wheel (194600)
Original price was: £15.89.£9.54Current price is: £9.54. Sale!100mm Grey Thermoplastic Rubber Tyre Wheel on a ny ... Read Morelon centre fitted into a 10mm Single Bolt Hole Swivel with Brake Castor (Pressed Steel Frame). This castor comes complete with a 27mm - 30mm Round Expander. The swivel head has a double ball race and the load capacity of this castor is 80kg using manual propulsion at 4km/h. The expander fitting is designed to fit into an round hollow tube with an internal diameter of 27mm to 30mm. This castor is fitted with a grey rubber tyre that will not mark or damage the floor and is ideal for most general, light duty castor purposes such as trolley castors or dolly castors. The Ball Bearing in the wheel provides excellent rolling performance.
