Fixed Castors
Fixed Castors are sometimes referred to as rigid castors. This is because Fixed castors are indeed Rigid and can only perform straight line movements. The bracket is formed from a single sheet of steel or stainless steel pressed into the desired shape. Alternatively, fabricated castors are made from forged steel, the yokes (or side plates...) are welded to the top plate.In both cases, fixed castors do not have any moving parts. The wheel sits directly under the top plate so that the castor offset is zero. Conversely, swivel castors have the centre of the wheel offset from the centre of the top plate (where the swivel axis is). The longer the offset the more easily the castor can self-align to the direction of force. That is, direction you want to castor to go. See here for swivel castors.
Fixed castors are generally used either in perfectly straight aisles where you want your trolley to only move forwards and backwards. It is more common that Rigid Castors are used in in conjunction with swivel or lockable swivel castors. They provide stability to your trolleys movement when travelling in a straight line and steering when rounding curves or corners.
Using Fixed Castors
A combination of Fixed and Swivelling castors is the most common configuration (two fixed and two swivel). With this configuration turning on the spot is quite hard. If you need to do this maybe all swivel castors is what you need. The addition of a directional locks can turn some castors into fixed castors and back again. Call us on 0121 772 1010 to learn more.
A word of caution. If you are using a six castor configuration, the two central castors should be Rigid Castors and at least one size bigger than those at the front and at the back. Furthermore, the two central castors must be able to hold at least half the total weight so they are strong enough to enable the platform to pivot on them. For more information about recommended load capacities, please click here. Read More
- Display 15 Products per page
-
In Stock100mm Fixed Castor, 300kg Capacity | Polyurethane Tyre Wheel, Ball Bearing (488PAB)
£25.67100mm Top Plate Fixed Castor with 100x48mm Bolt Ho ... Read Morele Centres. The Wheel has a Polyurethane Tyre on an Aluminium Centre Wheel with Ball Bearings. The Load Capacity is 300kg using manual propulsion at 4km/h. Key Specifications: Top Plate Size: 121x80mm Bolt Hole Centres: 100x48mm Overall Height: 125mm Wheel Material: Polyurethane Tyre (94 Shore A) / Aluminium Centre Bearing Type: Ball Bearings -
In Stock100mm Fixed Castor, 300kg Capacity | Polyurethane Tyre Wheel, Ball bearing (KFMG100CRPCB)
£42.72100mm Fixed Castor (Fabricated Steel) and Crown Tr ... Read Moreead Polyurethane Tyred / Cast Iron Centre Wheel with Ball Bearing. Load Capacity = 300kg using manual propulsion at 4km/h (walking speed). Key Specifications and Features: Top Plate Size: 140x110mm Bolt Hole Centres: Slotted 114x87mm / 97.5x71.5mm Fixing Bolt Size: 12mm Overall Height: 143mm Tread Hardness: 92 +/-3 Shore A Bearing Type: Ball Bearing Load Capacity: 300kg (manual propulsion at 4km/h) Crowned Tread for easy manoeuvrability -
In Stock100mm Fixed Castor, 300kg Capacity | Polyurethane Tyre Wheel, Ball Bearing (MFK100APC2B)
£25.83100mm Fixed [Rigid] Castor (Heavy Gauge Pressed St ... Read Moreeel) with a beige Polyurethane Tyre on a Cast Iron Centre Wheel with Dual Ball Bearings. The Load Capacity is 300kg using manual propulsion at 4km/h (walking speed) Key Specifications: Top Plate Dimensions: 105x85mm Bolt Hole Centres: 80x60mm Bolt Hole Size: 9mm (to suit M8 Fixing Bolts) Overall Height: 130mm Wheel Material: Beige Polyurethane Tyre on a Cast Iron Centre Tyre Hardness: 94 Shore A Wheel Tread Width: 32mm Bearing Type: Ball Bearings Key Features: Heavy Gauge Steel: 5mm Top Plate / 4mm Bracket High Load Capacity Wheel Quiet Operation Non-Marking & Gentle on Floors -
In Stock100mm Fixed Castor, 300kg Capacity | Polyurethane Tyre Wheel, Ball Bearing (MFK100PC2B)
£53.23100mm Top Plate Fixed Castor (Pressed Steel) with ... Read Morean Orange Polyurethane Tyre on a Cast Iron Centre Wheel with Dual Ball Bearings. The Load Capacity is 300kg using manual propulsion at 4km/h (walking speed) Key Specifications: Top Plate Dimensions: 105x85mm Bolt Hole Centres: 80x60mm Bolt Hole Size: 9mm (to suit M8 Fixing Bolts) Overall Height: 130mm Wheel Material: Orange Polyurethane Tyre on a Cast Iron Centre Tyre Hardness: 95 Shore A Wheel Tread Width: 40mm Bearing Type: Ball Bearings Key Features: Heavy Gauge Steel: 5mm Top Plate / 4mm Bracket High Load Capacity Wheel Quiet Operation Non-Marking & Gentle on Floors -
In Stock100mm Fixed Castor, 300kg Capacity | Polyurethane Tyre Wheel, Ball bearing (MFW100APCB)
Original price was: £33.83.£18.61Current price is: £18.61. Sale!100mm Fixed Castor with an extra strong fabricated ... Read More (welded) steel bracket. Fixed castors are sometimes referred to as rigid castors. This castor has a top plate measuring 135mm x 110mm and 4 fixing bolt holes with 105x80mm. The Load Capacity is 300kg using manual propulsion at 4 km/h. The wheel has a Polyurethane Tyre bonded onto a Cast Iron Centre with two Ball Bearing for exceptional rolling performance. Key Specifications Top Plate Dimensions: 135x110mm Bolt Hole Centres: 105x80/75mm Bolt Hole Size: 11mm (suits 10mm Fixing Bolts) Overall Height: 146mm Wheel Material: Polyurethane Tyre on a Cast Iron Centre Tread Width: 40mm Bearing Type: Ball Bearings -
In Stock100mm Fixed Castor, 300kg Capacity | Polyurethane Tyre Wheel, Ball bearing, (KF100NPSBJ300)
Original price was: £25.31.£11.04Current price is: £11.04. Sale!Fixed Castor with 4-hole Top Plate (Heavy Gauge Pr ... Read Moreessed Steel) with a Soft Blue Polyurethane Tyre (80 Shore A) on a Black Fluted Nylon Centre Wheel with Ball Bearings. The Load Capacity is 300kg using manual propulsion at 4km/h. Fixed castors are also known as Rigid Castors Key Specifications: Top Plate Dimensions: 100x85mm Bolt Hole Centres: 80x60mm Bolt Hole Size: 9x12mm (to suit M8 Fixing Bolts) Overall Height: 135mm Wheel Material: Blue Polyurethane Tyre on a Black Nylon Centre Wheel Tread Width: 40mm Bearing Type: Shielded Ball Bearings Key Features: Heavy Gauge Steel High Load Capacity Wheel Quiet Operation Non-Marking & Gentle on Floors -
Out of Stock - On the Way100mm Fixed Castor, 320kg Capacity | Cast Iron Wheel, Roller Bearing (TFH100CI1H)
£45.45100mm Heavy Duty Top Plate Fixed Castor (Fabricate ... Read Mored Castor) with 105x80mm Fixing Bolt Hole Centres. Cast Iron Wheel with 45mm Tread with and a Roller Bearing. Load Capacity = 320kg Features of the H Series Castor The Genuine Revvo H Series castor is made from heavy gauge forged steel The side plates are press formed to a cylindrical shape to give the best strength to weight ratio -
In Stock100mm Fixed Castor, 340kg Capacity | Cast Iron Wheel, Plain Bore (488CI)
£21.65100mm Top Plate Fixed Castor (Pressed Steel) with ... Read More100x48mm Fixing Hole Centres. Cast Iron Wheel with a Smooth Plain Bore. Load Capacity = 340kg Key Specifications: Top Plate Dimensions: 121x80mm Bolt Hole Centres: 100x48mm Overall Height: 125mm Wheel Tread Width: 38mm -
In Stock
100mm Fixed Castor, 340kg Capacity | Cast Iron Wheel, Roller Bearing (488CIB)
£23.91100mm Top Plate Fixed Castor (Pressed Steel) with ... Read More100x48mm Fixing Hole Centres and a Cast Iron Wheel with Roller Bearing. The Load Capacity is 340kg at km/h using manual propulsion: Key Specifications: Wheel Material: Solid Cast Iron Tread Width: 38mm Bearing Type: Roller Bearing Top Plate Dimensions: 121x80mm Bolt Hole Centres: 100x48mm Overall Height: 125mm -
Out of Stock - On the Way100mm Fixed Castor, 340kg Capacity | Polyurethane Tyre Wheel, Ball Bearing (TFH100PT2H)
£77.70100mm Heavy Duty Top Plate Fixed Castor (Fabricate ... Read Mored Castor) with 105x80 Hole Centres. Polyurethane Tyre / Cast Iron Centre Wheel with Ball Bearing. Load Capacity = 340kg Features of the H Series Castor The Genuine Revvo H Series castor is made from heavy gauge forged steel The side plates are press formed to a cylindrical shape to give the best strength to weight ratio Power Towable to 6km/h. -
Out of Stock - On the Way
100mm Fixed Castor, 340kg Capacity | Polyurethane Tyre Wheel, Roller Bearing (TFH100PT1H)
£71.57100mm Heavy Duty Top Plate Fixed Castor (Fabricate ... Read Mored Castor) with 105x80mm Hole Centres. Polyurethane Tyre / Cast Iron Centre Wheel with Roller Bearing. Load Capacity = 340kg Features of the H Series Castor The Genuine Revvo H Series castor is made from heavy gauge forged steel The side plates are press formed to a cylindrical shape to give the best strength to weight ratio Power Towable to 6km/h. -

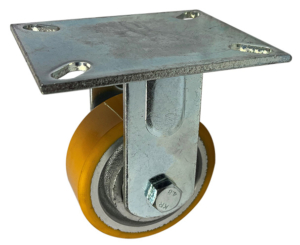

In Stock100mm Fixed Castor, 350kg Capacity | Polyurethane Tyre Wheel, Ball Bearing (KFMG100PCB)
£39.64100mm Top Plate Fixed Castor (Fabricated Steel) wi ... Read Moreth 105x80mm Bolt Hole Centres. Polyurethane Tyre / Cast Iron Centre Wheel with Ball Bearing. Load Capacity = 350kg using manual propulsion at 4km/h (walking speed). Fixed castors are often called Rigid castors because there are no moving parts in the castor's bracket or frame. Key Specifications and Features: Top Plate Size: 140x110mm Bolt Hole Centres: Slotted 114x87mm / 97.5x71.5mm Fixing Bolt Size: 12mm Overall Height: 143mm Tread Hardness: 92 +/-3 Shore A Bearing Type: Ball Bearing Load Capacity: 300kg (manual propulsion at 4km/h) Polyurethane tyre castor wheels offer high load capacity and exceptional wear resistance—lasting up to 10 times longer than rubber wheels under similar conditions. With a soft tread that’s softer than concrete, they won’t damage floors and operate with minimal noise. Resistant to oils, greases, petrol, and a wide range of chemicals, they’re ideal for demanding environments. -
In Stock100mm Fixed Castor, 600kg Capacity | Polyurethane Tyre Wheel, Ball bearing (GXT100ARFHUD)
Original price was: £227.45.£143.55Current price is: £143.55. Sale!Fixed [Rigid] Castor - 100mm Polyurethane Tyre, Al ... Read Moreuminium Centre Wheel - Load Capacity: 600kg and Power Towable to 4km/h. Engineered for extreme durability and precision performance, the GXT-100-ARF-HUD Fixed castor features a high-grade 100mm Polyurethane Tyre on an Aluminium Centre (70 Shore D). The wheel is housed within an extra-strong, fabricated top plate frame designed to withstand demanding industrial conditions. The top plate includes European and UK standard 80x60mm bolt hole centres, ensuring versatile installation across a wide range of equipment. Key features: Exceptional Load Capacity: Handles up to 600kg at 4km/h for reliable heavy-duty performance. Durable Construction: Welded steel frame with a tough powder-coated finish resists corrosion and impact. Smooth, Floor-Safe Mobility: Extra-Strong Non-marking Polyurethane Tyre. Precision Movement: Twin sealed ball bearings and an integrated axle shaft ensure effortless rolling and long service life. Ideal for applications requiring maximum strength, durability, and floor protection, this castor is built for heavy industrial use - where performance can’t be compromised. Want to see more options? Check out our full GXT range in the catalogue. -
In Stock100mm Fixed Castor, 70kg Capacity | Black Rubber Tyre Wheel, Roller Bearing (MFZ100RMB)
£7.75100mm Black Rubber Tyre on a Pressed Steel Centre ... Read Morewith a roller bearing fitted into a robust pressed steel Fixed castor bracket. The Fixed Bracket has a 4 hole top plate measuring 105x80mm with 80x60mm bolt hole spacing. The load capacity of this castor is 70kg using manual propulsion at 4km/h (walking speed) Key Specification: Top Plate Size: 105x80mm Bolt Hole Centres: 80/76X60mm Bolt Hole Size: 9mm (to suit M8 Fixing Bolts) Overall Height: 125mm Tread width: 30mm Bearing Type: Roller Bearing Tyre Hardness: Shore A 85 Key Features: High Load Capacity Low Rolling Resistance Reduce Vibration Low noise Operation -
In Stock100mm Fixed Castor, 70kg Capacity | Grey Rubber Tyre Wheel, Roller Bearing (MFZ100RMBGREY)
£8.74100mm Grey Rubber Tyre on a Pressed Steel Centre w ... Read Moreith a roller bearing fitted into a robust pressed steel Fixed castor bracket. The wheel has a grey Non-Marking Tyre and the Fixed Bracket has a 4 hole top plate measuring 105x80mm with 80x60mm bolt hole spacing. The load capacity of this castor is 70kg using manual propulsion at 4km/h (walking speed) Key Specification: Top Plate Size: 105x80mm Bolt Hole Centres: 80/76X60mm Bolt Hole Size: 9mm (to suit M8 Fixing Bolts) Overall Height: 125mm Tread width: 30mm Bearing Type: Roller Bearing Wheel Material: Grey Non-Marking Rubber / Pressed Steel Centre Tyre Hardness: Shore A 85 Key Features: High Load Capacity Low Rolling Resistance Reduce Vibration Low noise Operation
