Swivel Castors
Swivel castors provide 360-degree movement for trolleys, workbenches, transport platforms, machinery and material handling equipment. Keystone supplies a wide range of options, including top plate and bolt-hole fixings, bra...ked models, stainless steel designs and heavy-duty wheels for industrial, commercial and specialist applications.How Swivel Castors Work
The swivel head contains ball bearings that allow the castor to rotate smoothly. Swivel castors may use either a single ball race or a double ball race. Double ball race swivel castors are often used for medium duty and heavy duty applications because they provide good steerability, compact construction and reliable performance under static and moving loads.
Swivel Castor Fixing Types
The fixing determines how the castor attaches to your equipment. Common swivel castor fixing types include: Top plate fixing – usually square, rectangular or triangular and bolted directly to the equipment. Single bolt-hole fixing – fitted using a central bolt or stem connection. When choosing a plate-fixing swivel castor, check the plate size, bolt-hole diameter and fixing centres to make sure it matches your equipment.
Braked Swivel Castors
Swivel castors can be supplied with brake options to improve safety and control. Depending on the castor, the brake may lock the wheel, the swivel head or both. For options with integrated brakes, view our braked castors.
Swivel Castor Components
The diagram below shows the main parts of a swivel castor, including the fixing, swivel head, yoke and wheel. Swivel castor components diagram showing fixing, swivel head, yoke and wheel
Swivel Castor Offset
The swivel castor offset is the distance between the swivel axis and the centre of the wheel. This offset allows the castor to trail behind the swivel point and turn in the direction of movement. The offset and wheel diameter determine the swivel radius: Swivel radius = offset + wheel diameter ÷ 2 This measurement shows how much space the castor needs to rotate fully around the vertical axis. In general, a larger offset improves running performance and steering, but may reduce the castor’s load capacity.
Choosing the Right Swivel Castor
Use the filters on this page to compare swivel castors by wheel diameter, load capacity, fixing type, brake option, wheel material and bearing type. If you are unsure which castor is suitable for your application, contact Keystone for technical advice. Read More
- Display 15 Products per page
-
In Stock100mm Swivel Castor, 250kg Capacity | Polyurethane Tyre Wheel, Ball Bearing (HSPC10022122)
Original price was: £23.05.£11.19Current price is: £11.19. Sale!100mm Single Bolt Hole (12mm) Pressed Steel Swivel ... Read More Castor (Flexello Brand). This Wheel has an Polyurethane Tyre on a Cast Iron Centre Wheel with Ball Bearings. The Load Capacity is 250kg using manual propulsion at 4km/h. Key Specification: Bolt Hole Size: 13mm (to suit 12mm Fixing Bolt) Overall Height: 125mm Offset: 40mm Tread width: 32mm Wheel Material: Polyurethane Tyre on a Cast Iron Centre Tyre Hardness: 94 Shore A Bearing Type: Ball Bearings -
In Stock100mm Swivel Castor, 250kg Capacity | Nylon Wheel, Ball Bearing (HSNY10022122)
Original price was: £20.49.£9.45Current price is: £9.45. Sale!100mm Single Bolt Hole (12mm) Pressed Steel Swivel ... Read More Castor (Flexello Brand). This Wheel has an White Nylon Wheel with Ball Bearings. The Load Capacity is 250kg using manual propulsion at 4km/h. Key Specification: Bolt Hole Size: 13mm (to suit 12mm Fixing Bolt) Overall Height: 125mm Offset: 40mm Tread width: 40mm Bearing Type: Ball Bearings Key Features: High Load Capacity Low Rolling Resistance -
Out of Stock - On the Way100mm Swivel Castor, 250kg Capacity | Nylon Wheel, Plain Bore (422NY)
Original price was: £16.38.£13.16Current price is: £13.16. Sale!100mm Top Plate Swivel Castor (Pressed Steel) with ... Read More 80x60mm Bolt Hole Centres and 128mm Overall Height. The Nylon Wheel has a Plain Bore and 32mm Tread Width. Load Capacity = 250kg Nylon is a high quality, low maintenance, impact resistant wheel that has a high load capacity. The nylon material is extremely resistant to salts, greases, acids and alkalis and will not mark or damage concrete floors. This makes Nylon probably the most castor wheel material. -
In Stock100mm Swivel Castor, 250kg Capacity | Nylon Wheel, Plain Bore (LSV100NY250)
Original price was: £12.63.£7.35Current price is: £7.35. Sale!100mm Top Plate Swivel Castor with a White Nylon W ... Read Moreheel. The Castors Top Plate measures 105mm x 80mm and is drilled with 80x60mm fixing bolt hole centres. The overall height is128mm. The castor wheel has a tread width of 35mm, a smooth plain bore. The load capacity of this castor is 250kg using manual propulsion at 4km/h The White Nylon wheel is non-marking and won't damage concrete floors making it and ideal castor for most general purpose domestic or industrial castor applications. -
In Stock100mm Swivel Castor, 250kg Capacity | Nylon Wheel, Plain Bore (MSK100NY)
£10.86100mm Top Plate Swivel Castor (Pressed Steel) with ... Read More 80x60 Hole Centres. Nylon Wheel with Plain Bore. Load Capacity = 250kg -
Out of Stock - On the Way
100mm Swivel Castor, 250kg Capacity | Nylon Wheel, Roller Bearing (422NYB)
£21.50This heavy-duty 100mm Flexello swivel castor is de ... Read Moresigned for smooth, reliable movement under demanding conditions. With a strong pressed-steel frame and a high-load nylon wheel, it offers excellent durability for industrial and commercial use. Key Specifications: Load Capacity: 250kg (manual propulsion up to 4km/h) Top Plate Size: 100mm Bolt Hole Centres: 80 × 60mm Overall Height: 128mm Wheel Material: White nylon – impact-resistant and low-maintenance Bearing Type: Roller bearing for smooth, effortless rolling Why Choose Nylon? Nylon wheels are known for their strength and resistance to salts, greases, acids, and alkalis. They won't mark or damage concrete floors and offer a high load capacity — making nylon one of the most popular wheel materials in industrial environments. About Roller Bearings The roller bearing system reduces rolling resistance, making manoeuvring easier even with heavy loads. Tough, maintenance-free, and built for long life. Ideal for trolleys, warehouse equipment, manufacturing applications, and more -
In Stock
100mm Swivel Castor, 250kg Capacity | Nylon Wheel, Roller Bearing (MSK100NY1B)
£14.00100mm Swivel Castor (Heavy-Gauge Steel) - White Ny ... Read Morelon wheel - 250kg Load Rating A durable and versatile castor designed for demanding industrial and commercial environments. Its heavy-gauge [4mm thick Frame] steel bracket provides exceptional strength and stability, while the high-impact nylon wheel delivers smooth rolling performance with minimal maintenance. The non-marking wheel protects concrete and other hard flooring surfaces, and the roller bearing enhances manoeuvrability under load. Key Specifications: Top Plate Dimensions: 105x85mm Bolt Hole Centres: 80x60mm Bolt Hole Size: 9mm (to suit an 8mm fixing bolt) Overall Height: 130mm Offset: 45mm Bearing Type: Needle Roller Bearing Load Capacity: 250kg -
Out of Stock - On the Way100mm Swivel Castor, 250kg Capacity | Polyurethane Tyre Wheel, Plain Bore (422PN)
£25.71100mm Top Plate Swivel Castor (Pressed Steel) with ... Read More 80x60mm Fixing Hole Centres. Polyurethane Tyre on a Nylon Centre Wheel with a Smooth Plain Bore. Load Capacity = 250kg. -
Out of Stock - On the Way
100mm Swivel Castor, 250kg Capacity | Polyurethane Tyre Wheel, Roller Bearing (422PNB)
£22.22100mm Top Plate Swivel Castor (Flexello) with 80x6 ... Read More0mm Fixing Hole Centres. Polyurethane Tyre on a Nylon Centre Wheel with a Needle Roller Bearing. Load Capacity = 250kg -
Out of Stock - On the Way100mm Swivel Castor, 250kg Capacity | Polyurethane Tyre Wheel, Roller Bearing (422SUB)
£44.91100mm Top Plate Swivel Castor (Flexello - Pressed ... Read MoreSteel) with 80x60mm Fixing Bolt Hole Centres. Red Polyurethane Tyre on a Red Painted Cast Iron Centre Wheel with Roller Bearing. Load Capacity = 250kg. -
In Stock100mm Swivel Castor, 250kg Capacity | Polyurethane Tyre Wheel, Roller Bearing (461PNB)
£24.53100mm Top Plate Swivel Castor (Flexello 61 Series) ... Read More with 105x80 Hole Centres. Polyurethane Tyre / Nylon Centre Wheel with Roller Bearing. Load Capacity = 250kgThe Flexello 61 Series is an established industry standard range of Pressed Steel Castors that is suitable for most industrial castor uses. This range has a ball bearing swivel head and finished with a bright zinc plating. This range has a larger top plate than most 100mm castors with the castor's top plate measuring 128x102mm. -
In Stock100mm Swivel Castor, 250kg Capacity | Rubber Tyre Wheel, Ball Bearing (HSRN10022122)
Original price was: £17.80.£12.10Current price is: £12.10. Sale!100mm Single Bolt Hole (12mm) Pressed Steel Swivel ... Read More Castor (Flexello Brand). This Wheel has an Blue Elastic Blue Rubber Tyred Wheel on a Nylon Centred with a Single Ball Bearing. The Load Capacity is 250kg using manual propulsion at 4km/h. Key Specification: Bolt Hole Size: 13mm (to suit 12mm Fixing Bolt) Overall Height: 125mm Offset: 40mm Tread width: 35mm Bearing Type: Single Ball Bearing Tyre Hardness: Shore A 65 Key Features: High Load Capacity Low Rolling Resistance Reduce Vibration Low noise Operation -

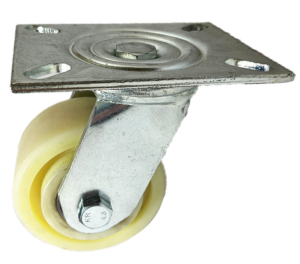

In Stock100mm Swivel Castor, 270kg Capacity | Nylon Wheel, Ball Bearing (KSMG100NYB)
£34.02100mm Top Plate Swivel Castor (Fabricated Steel) w ... Read Moreith a 4 hole top plate fitting and 105x80mm Bolt Hole Centres. This castor houses a Nylon Wheel with Ball Bearing. Load Capacity = 270kg using manual propulsion at 4km/h (walking speed), Key Specifications and Features: Top Plate Size: 140x110mm Bolt Hole Centres: Slotted 114x87mm / 97.5x71.5mm Fixing Bolt Size: 12mm Overall Height: 143mm Offset: 35mm Bearing Type: Ball Bearing Load Capacity: 270kg (manual propulsion at 4km/h) Nylon castor wheels have a high load capacity at a low cost. They are maintenance free and extremely resistant to water, salts, greases, acids and alkalis -
In Stock100mm Swivel Castor, 270kg Capacity | Nylon Wheel, Plain Bore (461NY)
£12.91100mm Top Plate Swivel Castor (Flexello 61 Series) ... Read More. The top plate measures 128x102mm and has 100/105x76/80mm Fixing Bolt Hole Centres (105X80mm). White Nylon Wheel with a 32mm Tread Width and a smooth Plain Bore. Load Capacity = 270kg The Flexello 61 Series is an established industry standard range of Pressed Steel Castors that is suitable for most industrial castor uses. This range has a ball bearing swivel head and finished with a bright zinc plating. This range has a larger top plate than most 100mm castors with the castor's top plate measuring 128x102mm. -
In Stock
100mm Swivel Castor, 270kg Capacity | Nylon Wheel, Roller Bearing (461NYB)
£13.45100mm Top Plate Swivel Castor (Flexello 61 Series) ... Read More with 105x80mm Fixing Bolt Hole Centres. White Nylon Wheel fitted with a Roller Bearing. This is a robust castor with a load Capacity of 270kg using manual propulsion at 4km/h. The Flexello 61 Series is an established industry standard range of Pressed Steel Castors that is suitable for most industrial castor uses. This range has a ball bearing swivel head and finished with a bright zinc plating. This range has a larger top plate than most 100mm castors with the castor's top plate measuring 128x102mm.
