Wheels
To order wheels of the correct size, choose the wheel diameter in millimetres. Common conversions include:2 Inch (2″) = 50mm
3 Inch (3″) = 75mm or 80mm
4 Inch (4″) = 100mm
5 Inch (5″) = 125mm
6 Inch (6″) = 150mm or 160mm
8 Inch (8″) = 20...0mm
10 Inch (10″) = 250mm
Keystone Castors & Wheels stocks the widest range of castor wheels suitable for most castor and industrial applications. We have been Castor & Wheel specialists since 1926. Whether you're looking for a replacement caster wheel or a bulk purchase of industrial wheels, we have the knowledge, experience and stock availability to assist you in making the best choice.
Because we carry a vast stock of castor wheels and trolley wheels, we can handle large orders and small orders from both domestic and business customers. Our UK Wheel stocks include many models and tyre materials, including nylon, rubber tyre, polyurethane, cast iron, polypropylene tyre, pneumatic (inflatable), and puncture-proof wheels. All these wheels can have various options for bearings: Plain Bore, Roller, Ball or Plain Bearings. Read More
- Display 15 Products per page

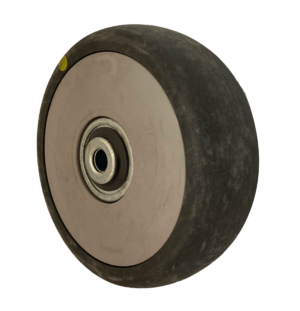

In Stock100mm Dark Grey Electro-Conductive Thermoplastic Wheel, 80kg (HPP100308X377012)
Original price was: £12.47.£6.16Current price is: £6.16.Sale!100mm dark grey electroconductive thermoplastic wh... Read Moreeel with 8mm precision ball bearings and a load capacity of 80kg. The tread width is 30mm and the hub length (the distance through the castor wheel's central bore) is 37mm.These castor wheels have an electric resistivity of <100.000 Ohm- In Stock
100mm Grey Electro-Conductive Thermoplastic Wheel, 80kg (100TPREC378)
£6.16100mm grey electroconductive thermoplastic polyure... Read Morethane wheel with 8mm precision ball bearing complete with thread guards. The load capacity of the wheel is 80kg and the tread width is 30mm.The tread has a 95 Shore A hardness and the hub length (the distance through the castor wheel's central bore) is 37mm. These castor wheels have an electric resistivity of 100.000 Ohm. - In Stock
100mm Polyurethane Tyre / Cast Iron Castor Wheel, 20mm Ball bearing, 350kg (KMW100PCBJ)
£34.93100mm Polyurethane Tyre Castor Wheel with a Cast I... Read Moreron Centre and 20mm Ball Bearings (6204-2RS), 40mm Tread width and 50mm Hub Length (the distance through the central bore).This wheel is rated to 350kg - In Stock
100mm White Nylon Wheel, 12mm Roller Bearing, 150kg (MVW100NY1B)
Original price was: £6.90.£3.10Current price is: £3.10.Sale!100mm White Nylon Castor Wheel with 12mm Roller Be... Read Morearing, 36mm Tread Width and 40mm Hub Length (the distance through the central bore). The load Load Capacity is 150kg.The 100mm wheel wheel comes with thread guards, an M12x36mm Needle Roller Bearing, a Steel Tube (12mm OD X 8mm ID x 40mm Length) and a 8mm x 59mm Bolt & nut.Without the castor wheel's tube fittings, the plain bore is 20mm. - In Stock
100mm White Nylon Wheel, 20mm Plain Bore, 150kg (MVW100NY0B)
£6.89100mm Nylon Castor Wheel with 20mm Smooth Plain Bo... Read Morere, 36mm Tread Width and 40mm Hub Length (the distance through the central bore). The load Load Capacity is 150kg. - In Stock
125mm Blue Rubber Tyre / Nylon Centre Wheel, 8mm ball bearing, 150kg (7335940)
£14.72125mm Blue Rubber Tyre on a Black Nylon Centre Cas... Read Moretor Wheel (Colson Performa) with a 32mm Tread Width, 45mm Hub Length and single 8mm Ball Bearing.This wheel comes with 2 plastic thread guards to fit the 6202RS precision bearing. Load Capacity = 150kg - In Stock
150mm Polyurethane Tyre / Nylon Centre Wheel, 20mm Roller Bearing, 600kg (WPN6KRB20)
£25.90150mm Red Polyurethane Tyre on a White Nylon Centr... Read Moree wheel (Flexello). This castor wheel has a tread width of 45mm and a hub length (the distance through the central bore) of 58mm.The wheel is fitted with a 20mm Needle Roller Bearing to reduce the rolling resistance.With a load capacity of 600kg at 4km/h (walking speed) using manual propulsion, this is one of the strongest polyurethane tyre / nylon centre wheels available. - In Stock
150mm Stair Climber with Rubber Tyre / Metal Centre Wheels, 140kg Load (STAIRCLIMBER150)
£22.17Stair Climber Castor Units are made up of three ru... Read Morebber tyre, metal centre wheels in a triangular formation housed in a 3 point 'star' shaped steel frame with a central bore fitted with a quality 20mm needle roller bearing. They can replace existing wheels on a sack truck with a 20mm axle. The hub length (distance through the central bore) of the unit is 60mm.Stair climbers are used on sack trucks to help move heavy loads up and down stairs. The load capacity of this product is 140kg. - In Stock

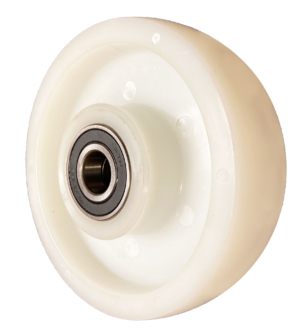

150mm White Nylon Wheel, 20mm Ball Bearing, 750kg (HPWH150NY2)
£43.38150mm White Nylon Caster Wheel with a 45mm Tread W... Read Moreidth, 58mm Bore (the distance through the central hole) and 20mm Ball Bearings. Load Capacity = 750kg - In Stock
200mm Flexello Polyurethane Tyre Wheel, 20mm Roller Bearing, 650kg (WPN8KRB20)
£38.69200mm Castor Wheel with Red Polyurethane Tyre on a... Read More White Nylon centre. 50mm Tread Width, 58mm Hub Length and 20mm Roller Bearing. Load Capacity = 650Kg - In Stock

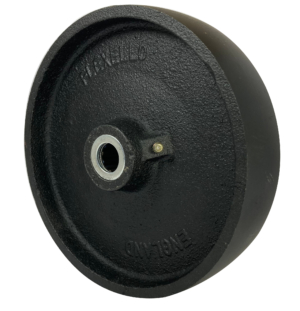

200mm High Temperature Cast Iron Wheel, 20mm Steel Roller Bearing, 1270kg (WCI8RBM20HT)
£40.48200mm High Temperature Cast Iron Castor Wheel with... Read More 45mm Tread width, 20mm Steel Roller Bearing and 60mm Hub Length (the distance through the central bore). This wheel has a steel caged roller bearing and bearing retainer enabling the wheel to withstand high temperatures of up to 200 degrees Celsius. This is a heavy duty wheel with a load capacity of this wheel is 1,270kg.Cast Iron Castor Wheels are a great choice for many rough service applications because they are strong, shock resistant and have a long working life. They have a very low tractive resistance which aids in the ease of movement and are not susceptible to picking up swarf and other floor debris which may hamper the performance of other Castor Wheel materials. - In Stock

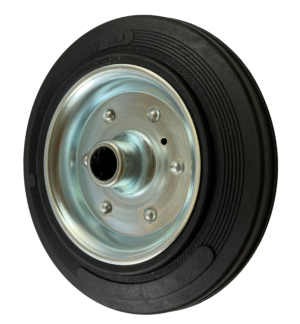

250mm Black Rubber Tyre / Pressed Steel Centre Wheel, 25mm Roller Bearing, 300kg (AW250RMB25)
£27.11250mm Black Solid Rubber Tyre on a Plated Pressed ... Read MoreSteel Centre Wheel with 25mm Roller Bearing, 60mm Tread Width and 75mm Hub length. The Load Capacity is 300kg using manual propulsion at 4km/h (walking speed).Key Features:- Wheel Tyre: Black Rubber (80 Shore A)
- Wheel Centre: Zinc-Chromium Plated Steel flanges
- Bearing: Shielded Roller Bearing
- In Stock
260mm Pneumatic Wheel | Pneumatic Tyre / Red Polypropylene Centre, 136kg, 20mm Roller Bearing (AW260PWR20)
Original price was: £16.15.£9.69Current price is: £9.69.Sale!260mm Diameter Pneumatic Wheel (1... Read More0-inch) with a Red polypropylene centre with a 20mm Roller Bearing and 75mm Hub Length (the distance through the central bore)This air-filled wheel has a robust 2-ply tyre and a load capacity of 136kg using manual propulsion at 4km/h (walking speed)Perfect for light to medium-duty applications, its rugged construction and smooth operation make it a great choice for handling loads efficiently across different terrains.Key Specifications:
- Diameter: 260mm (10 inches) including the tyre.
- Tyre Size: 3.00-4 with a 2-ply construction for added strength.
- Centre Material: Red polypropylene (plastic) for durability and lightweight performance.
- Bearing Type: 20mm roller bearing, reducing rolling resistance even under heavy loads.
- Tread Width: 85mm for enhanced stability and smooth operation.
- Hub Length: 75mm (distance through the bore), suitable for a 20mm axle shaft.
Benefits:
- Smooth Operation: Air-inflated pneumatic design ensures excellent shock absorption on uneven surfaces.
- Low Rolling Resistance: Roller bearings with steel rollers in a plastic cage provide maintenance-free performance.
- Versatile Application: Ideal for hand trucks, trolleys, and other manually propelled equipment.
- Durable & Lightweight: Polypropylene centre offers strength without adding unnecessary weight.
- In Stock

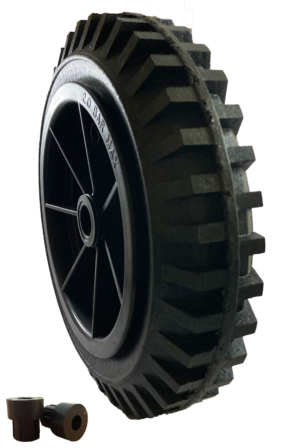

330mm Solid Rubber Tyre Wheelbarrow Wheel | Black Polypropylene Centre, 250kg, 25.4mm – 13mm Bore (WBSW330P13)
£24.58330mm diameter solid rubber wheelbarrow wheel with... Read More a black polypropylene (Plastic) centre for heavy duty applications. This heavy duty wheel is supplied with two reducing bushes that can be inserted into the 25.4 (1 inch) smooth plain bore to reduce the 25.4mm bore to 13mm. These bushes extend the wheel's hub length (distance through the wheel's central bore) from 66mm to 98mm.The tyre is made from solid rubber and has a much harder feel than a pneumatic wheel. Being solid rubber, it cannot puncture making it a great choice for environments where nails or other sharp objects are present.When replacing your wheelbarrow's front wheel, it is advised that you remove the wheel from the wheelbarrow and check the shaft size and the hub length (the distance through the central bore) before purchasing. If you have any doubts, please do not hesitate to call us or send us an email for assistance. - In Stock
80mm Red Polyurethane Tyre Wheel, 12mm Roller Bearing, 130kg (MVW080PN1B)
Original price was: £6.13.£3.37Current price is: £3.37.Sale!80mm Castor Wheel with a ... Read MoreRed Polyurethane Tyre on a Grey Nylon Centre and a 130kg Load Capacity.Key Features:- Wheel Diameter: 80mm
- Wheel Tread Width: 32mm
- Hub Length: 40mm (the distance through the central bore)
- Wheel Material: Red Polyurethane Tyre on a Grey Nylon Centre
- Bearing Type: Roller Bearing
- Shore Hardness: 95A
- Load Rating: 130kg (using manual propulsion at 4km/h)
- Metal Thread guards,
- M12x36mm Needle Roller Bearing,
- a Steel Tube (12mm OD X 8mm ID x 40mm Length); and,
- a 8mm x 59mm Bolt & Nut.
