Pneumatic Wheels
Pneumatic trolley wheels have some typical sizes shown on the side of the tyre. These translate to the following wheel sizes:- 2.50-4 or 2.05 x 4 = 220mm
- 3.00-4 or 3.00 x 4 = 260mm
- 4.00-4 or 4.00 x 4 = 300mm
- 3.50-8 or 3.50 x 8 = 360mm or 370mm
- ...4.00-8 or 4.00 x 8 = 400mm
Pneumatic wheel prices vary based on the material used for the wheel's centre (Polypropylene or Steel), type of bearing (plain, ball, or roller), and load capacity.
Pneumatic Wheels are inflated rubber tyres, used in castor frames or trolleys, carts, sack trucks and other transport equipment. Their soft tyres make them exceptionally kind on floors, and they provide great operator comfort, with lower rolling resistance on uneven surfaces, protecting transportation units from shock impact loads.
Maximum load capacity of pneumatic wheels is given for speeds of no more than 4km/h. Higher speeds will reduce the wheel’s load capacity. Our pneumatic trolley wheels have capacities from 75kg - 150kg.
Choose wheel centres appropriate for your application:
- Pneumatic Tyre on Polypropylene: lightweight & chemical-resistant
- Pneumatic Tyre on Pressed Steel: enhanced strength and load-bearing capacity.
Pneumatic trolley wheels are susceptible to punctures. If this is a problem, the solution may be to use a puncture-proof wheel, which has a similar appearance to a pneumatic rubber tyre, but is actually made from high-quality micro-cellular Polyurethane.
Can't find it? We'll probably have it...call us on 0121 772 1010 for support. Read More
- Display 15 Products per page
In Stock260mm Pneumatic Wheel | Pneumatic Tyre / Red Polypropylene Centre, 136kg, 20mm Roller Bearing (AW260PWR20)
Original price was: £16.15.£9.69Current price is: £9.69.Sale!260mm Diameter Pneumatic Wheel (1... Read More0-inch) with a Red polypropylene centre with a 20mm Roller Bearing and 75mm Hub Length (the distance through the central bore)This air-filled wheel has a robust 2-ply tyre and a load capacity of 136kg using manual propulsion at 4km/h (walking speed)Perfect for light to medium-duty applications, its rugged construction and smooth operation make it a great choice for handling loads efficiently across different terrains.Key Specifications:
- Diameter: 260mm (10 inches) including the tyre.
- Tyre Size: 3.00-4 with a 2-ply construction for added strength.
- Centre Material: Red polypropylene (plastic) for durability and lightweight performance.
- Bearing Type: 20mm roller bearing, reducing rolling resistance even under heavy loads.
- Tread Width: 85mm for enhanced stability and smooth operation.
- Hub Length: 75mm (distance through the bore), suitable for a 20mm axle shaft.
Benefits:
- Smooth Operation: Air-inflated pneumatic design ensures excellent shock absorption on uneven surfaces.
- Low Rolling Resistance: Roller bearings with steel rollers in a plastic cage provide maintenance-free performance.
- Versatile Application: Ideal for hand trucks, trolleys, and other manually propelled equipment.
- Durable & Lightweight: Polypropylene centre offers strength without adding unnecessary weight.
- In Stock
Castor Wheel 200mm | Pneumatic Tyre / Metal Centre, 75kg, 20mm Roller Bearing (AW200PNB)
£19.80200mm Rib Tread Pneumatic Wheels on a Steel Cen... Read Moretre with 20mm Roller Bearing. The Load Capacity is 75kg at 4km/h (walking speed) using manual propulsion
- *This wheel has a 8 Inch Outside Diameter (including the tyre) sized 200x50 with a 2 ply tyre thickness making it a strong Light-medium duty wheel.
- *Suitable for a 20mm axle shaft
- In Stock

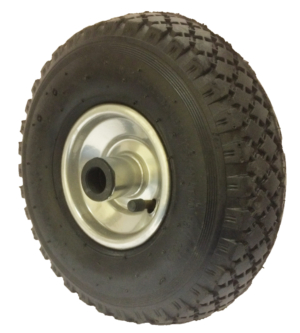

Castor Wheel 260mm | Pneumatic Tyre / Metal Centre, 150kg, 20mm Roller Bearing (AW260PNB)
Original price was: £24.70.£17.29Current price is: £17.29.Sale!This 260mm (10 inch) Pneumatic Wheel (3.00-4) has ... Read Moreblack rubber tyre with a Diamond pattern tread on a Pressed Steel Centre. The wheel rotates on a 20mm Needle Roller Bearing. The load capacity is 150kg at 4km/h using manual propulsion- *This wheel is sized 3.00-4 with a 2 ply tire thickness making it a strong Light-Medium duty wheel.
- *Though it has a 10" diameter, it is also commonly referred to as a 260mm wheel.
- *Suitable for a 20 axle shaft
- In Stock
Pneumatic Wheel 220mm | Pneumatic Tyre / Red Polypropylene Centre, 100kg, 20mm Plain Bore (PWP220PB20)
£18.15220mm Black Pneumatic Rubber Tyre / Red Polypropyl... Read Moreene Centre Wheel (2.50-4). This small pneumatic castor wheel has a 4 Ply rating tyre with LUG tread, 73mm Hub Length and 20mm Plain Bore. Load Capacity = 100kg.Pneumatic Wheels are rubber tyres that are inflated with air. They are used in either a castor frame or mobile handling equipment such as garden trolleys, carts, sack trucks and other transport equipment. Being a very soft tyre they exceptionally kind on floors and provide great operator comfort. Pneumatic castor wheels have a bit of bounce which lowers the rolling resistance on uneven surfaces. Therefore, they protect the transportation unit from much of the impacts from bumpy surfaces. - In Stock
Pneumatic Wheel 220mm | Pneumatic Tyre / Red Polypropylene Centre, 100kg, 20mm Roller Bearing (PWP220RB20)
£20.72220mm Black Pneumatic Rubber Tyre / Red Polypropyl... Read Moreene Centre Wheel (2.50-4). 4 Ply rating tyre with LUG tread, 73mm Hub Length and 20mm Roller Bearing. Load Capacity = 100kg - In Stock
Pneumatic Wheel 220mm | Pneumatic Tyre / Red Polypropylene Centre, 100kg, 25.4mm Plain Bore (PWP220PB1)
£18.15220mm Black Pneumatic Rubber Tyre / Red Polypropyl... Read Moreene Centre Wheel (2.50-4). This small pneumatic castor wheel has a 4 Ply rating tyre with LUG tread, 73mm Hub Length and 25.4mm (1 inch) Plain Bore. Load Capacity = 100kg.Pneumatic Wheels are rubber tyres that are inflated with air. They are used in either a castor frame or mobile handling equipment such as garden trolleys, carts, sack trucks and other transport equipment. Being a very soft tyre they exceptionally kind on floors and provide great operator comfort. Pneumatic castor wheels have a bit of bounce which lowers the rolling resistance on uneven surfaces. Therefore, they protect the transportation unit from much of the impacts from bumpy surfaces. - In Stock
Pneumatic Wheel 220mm | Pneumatic Tyre / Red Polypropylene Centre, 100kg, 25.4mm Roller Bearing (PWP220RB1)
£20.72220mm Black Pneumatic Rubber Tyre / Red Polypropyl... Read Moreene Centre Wheel (2.50-4). This small pneumatic castor wheel has a 4 Ply rating tyre with LUG tread, 73mm Hub Length and 25.4mm (1 inch) Roller Bearing. Load Capacity = 100kg.Pneumatic Wheels are rubber tyres that are inflated with air. They are used in either a castor frame or mobile handling equipment such as garden trolleys, carts, sack trucks and other transport equipment. Being a very soft tyre they exceptionally kind on floors and provide great operator comfort. Pneumatic castor wheels have a bit of bounce which lowers the rolling resistance on uneven surfaces. Therefore, they protect the transportation unit from much of the impacts from bumpy surfaces. - In Stock
Pneumatic Wheel 220mm | Pneumatic Tyre / Red Polypropylene Centre, 100kg, 25mm Plain Bore (PWP220PB25)
£18.15220mm Black Pneumatic Rubber Tyre / Red Polypropyl... Read Moreene Centre Wheel (2.50-4). This small pneumatic castor wheel has a 4 Ply rating tyre with LUG tread, 73mm Hub Length and 25mm Plain Bore. Load Capacity = 100kg.Pneumatic Wheels are rubber tyres that are inflated with air. They are used in either a castor frame or mobile handling equipment such as garden trolleys, carts, sack trucks and other transport equipment. Being a very soft tyre they exceptionally kind on floors and provide great operator comfort. Pneumatic castor wheels have a bit of bounce which lowers the rolling resistance on uneven surfaces. Therefore, they protect the transportation unit from much of the impacts from bumpy surfaces. - In Stock
Pneumatic Wheel 220mm | Pneumatic Tyre / Red Polypropylene Centre, 100kg, 25mm Roller Bearing (PWP220RB25)
£20.72220mm Black Pneumatic Rubber Tyre / Red Polypropyl... Read Moreene Centre Wheel (2.50-4). This small pneumatic castor wheel has a 4 Ply rating tyre with LUG tread, 73mm Hub Length and 25mm Roller Bearing. Load Capacity = 100kg.Pneumatic Wheels are rubber tyres that are inflated with air. They are used in either a castor frame or mobile handling equipment such as garden trolleys, carts, sack trucks and other transport equipment. Being a very soft tyre they exceptionally kind on floors and provide great operator comfort. Pneumatic castor wheels have a bit of bounce which lowers the rolling resistance on uneven surfaces. Therefore, they protect the transportation unit from much of the impacts from bumpy surfaces. - In Stock
Pneumatic Wheel 260mm | Pneumatic Tyre / Black Polypropylene Centre, 120kg, 25.4mm Roller Bearing (PWR300-425.4/634/52B)
£26.97260mm Black Pneumatic Rubber Tyre / Black Polyprop... Read Moreylene Centre 4PR Wheel with 1 inch (25.4mm) Roller Bearing. Load Capacity = 120kg - In Stock
Pneumatic Wheel 260mm | Pneumatic Tyre / Metal Centre, 150kg, 20mm Roller Bearing (26220R)
£45.18260mm Pneumatic Wheels with Zig-Zag Tread on a Pre... Read Moressed Steel Centre which has been zinc-plated and blue passivated (Cr6 free) for corrosion resistance. This wheel has a 20mm with Roller Bearing and a Load Capacity of 150kg at 4km/h using manual propulsion.- This wheel has a 10 Inch Outside Diameter (including the tyre) size 260x85 / 3.00-4 with a 2 ply tyre thickness making it a strong Light-medium duty wheel
- Suitable for a 20mm axle shaft
- Particularly gentle on floors and has quiet operation
- In Stock
Pneumatic Wheel 260mm | Pneumatic Tyre / Metal Centre, Offset Hub, 16mm Ball Bearings (PN260RM16BJ54)
Original price was: £29.09.£13.67Current price is: £13.67.Sale!260mm Black Pneumatic Rubber Tyre / Silver Metal C... Read Moreentre Sack Truck Wheel (4.10/3.50-4). 2 Ply rating tyre with Block tread, 54mm Offset Hub Length and 16mm Ball Bearings. Load Capacity = 136kg - In Stock
Pneumatic Wheel 260mm | Pneumatic Tyre / Metal Centre, Offset Hub, 16mm Ball Bearings (PN260RM16BJ56)
Original price was: £25.69.£12.85Current price is: £12.85.Sale!260mm Black Pneumatic Rubber Tyre on a Silver Meta... Read Morel Centre Sack Truck Wheel (4.10/3.50-4). 4 Ply rating tyre with Block tread, 56mm Offset Hub Length and 16mm Ball Bearings. Load Capacity = 120kg - In Stock
Pneumatic Wheel 260mm | Pneumatic Tyre / Red Polypropylene Centre, 120kg, 20mm Plain Bore (PWP260PB20)
£18.06260mm Black Pneumatic Rubber Tyre on a Red Polypro... Read Morepylene Centre Wheel (3.00-4). 4-Ply rating tyre with Diamond tread. This wheel as a 73mm Hub Length and a 20mm Plain Bore with a Load Capacity of 120kg using manual propulsion at 4km/h (walking speed).Pneumatic Wheels are rubber tyres that are inflated with air. They are used in either a castor frame or mobile handling equipment such as garden trolleys, carts, sack trucks and other transport equipment. Being a very soft tyre they exceptionally kind on floors and provide great operator comfort. Pneumatic castor wheels have a bit of bounce which lowers the rolling resistance on uneven surfaces. Therefore, they protect the transportation unit from much of the impacts from bumpy surfaces. - In Stock
Pneumatic Wheel 260mm | Pneumatic Tyre / Red Polypropylene Centre, 120kg, 20mm Roller Bearing (PWP260RB20)
£21.65260mm Black Pneumatic Rubber Tyre on a Red Polypro... Read Morepylene Centre Wheel (3.00-4). 4-Ply rating tyre with Diamond tread. This wheel has a 73mm Hub Length and a 20mm Roller Bearing. with a Load Capacity of 120kg using manual propulsion at 4km/h (walking speed)Pneumatic Wheels are rubber tyres that are inflated with air. They are used in either a castor frame or mobile handling equipment such as garden trolleys, carts, sack trucks and other transport equipment. Being a very soft tyre they exceptionally kind on floors and provide great operator comfort. Pneumatic castor wheels have a bit of bounce which lowers the rolling resistance on uneven surfaces. Therefore, they protect the transportation unit from much of the impacts from bumpy surfaces.
