Wheels
Keystone Castors & Wheels stocks the widest range of castor wheels suitable for most castor and industrial applications. We have been Castor & Wheel specialists since 1926. Whether you're looking for a replacement caster wheel or a bulk purchase of industrial wheels we have the knowledge, experience and stock availability to assis...t you in making the best choice.Browse Keystone wheels online for a Industrial wheel suitable for Material Handling Trolleys , Industrial carts, Sack Trucks , Pneumatic Wheel applications, V Groove Rail wheels, Flange Rail wheels, Machine Wheels and Drive Wheels or call one our our experienced Technical Sales team for help you make your selection.
Because we carry vast stock of caster and trolley wheels we can handle large orders and small orders from both domestic and business customers. Our UK Castor & Wheel stocks include many models. Including nylon, rubber tyre, polyurethane, cast iron, polypropylene tyre , pneumatic (inflatable), puncture proof wheels (flat free wheels). All these castor wheels can have various options for bearings: Roller, Ball or Plain Bearings.
About Caster Wheel Bearings
The type of bearing used in a castor wheel affects the running properties of it and therefore the mobility of the unit they are fitted to:
Plain Bore Bearings (Plain Bore)
This is the most economical type of bearing. In fact, there isn't one. The wheel turns around an axle tube. They are great if the equipment they are attached to does not have to move much and when it does without a great deal of weight on it. Under normal circumstances, they are maintenance free and corrosion resistant.
Revvo PT Designer industrial wheels are available with a keyway.
Roller Bearings
This type has a series of steel rollers within a cage. The rollers rotate between the axle tube and the wheel hub. Using these bearings means that the rolling resistance of the bearing is very small, even under heavy load. This type of bearing is the most commonly used especially for transportation equipment. They are robust and generally maintenance free. Please note, in stainless steel castors the rollers are stainless steel and in high temperature wheels, the cage is made from steel.
Ball Bearings
Castor wheel ball bearings consist of a stamped sheet metal housing enclosing an inner and outer ring. The ball bearings run between these two rings. This type of bearing has excellent running properties even under very heavy loads and at high speeds. Because the bearings are sealed, these bearings do not need to be lubricated. This is the engineers choice for apparatus castors and heavy duty casters in most applications. Read More
- Display 15 Products per page
Out of Stock - On the WayCastor Wheel 100mm | Nylon, 180kg, 15mm Ball bearing (KW100NYBJ)
£11.77100mm Nylon Wheel with 15mm Ball Journal. Load Capacity = 180kg- In Stock
Pallet Roller, 85mm X 90mm, Nylon, 20mm Ball Bearing, 800kg (KR8590NYB)
£19.8385mm X 90mm White Nylon Pallet Roller with 20mm Ba... Read Morell Bearings. Load Capacity = 800kg - In Stock
High Temperature Wheel 100mm | Phenolic Resin, 240kg, 8mm Ball bearing (B100FR240B845HT)
£41.64100mm Phenolic Wheel with 8mm Ball Journal. Suitab... Read Morele for high temperatures to +300 Deg C. Load Capacity = 240kg - In Stock

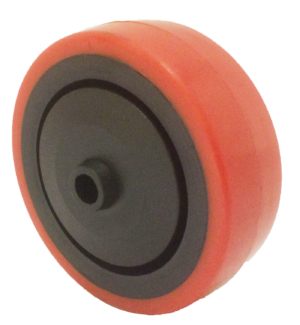

Castor Wheel 80mm | Polyurethane Tyre / Nylon Centre, 100kg, 8mm Ball Bearing (AW080NPB)
£10.9480mm Castor Wheel with an Orange Polyurethane Tyre... Read More on a black Nylon Centre. This wheel has a 25mm Tread Width, 8mm Single Ball Bearing and 39mm Hub length (the distance through the central bore). The load capacity is 100kg - In Stock
Castor Wheel 150mm | Rubber Tyre / Cast Iron Centre, 400kg, 20mm Plain Bore (WRT6M20)
£28.53150mm Black rubber tyre on a black painted cast ir... Read Moreon centre castor wheel with 45mm tread width, 60mm hub length and 20mm smooth plain pore. Load Capacity = 400kg - In Stock

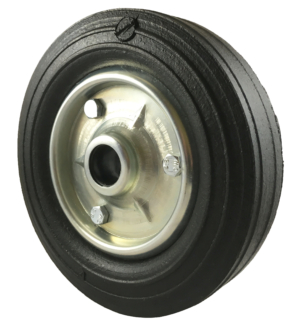

Rubber Tyre Wheel 200mm | Black Rubber Tyre / Silver Metal Centre, 250kg, 25.4mm Plain Bore (NSS20025.4/51SIL)
£16.31200mm Black Solid Rubber Tyre on a Silver Metal Ce... Read Morentre Wheel with 25.4mm (1 inch)Smooth Plain Bore, 50mm Tread Width and 51mm Hub Length (the distance through the central bore). Load Capacity = 250kg - In Stock
Guide Roller, 50mm X 15mm, Polyurethane Tyre, 10mm Ball Bearing, 110kg (KGR5015PTSTB10)
£29.6950mm Guide Roller with a 15mm Tread Width with a s... Read Moreingle 10mm shielded ball bearing (6000ZZ). The wheel's tyre is polyurethane (91 Shore A Hardness) on a steel centre with a Load Capacity of 110kg. - In Stock
Pallet Roller, 82mm X 100mm, Nylon, 20mm Ball Bearing, 900kg (KR82100NYB)
£15.6782mm X 100mm White Nylon Pallet Roller with 20mm B... Read Moreall Bearings. Load Capacity = 900kg. This pallet roller has an wheel diameter of 82mm and a tread width of 100mm. - In Stock
Puncture Proof Wheel 300mm | Puncture Proof Tyre / Red Polypropylene Centre, 150kg, 25mm Roller Bearing (PP300RPB25D)
£52.04300mm Puncture Proof Wheel (Micro-Cellular Polyure... Read Morethane) with a Diamond Tread on a Red Polypropylene Centre. This Wheel has a 25mm Roller Bearing, 100mm Tread Width, 73mm Hub Length, and 150kg Load Capacity - In Stock
Rubber Tyre Trolley/Sack Truck Wheel 160mm | Black Rubber Tyre / Red Polypropylene (Plastic) Centre, 150kg, 25.4mm Plain Bore (EPR16025.4/51RED)
£5.39160mm Black Solid Rubber Tyre wheel on a Red Polyp... Read Moreropylene (Plastic) Centre with a 25.4mm (1 Inch) Plain Bore. Load Capacity = 150kgThis wheel is suitable for use as a trolley or cart wheel, sack truck wheel, castor wheel or anywhere where the axle the wheel is being fitted onto has a 1 Inch (25.4mm) diameter. - In Stock
Designer Polyurethane Tyre Wheel 200mm | Polyurethane Tyre / Cast Iron, 1000kg, 25mm Plain Bore Keywayed (20040PTU25)
£123.29200mm Polyurethane (Extra Heavy Duty) Tyre on a... Read More Cast Iron Centre Wheel with 40mm Tread Width, 25mm Keyway Plain Bore and 50mm Hub Length.
This is a high performance wheel using premium grade REVVOTHANE polyurethane which is a high quality tyre with a high load bearing capacity, minimal heat build up and a high abrasion resistance. This wheel is often used in conveyor and transportation systems.
The Load capacity quoted is for operation under ideal conditions where the wheel operates infrequently and on a smooth surface. The wheel's load capacity must be reduced as indicated for any of the following conditions. Please note that these are cumulative if more than one condition exists:
- Reduce load by 25% if continuous use for more than 45 minutes.
- Reduce Load by further 30% if used as Drive Wheel.
- Reduce load by further 30% if used at speeds greater than 6kp/h.
- In Stock
Puncture Proof Wheel 300mm | Puncture Proof Tyre / Red Polypropylene Centre, 150kg, 20mm Plain Bore (PP300RP20D)
£48.65300mm Puncture Proof Wheel (Micro-Cellular Polyure... Read Morethane) with a Diamond Tread on a Red Polypropylene Centre. This Wheel has a 20mm Plain Bore, 100mm Tread Width, 76mm Hub Length, and 150kg Load Capacity - In Stock

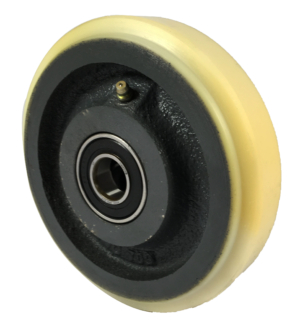

Designer Polyurethane Tyre Wheel 150mm | Polyurethane Tyre / Cast Iron, 700kg, 20mm Ball Bearing (15035PT220)
£138.83150mm Polyurethane Tyred (Premium Grade Revvothane... Read More) on a Cast Iron Centre Wheel with 20mm Ball Bearing.This is a high performance wheel using premium grade REVVOTHANE polyurethane which is a high quality tyre with a high load bearing capacity, minimal heat build up and a high abrasion resistance. This wheel is often used in conveyor and transportation systems.The Load capacity quoted is for operation under ideal conditions where the wheel operates infrequently and on a smooth surface. The wheel's load capacity must be reduced as indicated for any of the following conditions. Please note that these are cumulative if more than one condition exists:- Reduce load by 25% if continuous use for more than 45 minutes.
- Reduce Load by further 30% if used as Drive Wheel.
- Reduce load by further 30% if used at speeds greater than 6kp/h.
- In Stock
Castor Wheel 75mm | Polyurethane Tyre / Cast Iron Centre, 300kg, 12mm Plain Bore (07535PT012)
£43.9275mm Polyurethane (Premium Grade REVVOTHANE) Tyre ... Read Moreon a Cast Iron Centre Wheel running on 12mm smooth plain bore. This is high performance industrial wheel and the stated load capacity of 300kg is based on the wheel being manually propelled at 4 km/h (walking speed).As a high performance wheel it can be used in more demanding applications than a standard polyurethane tyre castor wheel could be:As with all polyurethane tyre wheels, extended periods of use or speeds greater 4 km/h will result in surface friction. This friction generates heat that builds up in the polyurethane that will cause a standard polyurethane tyre to de-bond from the cast iron. REVVOTHANE is a very high quality polyurethane that offers minimal heat build up and performs exceptionally well within the following guidelines:- If the wheel be in continual use for more than 45 minutes, this reduces the load capacity by 25%.
- The load capacity is reduced by a further 30% if used as Drive Wheel
- Reduce load by further 20% if the running speed is between 6 km/h and 10 km/h
- Reduce the load by a further 30% if the running speed is between 10 km/h and 16 km/h
- In Stock
Castor Wheel, 150mm | Nylon, 520kg Capacity, 20mm Roller Bearing (WNY6RBM20)
£20.84150mm White Nylon Castor Wheel with 20mm Roller Be... Read Morearing. Load Capacity = 520kgKey Specifications:- Tread Width: 38mm
- Hub Length: 60mm
- Wheel Material: White Nylon
- Bearing Type: Roller bearing
- Bore: 20mm
