Wheels
Keystone Castors & Wheels stocks the widest range of castor wheels suitable for most castor and industrial applications. We have been Castor & Wheel specialists since 1926. Whether you're looking for a replacement caster wheel or a bulk purchase of industrial wheels we have the knowledge, experience and stock availability to assis...t you in making the best choice.Browse Keystone wheels online for a Industrial wheel suitable for Material Handling Trolleys , Industrial carts, Sack Trucks , Pneumatic Wheel applications, V Groove Rail wheels, Flange Rail wheels, Machine Wheels and Drive Wheels or call one our our experienced Technical Sales team for help you make your selection.
Because we carry vast stock of caster and trolley wheels we can handle large orders and small orders from both domestic and business customers. Our UK Castor & Wheel stocks include many models. Including nylon, rubber tyre, polyurethane, cast iron, polypropylene tyre , pneumatic (inflatable), puncture proof wheels (flat free wheels). All these castor wheels can have various options for bearings: Roller, Ball or Plain Bearings.
About Caster Wheel Bearings
The type of bearing used in a castor wheel affects the running properties of it and therefore the mobility of the unit they are fitted to:
Plain Bore Bearings (Plain Bore)
This is the most economical type of bearing. In fact, there isn't one. The wheel turns around an axle tube. They are great if the equipment they are attached to does not have to move much and when it does without a great deal of weight on it. Under normal circumstances, they are maintenance free and corrosion resistant.
Revvo PT Designer industrial wheels are available with a keyway.
Roller Bearings
This type has a series of steel rollers within a cage. The rollers rotate between the axle tube and the wheel hub. Using these bearings means that the rolling resistance of the bearing is very small, even under heavy load. This type of bearing is the most commonly used especially for transportation equipment. They are robust and generally maintenance free. Please note, in stainless steel castors the rollers are stainless steel and in high temperature wheels, the cage is made from steel.
Ball Bearings
Castor wheel ball bearings consist of a stamped sheet metal housing enclosing an inner and outer ring. The ball bearings run between these two rings. This type of bearing has excellent running properties even under very heavy loads and at high speeds. Because the bearings are sealed, these bearings do not need to be lubricated. This is the engineers choice for apparatus castors and heavy duty casters in most applications. Read More
- Display 15 Products per page
In StockPneumatic Wheel 300mm | Pneumatic Tyre / Red Polypropylene Centre, 150kg, 25.4mm Roller Bearing (PWP300RB1)
£31.77300mm Black Pneumatic Rubber Tyre / Red Polypropyl... Read Moreene Centre Wheel (4.00-4). This pneumatic castor wheel has a 4 Ply rating tyre with Diamond tread, 73mm Hub Length and 1 inch (25.4mm) Roller Bearing. Load Capacity = 150kg.Pneumatic Wheels are rubber tyres that are inflated with air. They are used in either a castor frame or mobile handling equipment such as garden trolleys, carts, sack trucks and other transport equipment. Being a very soft tyre they exceptionally kind on floors and provide great operator comfort. Pneumatic castor wheels have a bit of bounce which lowers the rolling resistance on uneven surfaces. Therefore, they protect the transportation unit from much of the impacts from bumpy surfaces.- In Stock

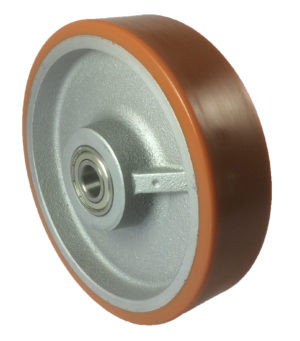

Castor Wheel 250mm | Polyurethane Tyre / Cast Iron Centre, 1400kg, 25mm Ball bearing (AW250PCB)
£100.43250mm Polyurethane Tyred / Cast Iron Centre Wheel ... Read Morewith 25mm Ball bearing. Load Capacity = 1400kg - In Stock
Puncture Proof Wheel 400mm | Puncture Proof Tyre / Red Steel Centre, 200kg, 35mm Plain Bore (PP400RS0)
£89.21400mm Puncture Proof Wheel (Micro-Cellular Polyure... Read Morethane) on a Red Steel Centre. This size wheel is often referred to as a 16" or 16 Inch Wheel and has a 35mm Plain Bore, 100mm Tread Width, 63mm Hub Length, and 200kg Load Capacity - In Stock
Castor Wheel 100mm | Polyurethane Tyre / Nylon Centre, 200kg, 12mm Roller Bearing (KW100PNB1240)
£9.61100mm Red Polyurethane Tyre Castor Wheel with a Wh... Read Moreite Nylon Centre and 12mm Needle Roller Bearing, 35m Tread Width and 40mm Hub Length (the distance through the central bore / hole). The Load Capacity of with wheel is 200kg. - In Stock
Designer Polyurethane Tyre Wheel 300mm | Polyurethane Tyre / Cast Iron, 2800kg, 50mm Plain Bore Keywayed (30075PTU50)
£401.96300mm Polyurethane (Premium Grade REVVOTHANE) T... Read Moreyred / Cast Iron Centre Wheel with 50mm Keywayed Plain Bore. This is a high performance wheel using premium grade REVVOTHANE polyurethane which is a high quality tyre with a high load bearing capacity, minimal heat build up and a high abrasion resistance. This wheel is often used in conveyor and transportation systems.
The Load capacity quoted is for operation under ideal conditions where the wheel operates infrequently and on a smooth surface. The wheel's load capacity must be reduced as indicated for any of the following conditions. Please note that these are cumulative if more than one condition exists:
- Reduce load by 25% if continuous use for more than 45 minutes.
- Reduce Load by further 30% if used as Drive Wheel.
- Reduce load by further 30% if used at speeds greater than 6kp/h.
- In Stock
Puncture Proof Wheel 400mm | Puncture Proof Tyre / Red Polypropylene Centre, 200kg, 25mm Plain Bore (PP400RP25D)
£79.67400mm Puncture Proof Wheel (Micro-Cellular Polyure... Read Morethane) with a Block Tread on a Red Polypropylene Centre. This size wheel is often referred to as a 16" or 16 Inch Wheel and has a 25mm Plain Bore, 100mm Tread Width, 66mm Hub Length, and 200kg Load Capacity - In Stock

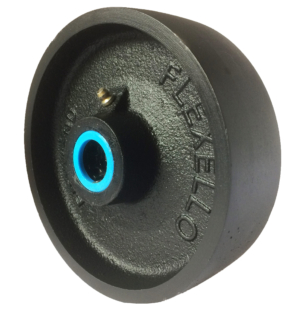

Castor Wheel 200mm | Cast Iron, 1270kg, 20mm Roller Bearing (WCI8RBM20)
£40.46200mm Castor Wheel Cast Iron (Flexello Brand) comp... Read Morelete with grease nipple. This Cast Iron Wheel has a 45mm Tread Width, 60mm Hub Length (the distance through the central bore) and a 20mm Needle Roller Bearing. The Load Capacity is 1270kgCast Iron Wheels are a great choice for many rough service applications because they are strong, shock resistant and have a long working life. They have a very low tractive resistance which aids in the ease of movement and are not susceptible to picking up swarf and other floor debris which may hamper the performance of other Castor Wheel materials. - In Stock
Castor Wheel 150mm | Nylon, 800kg, 20mm Ball Bearing (150NY2H)
£62.17150mm Nylon Wheel with 20mm Ball Bearing. Load Capacity = 800kg - In Stock
Puncture Proof Wheel 400mm | Puncture Proof Tyre / Red Polypropylene Centre, 200kg, 25mm Roller Bearing (PP400RPB25D)
£77.80400mm Puncture Proof Wheel (Micro-Cellular Polyure... Read Morethane) with a Block Tread on a Red Polypropylene Centre. This size wheel is often referred to as a 16" or 16 Inch Wheel and has a 25mm Roller Bearing, 100mm Tread Width, 63mm Hub Length, and 200kg Load Capacity - In Stock
Puncture Proof Wheel 300mm | Puncture Proof Tyre / Red Steel Centre, 150kg, 25mm Plain Bore (PP300RS25D)
£61.08300mm Puncture Proof Wheel (Micro-Cellular Polyure... Read Morethane) on a Red Steel Centre. This Wheel has a 25mm Plain Bore, 100mm Tread Width, 68mm Hub Length, and 150kg Load Capacity - Out of Stock - On the Way
150mm Polyurethane Tyre / Nylon Centre Wheel, 20mm Roller Bearing, 600kg (WPN6KRB20)
£25.90150mm Red Polyurethane Tyre on a White Nylon Centr... Read Moree wheel (Flexello). This castor wheel has a tread width of 45mm and a hub length (the distance through the central bore) of 58mm.The wheel is fitted with a 20mm Needle Roller Bearing to reduce the rolling resistance.With a load capacity of 600kg at 4km/h (walking speed) using manual propulsion, this is one of the strongest polyurethane tyre / nylon centre wheels available. - In Stock
Castor Wheel 100mm | Rubber Tyre / Nylon Centre, 160kg, 15mm Plain Bore (WRN4M15)
£13.77100mm Blue Elastic Rubber Tyre on a Nylon Centr... Read Moree wheel with 15mm Smooth Plain Bore. Load Capacity = 160kg
Blue Elastic Rubber offers a higher load capacity over standard grey or black rubber tyres and will not mark floors.
- In Stock
Castor Wheel 125mm | Blue Rubber Tyre / Nylon Centre, 230kg, 12mm Roller Bearing (KUER1253612BLUE)
£11.16125mm Castor Wheel with a blue elastic rubber tyre... Read More on a black nylon centre and a 12mm Roller Bearing.This wheel has a 36mm tread width, 45mm Hub Length and a Load Capacity of 230kg using manual propulsion at 4km/h.It is industry standard to measure the treat width at the point where the tyre meets the nylon centre. This wheel tapers in and the tyre's contact area with the floor is 26mm.The Blue Elastic Rubber offers a higher load capacity over standard grey or black rubber tyres and will not mark floors. Furthermore, it provides a cushioning effect that helps absorb rolling vibrations which makes it quieter and more comfortable for the user. - In Stock
Castor Wheel 150mm | Cast Iron, 600kg, 20mm Ball bearing (15020441)
£24.29150mm Cast Iron Wheel with 20mm Ball Bearing. Load Capacity = 600kg - In Stock
Guide Roller, 70mm X 25mm, Polyurethane Tyre, 20mm Ball Bearing, 75kg (KGR7025PTB20)
£16.0070mm Guide Roller with a 25mm Tread Width with a s... Read Moreingle 20mm shielded ball bearing (6204ZZ). The guide wheel's tyre is polyurethane (92 Shore A Hardness) with a Load Capacity of 75kg.
